Main Relay (Computer/Fuel System): Diagrams

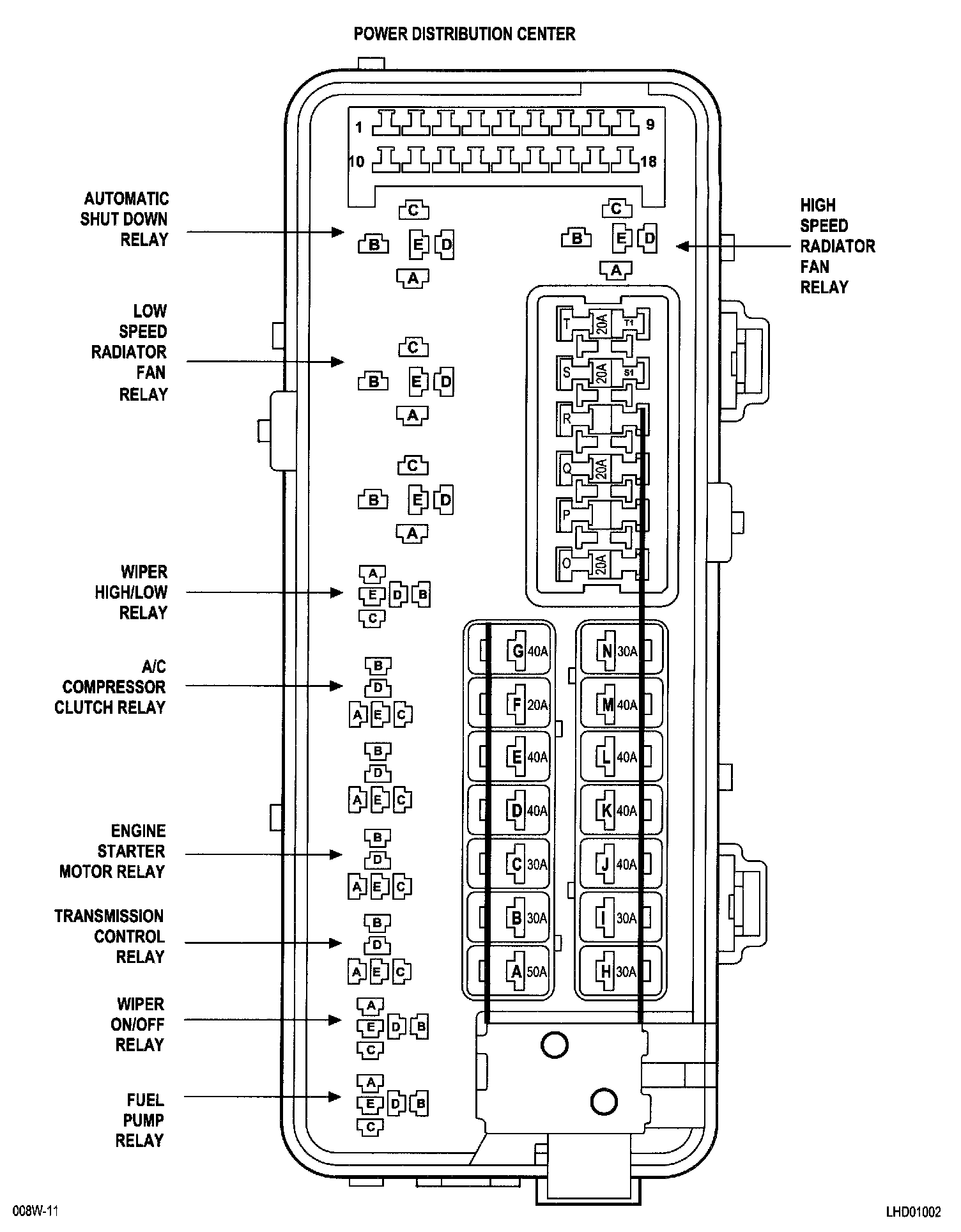

Power Distribution Center:

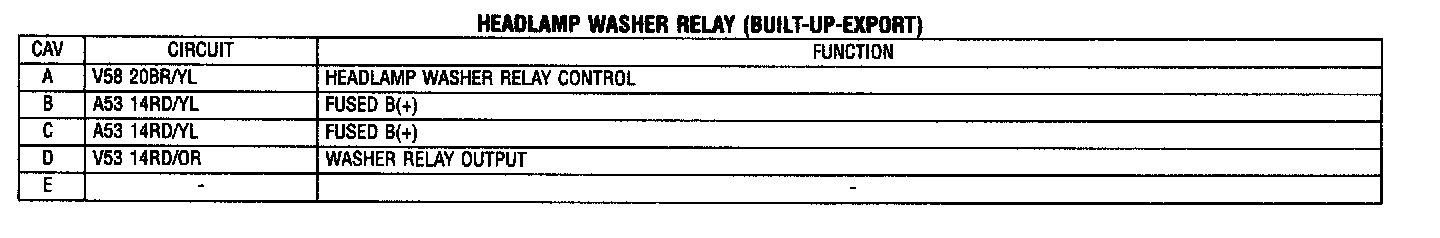

Headlamp Washer Relay (Built-Up-Export):
