Checking the Throttle Position Sensor

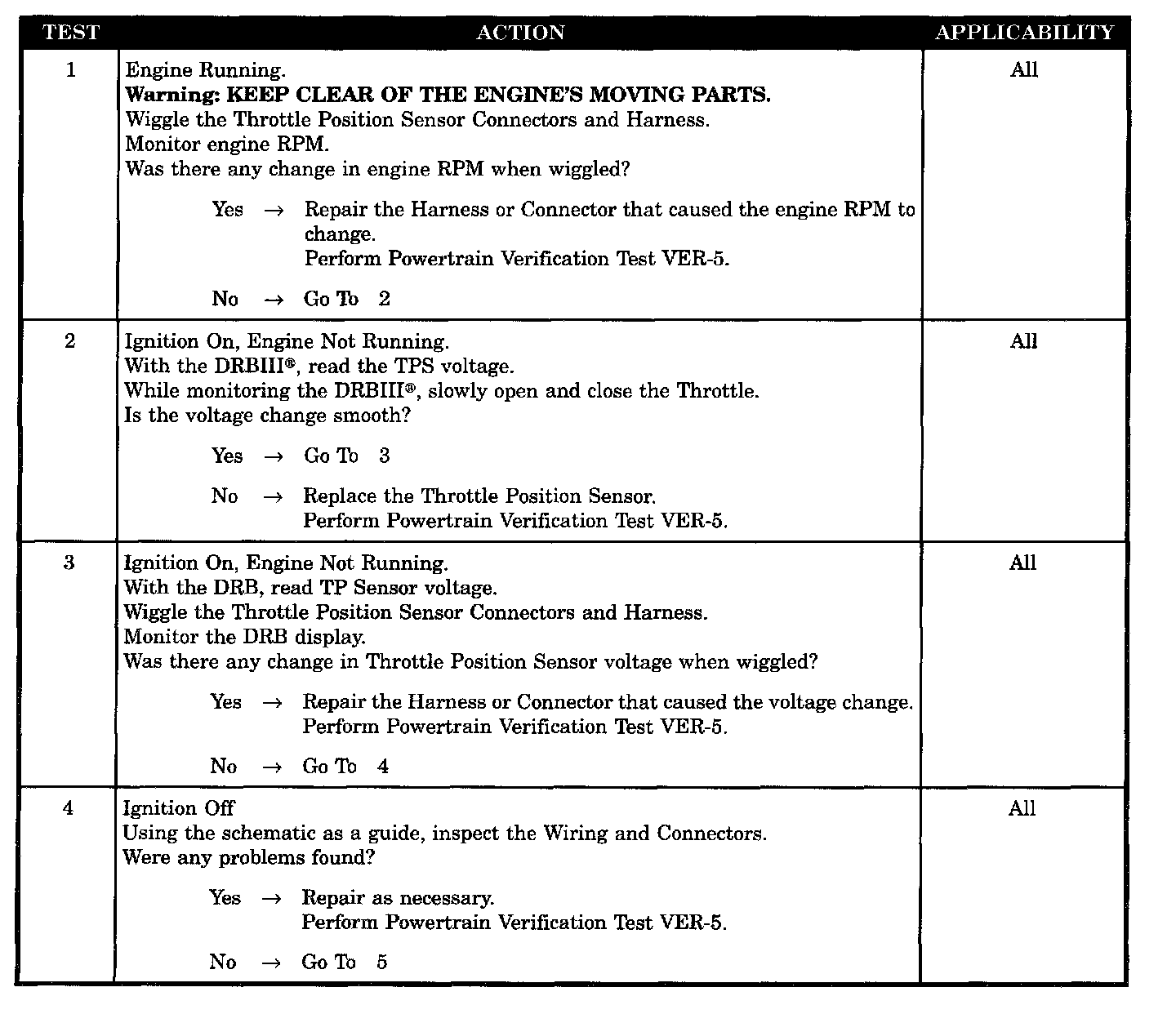

Tests 1 - 4:

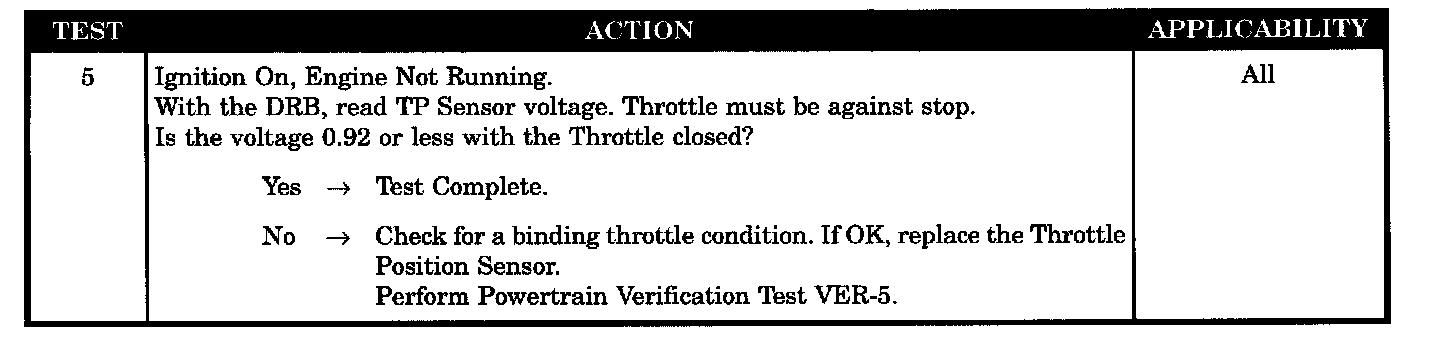

Test 5:

SYMPTOM
CHECKING THROTTLE POSITION SENSOR OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- TPS voltage change not smooth
- TPS connectors/harness intermittent (D)
- TPS harness/connectors intermittent (C)
- TPS harness/connectors observable (E)
- TPS voltage greater than 0.92 volts with throttle closed
