Crankshaft Main Bearing Cap Specifications

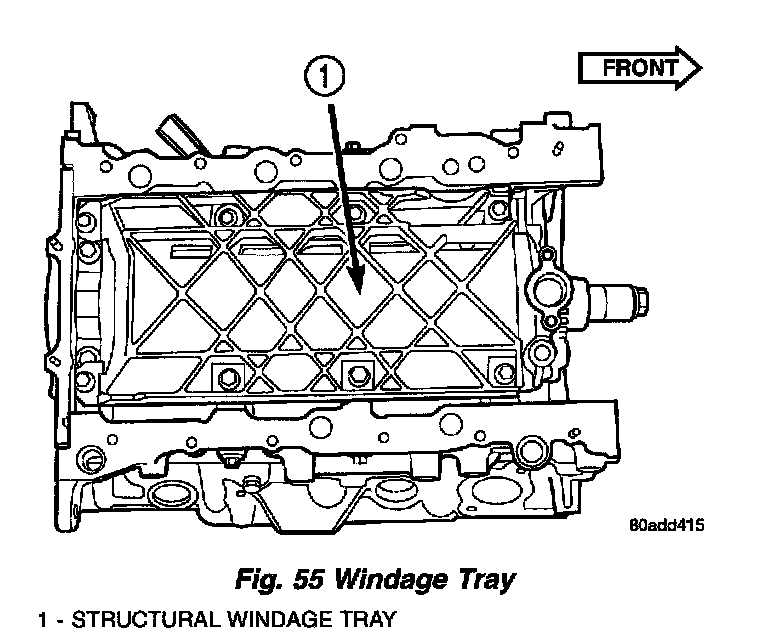

The main bearing cap bolts must be tightened in the proper sequence. First the inner main cap bolts, secondly the windage tray bolts, and lastly the main cap tie (horizontal) bolts.





1. Inner Main Bearing Cap Bolts 20 Nm (15 ft. lbs.) + 1/4 Turn





2. Windage Tray Bolts 27 Nm (20 ft. lbs.) + 1/4 turn

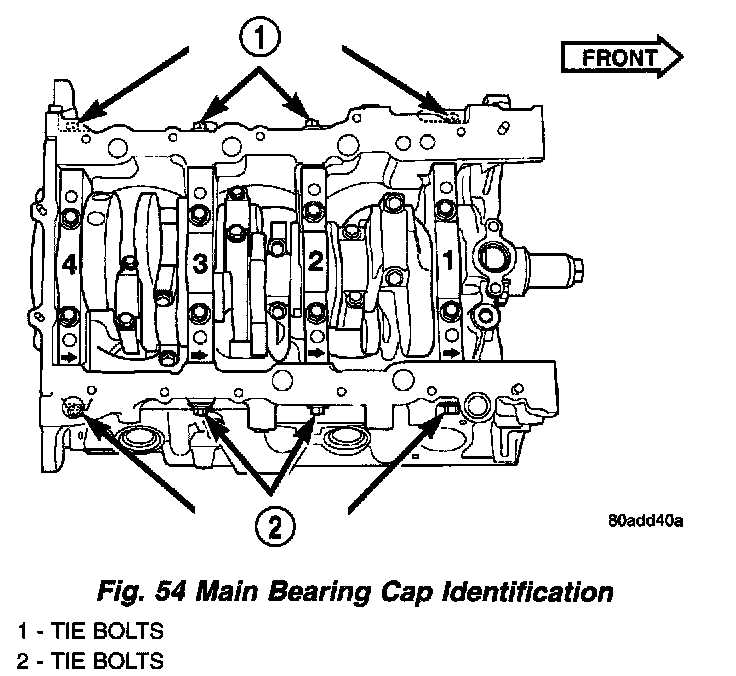

3. Main Cap Tie (horizontal) Bolts 28 Nm (250 in. lbs.)
