Control Module: Locations

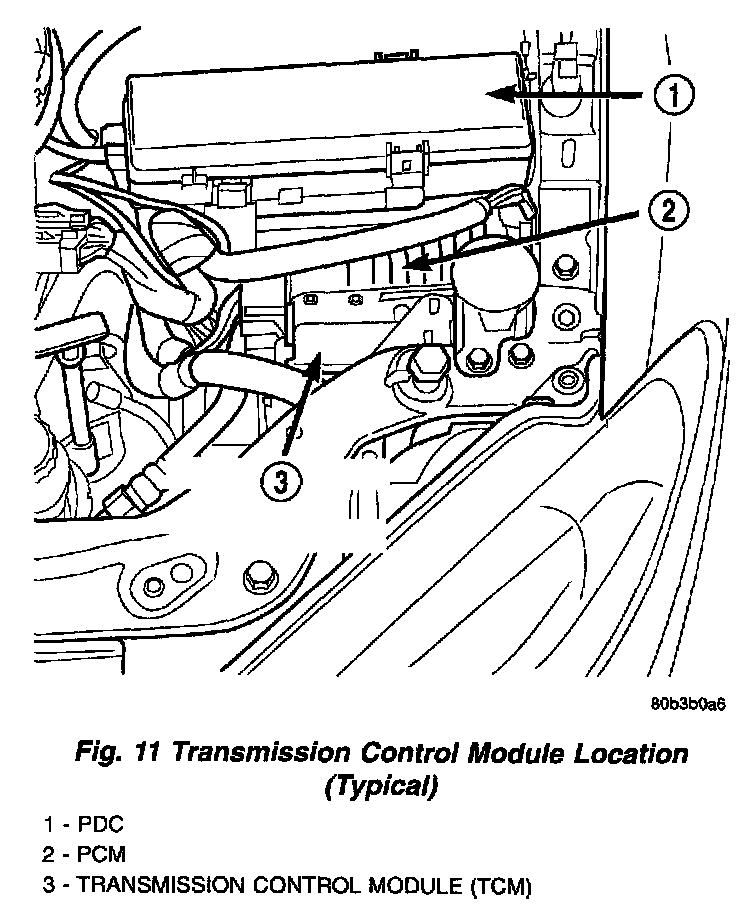

Fig.11 Transmission Control Module Location (Typical):
The Transmission Control Module (TCM) is located in the engine compartment on the left (driver's) side next to the Power Distribution Center (PDC) (Fig. 11).
The Transmission Control Module (TCM) is located in the engine compartment on the left (driver's) side next to the Power Distribution Center (PDC) (Fig. 11).
