Checking Park/Neutral Position Switch

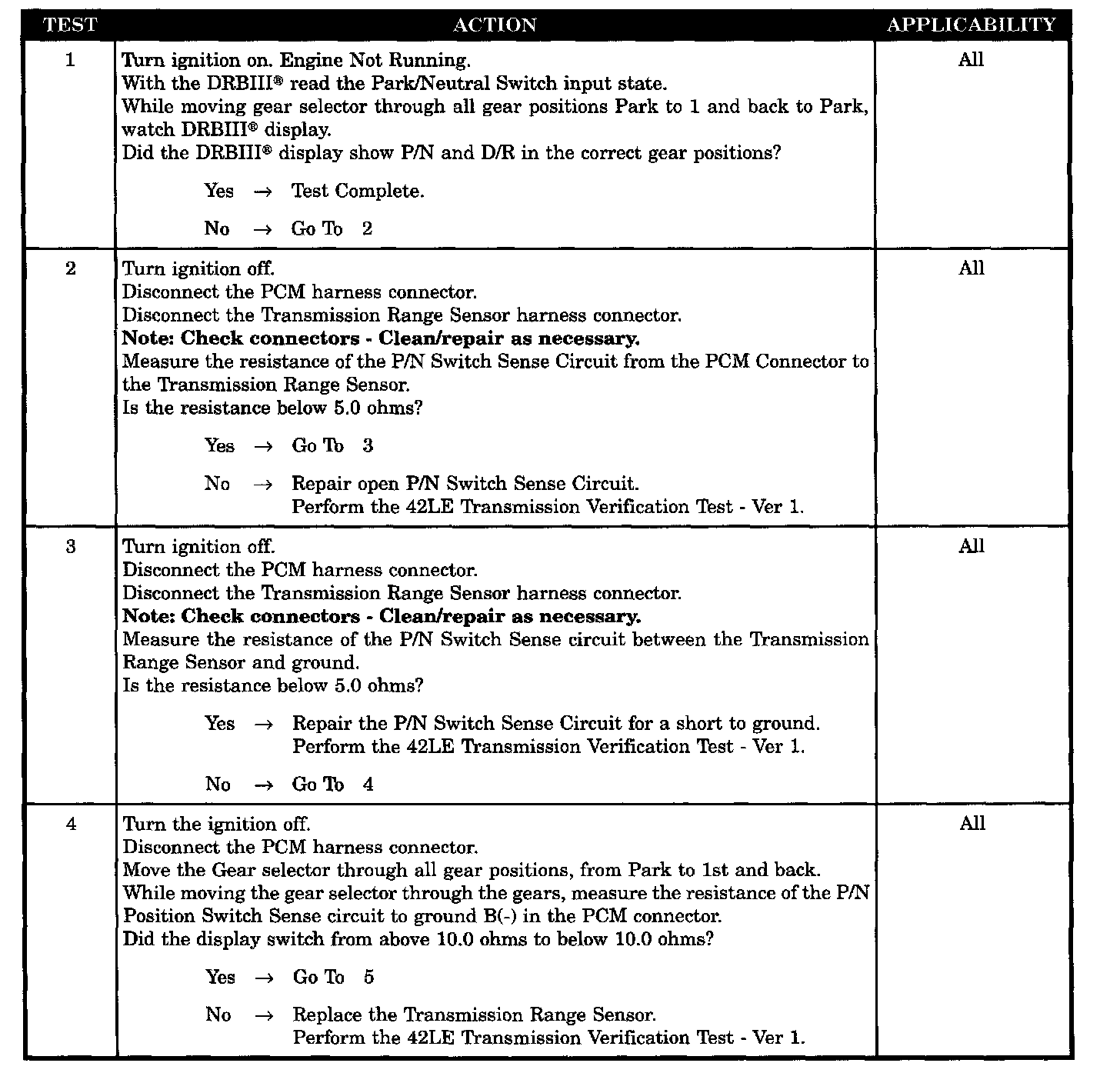

Test 1 Through 4:

Test 5:

SYMPTOM:
*CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
TRANSMISSION RANGE SENSOR DEFECTIVE
P/N SWITCH SENSE CIRCUIT OPEN
P/N SWITCH SENSE CIRCUIT SHORTED TO GROUND
POWERTRAIN CONTROL MODULE (P/N SWITCH INPUT ERROR)
