System Diagram

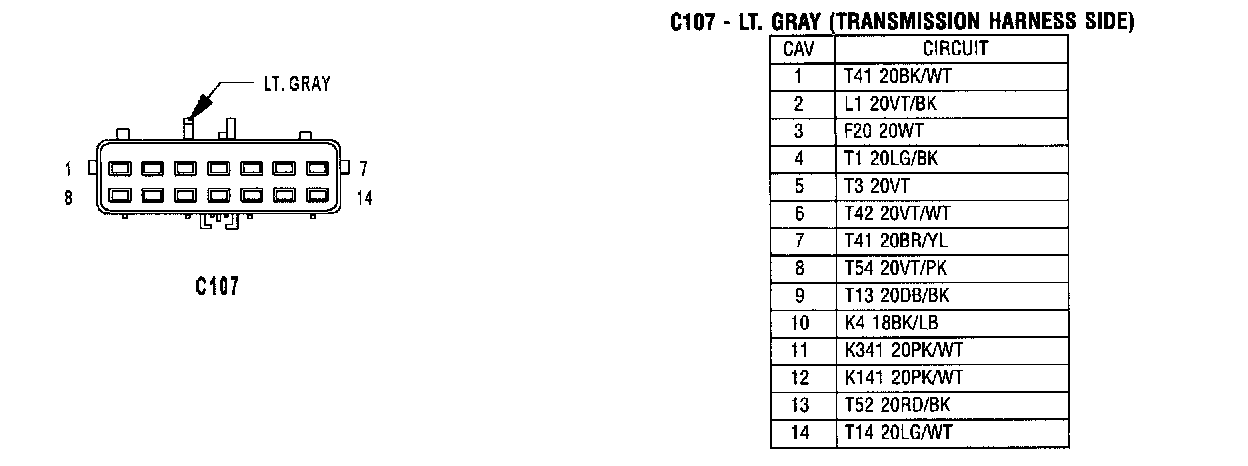

Connector Pinouts:
C107 Transmission Harness Side

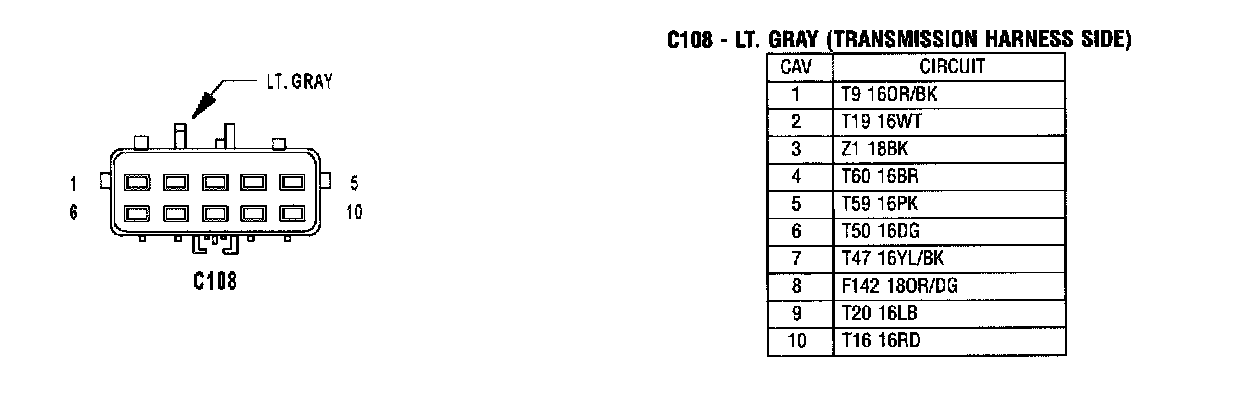

Connector Pinouts:
C108 Transmission Harness Side
