Body Control Module

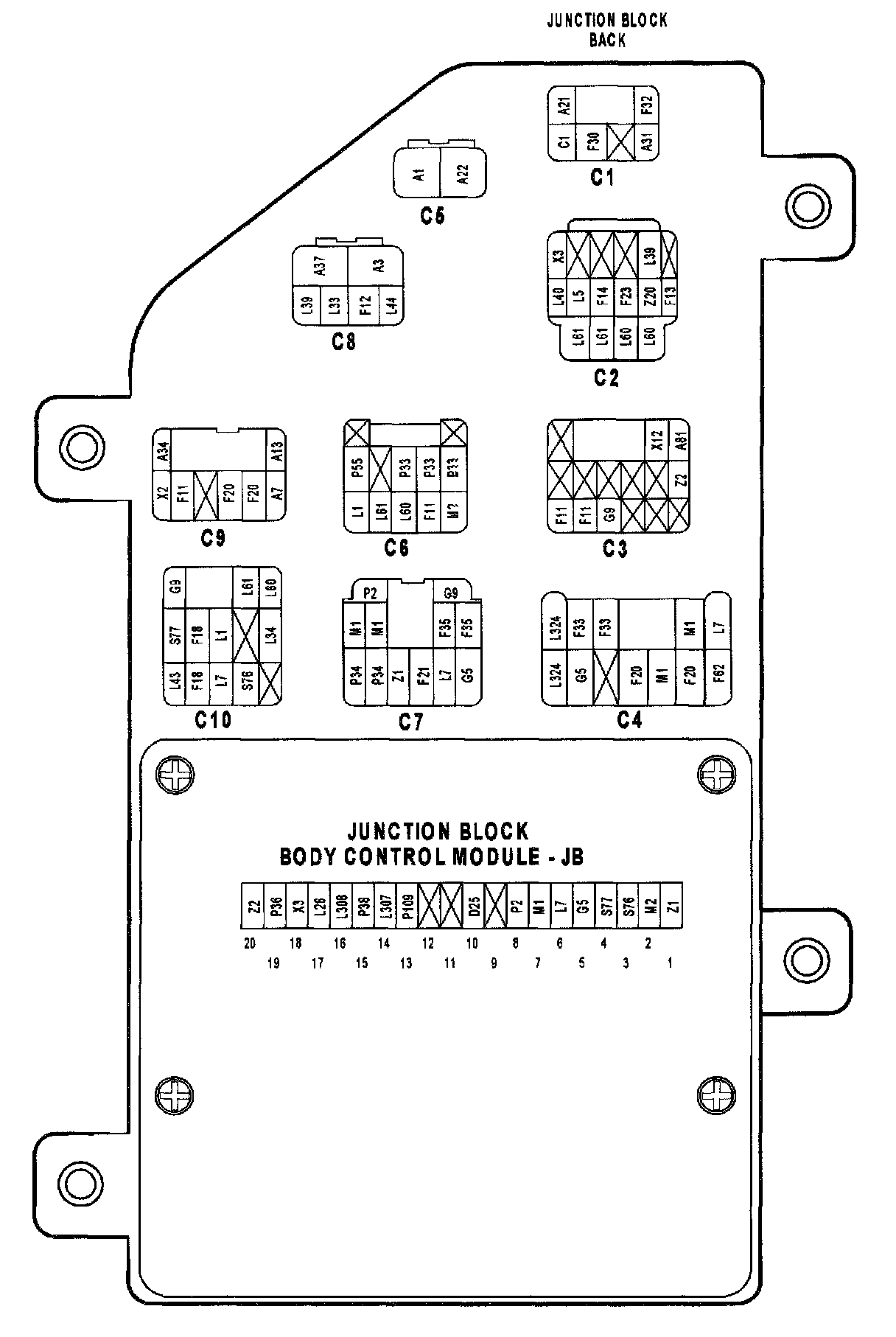

Junction Block (Back):

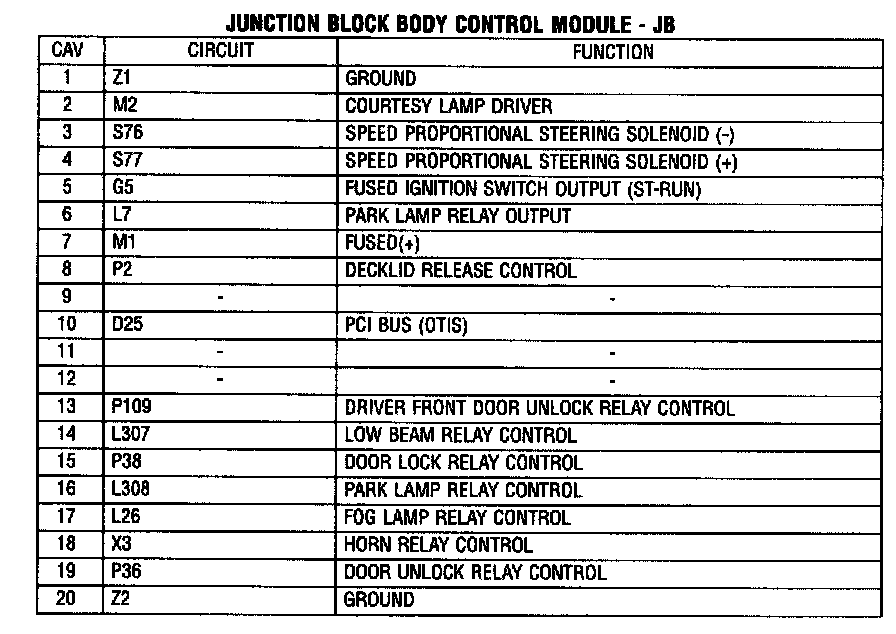

Junction Block Body Control Module - JB:

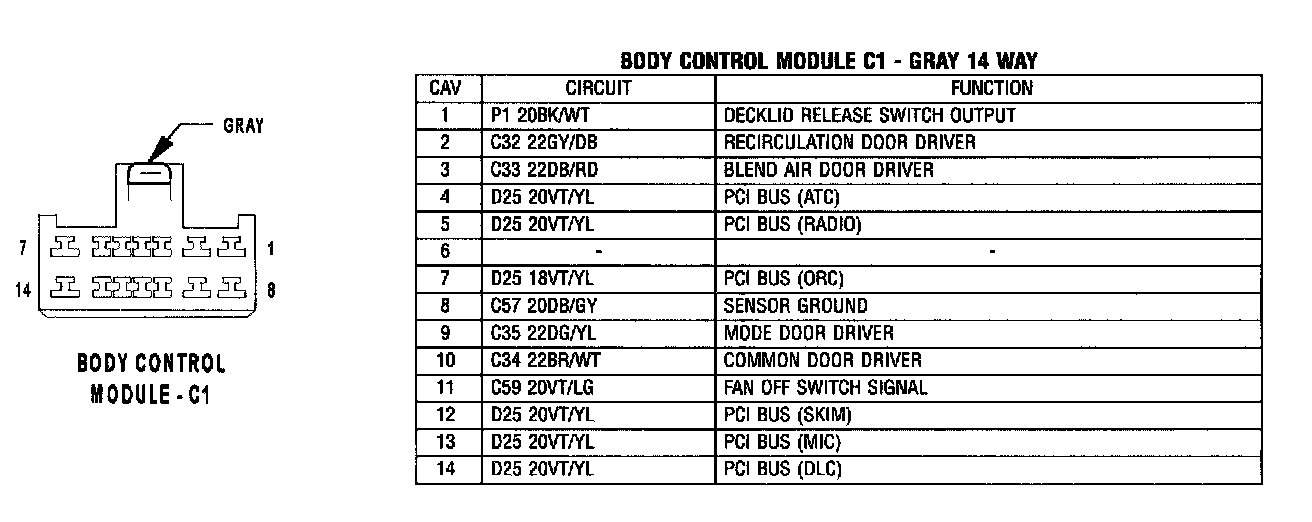

Body Control Module - C1:

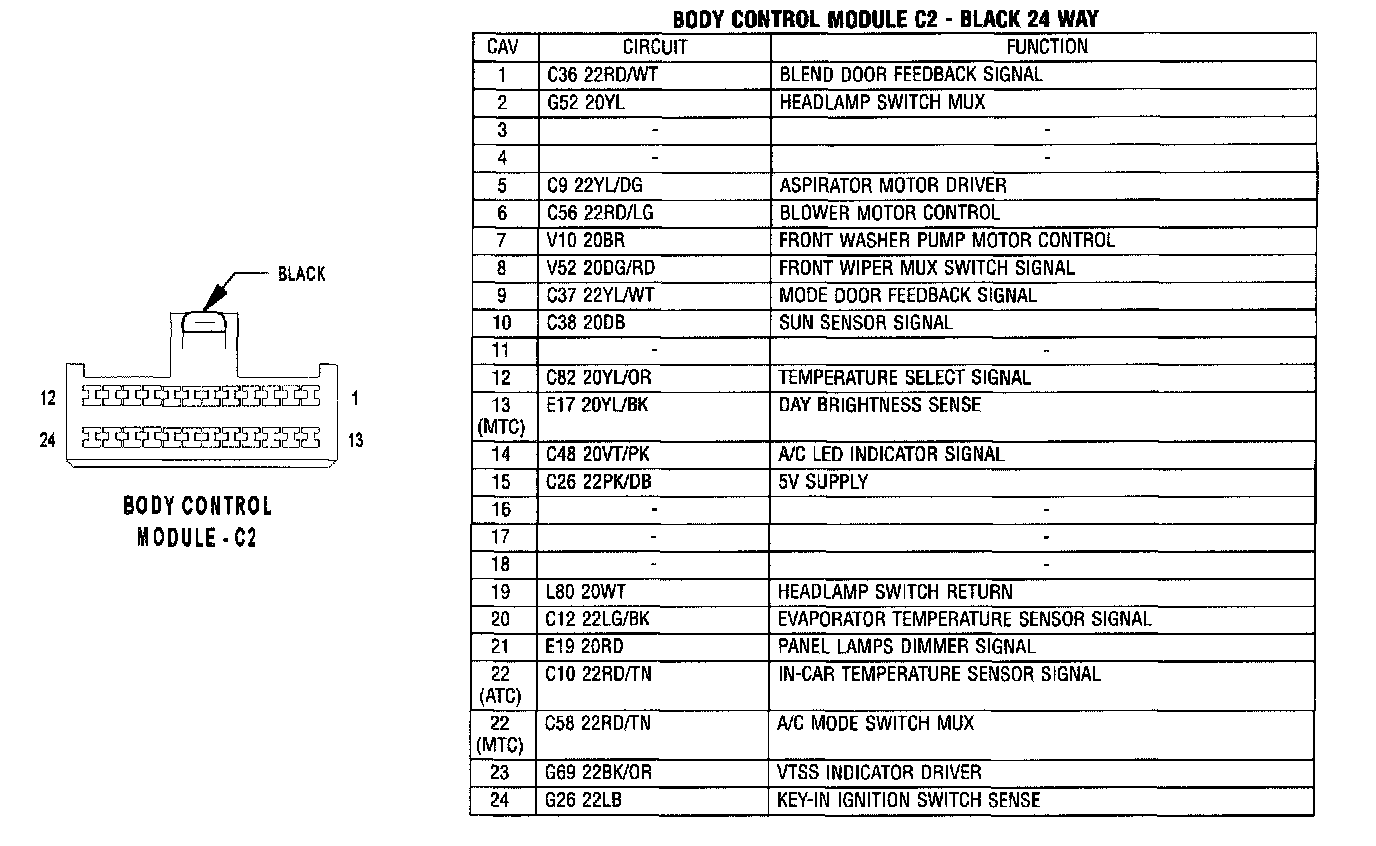

Body Control Module - C2:

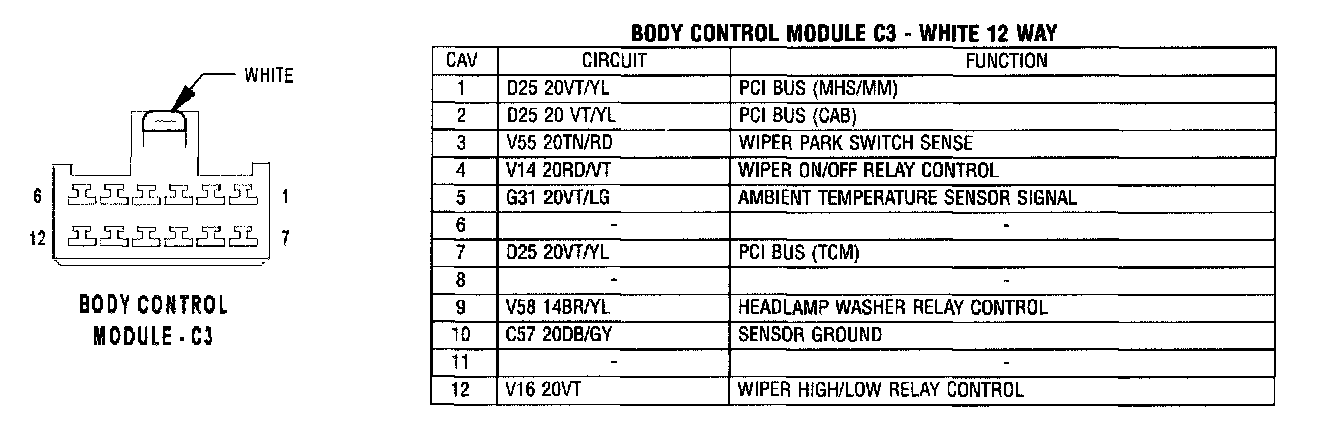

Body Control Module - C3:

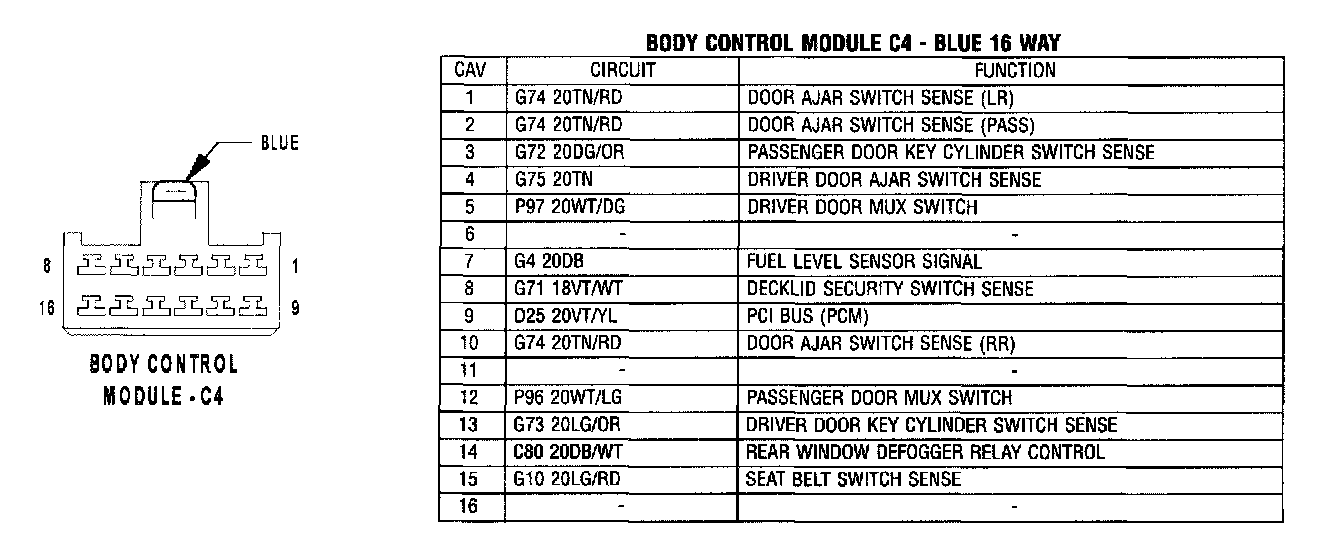

Body Control Module - C4:
