Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Memory Positioning Systems >> System Schematic

April 5, 2026: LEMON Manuals is launched! Read the announcement.

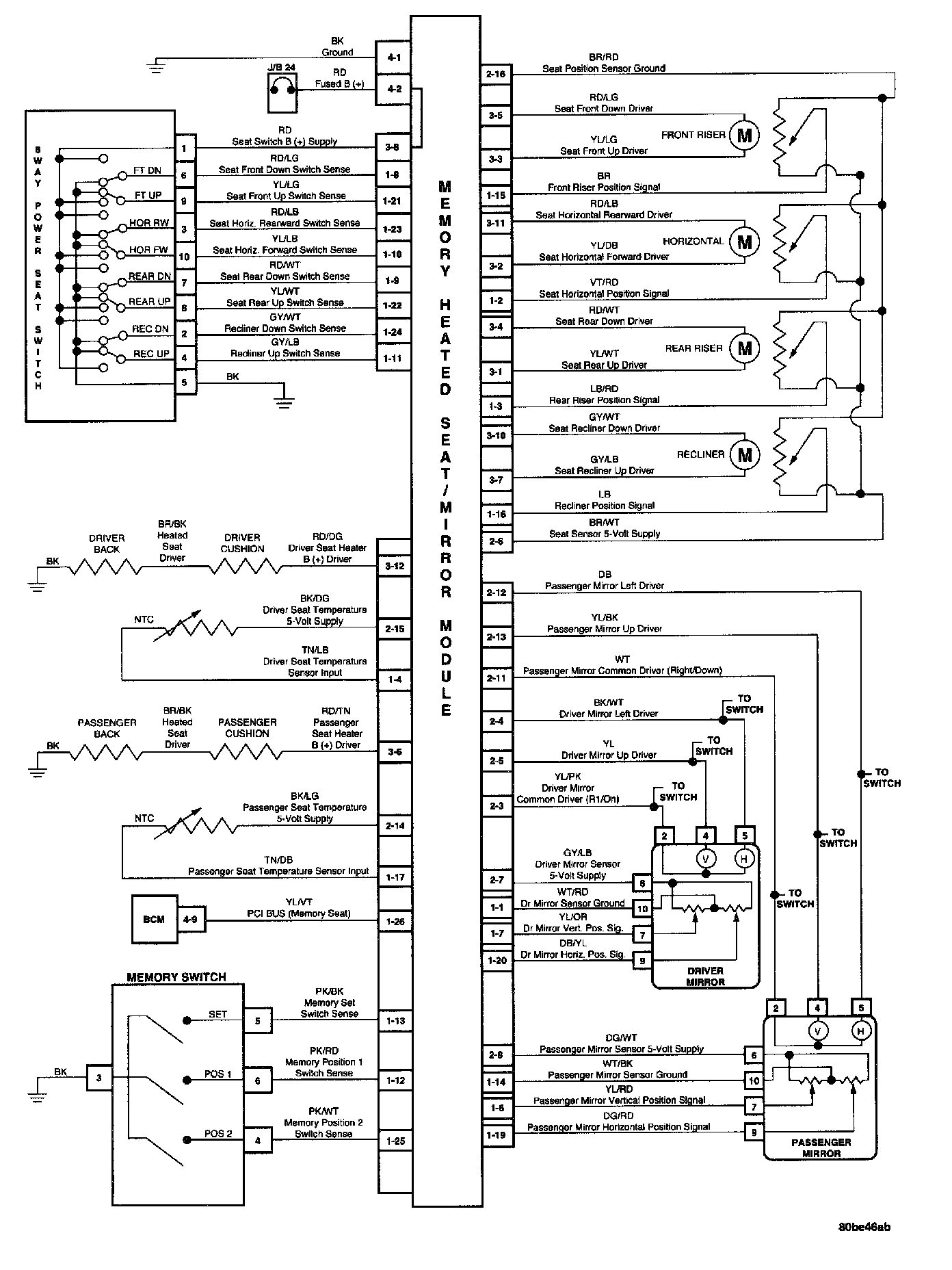

System Schematic

Memory System:
