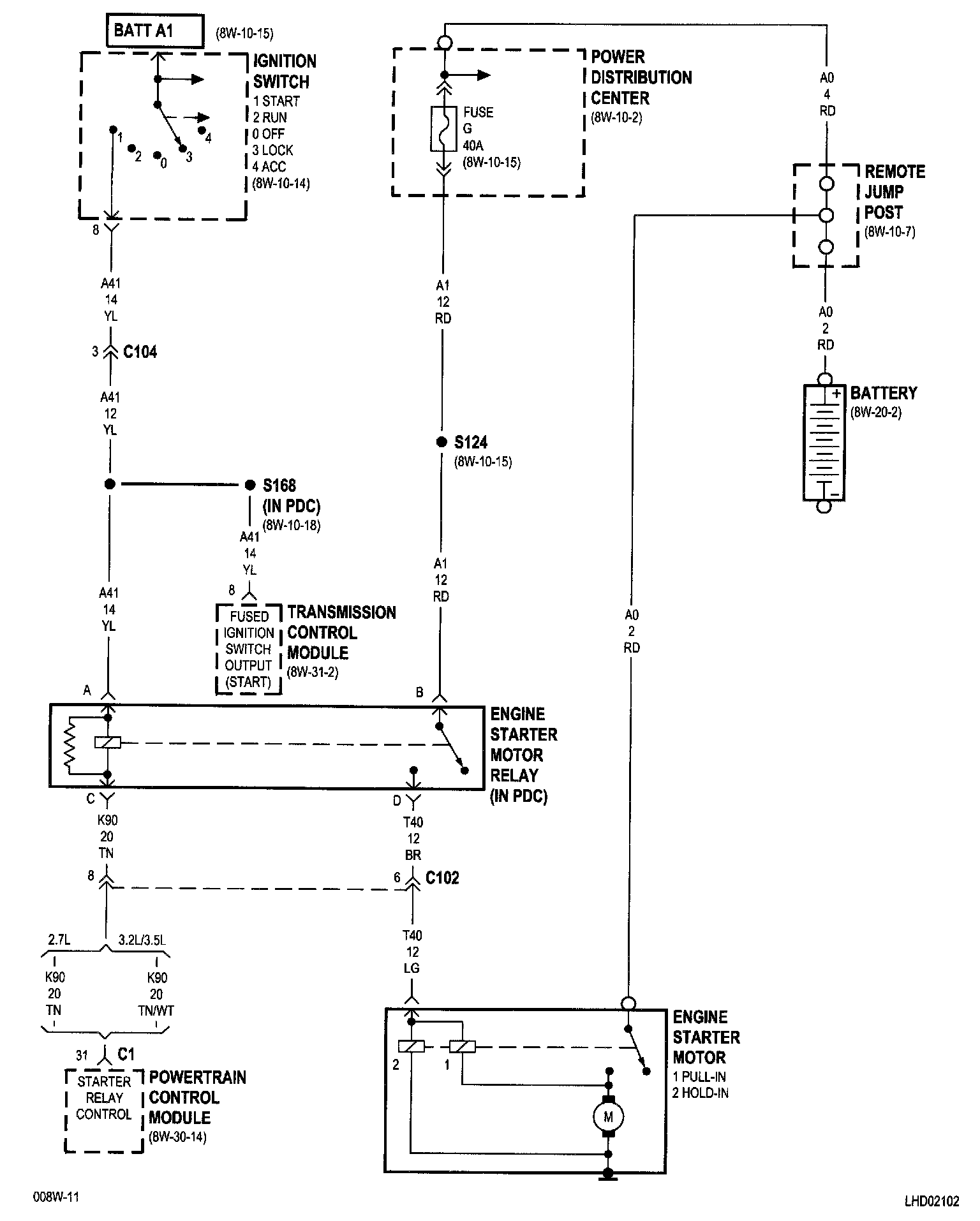

Starting System

8W-21-2:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
