Windows

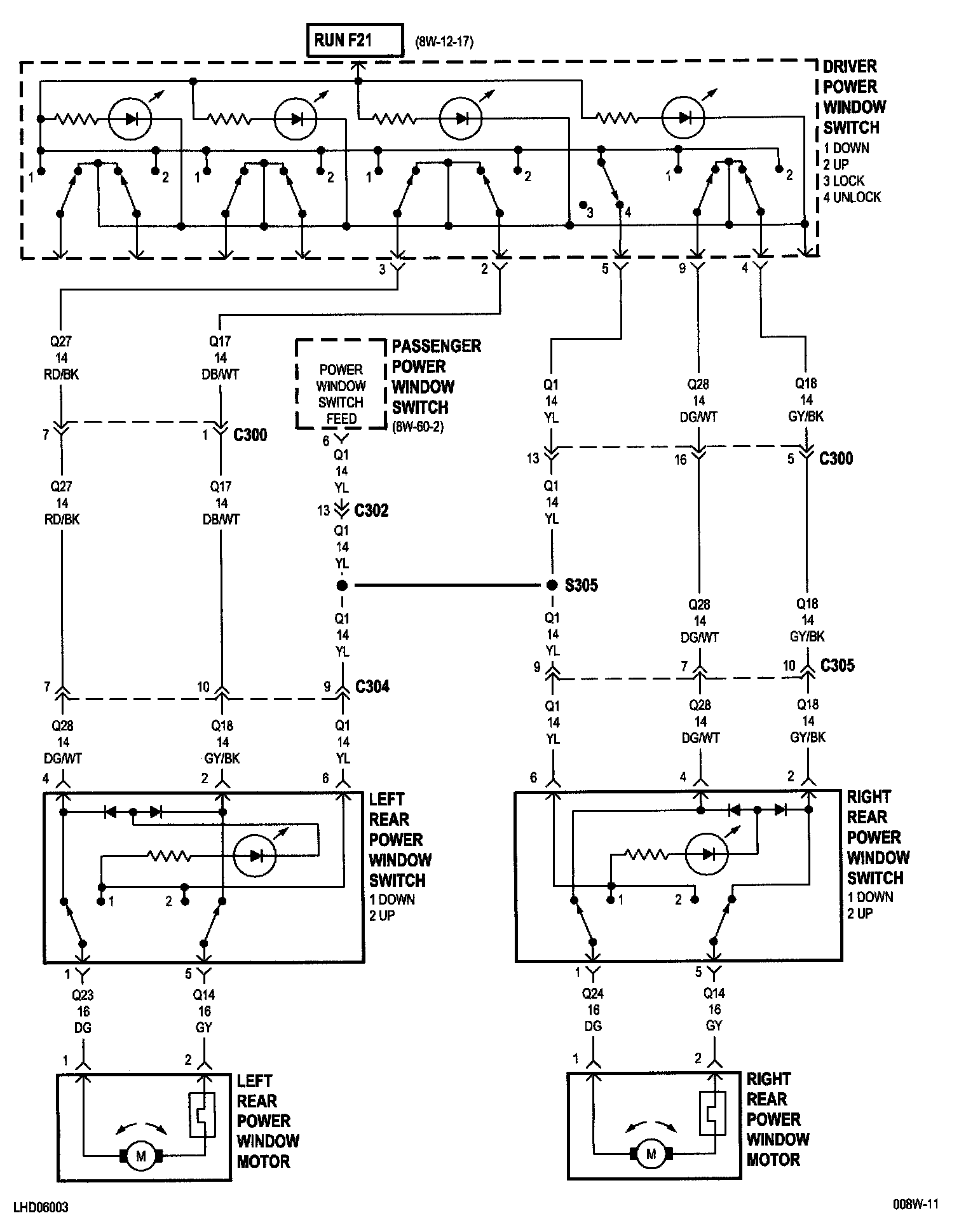

8W-60-2:

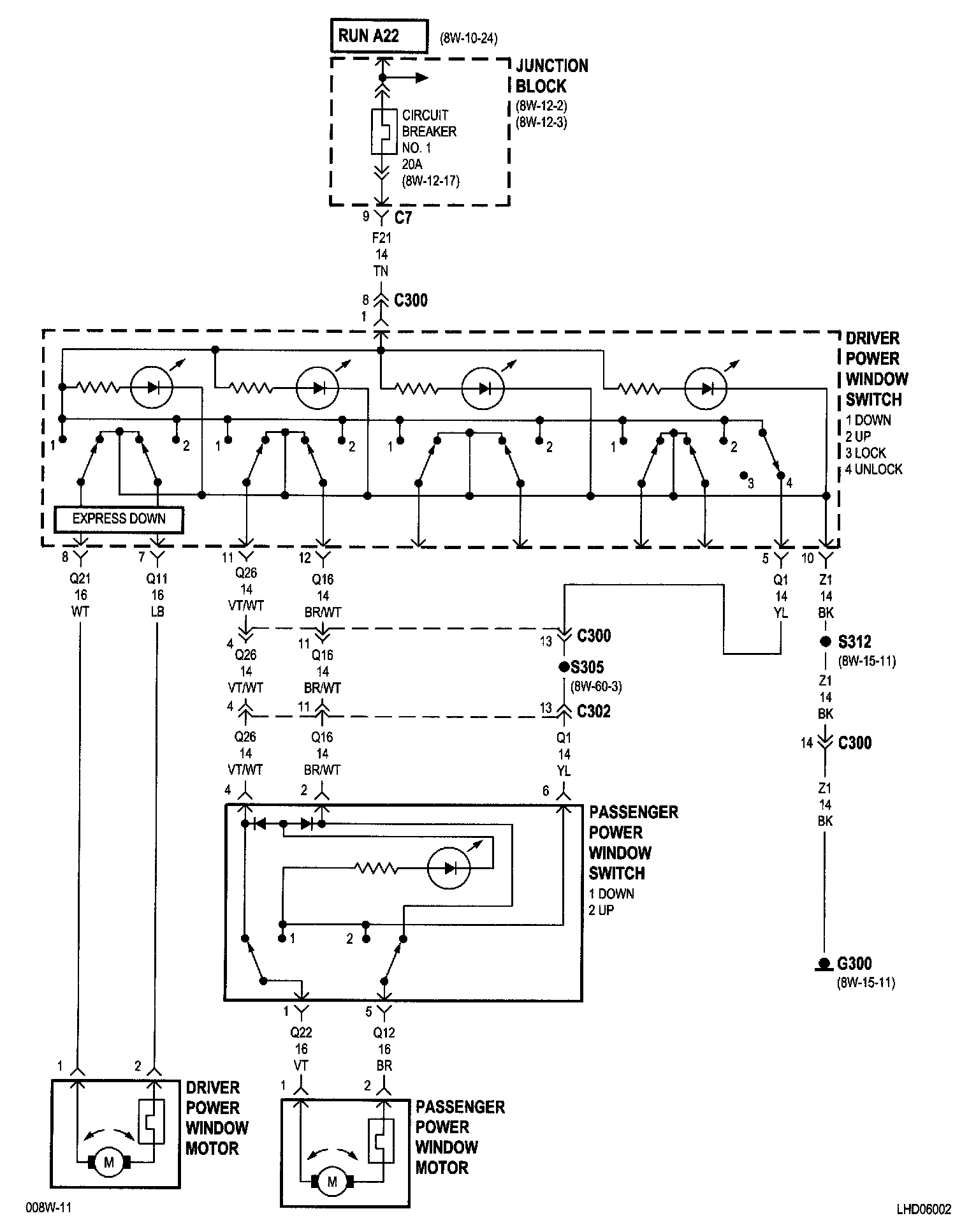

8W-60-3:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
