Home
>>
Chrysler
>>
2000
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 10
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

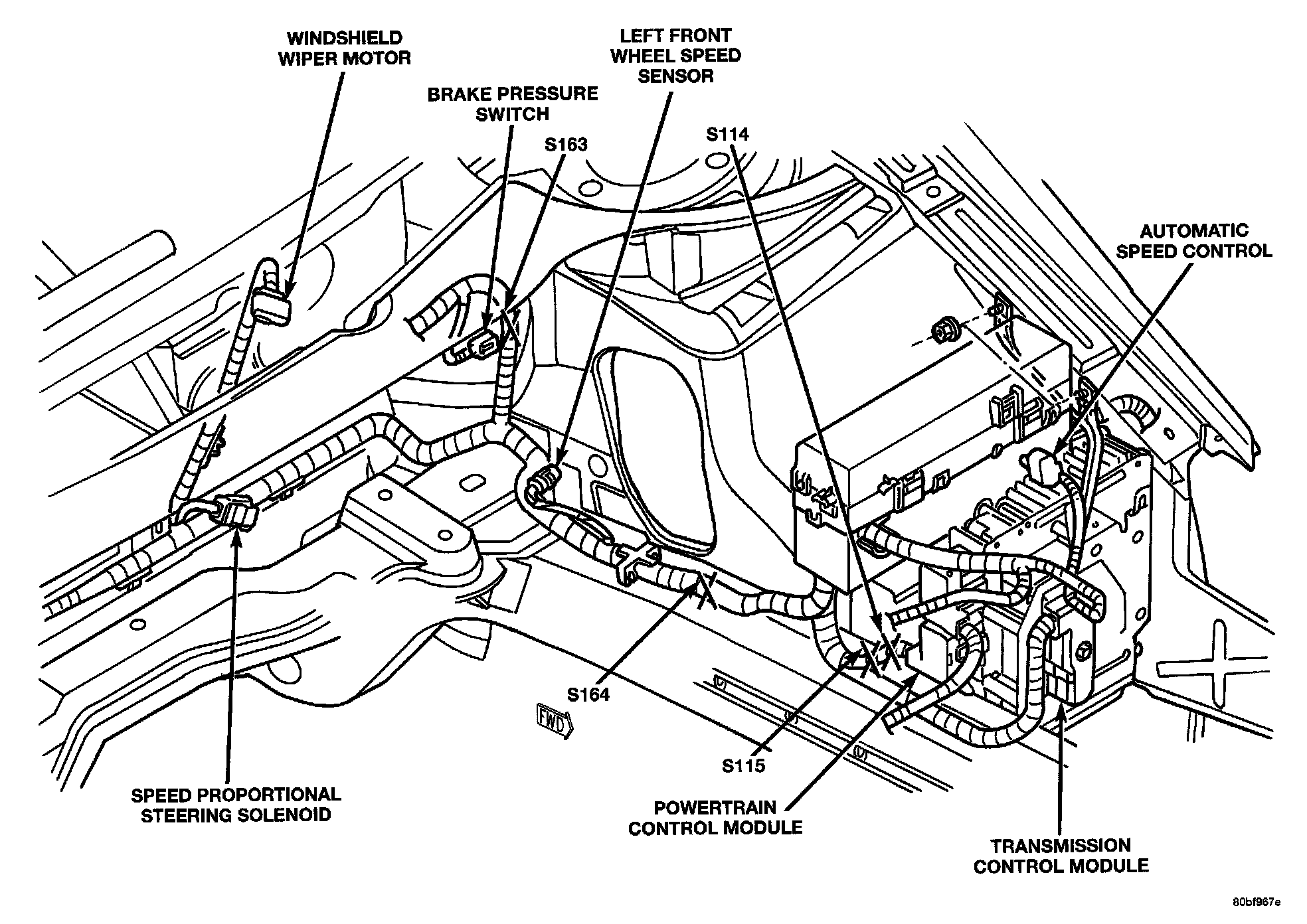

Figure 10
Left Rear Engine Compartment:
