Fuel Filter: Locations

Fuel Pump Module (Typical):

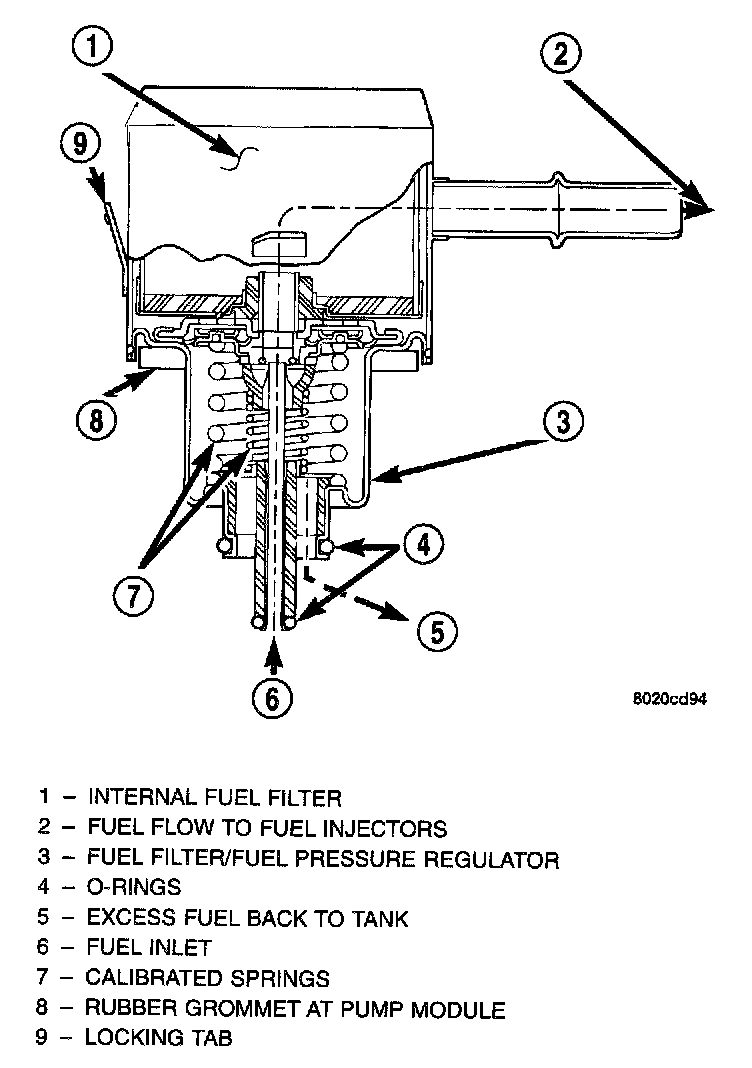

Side View - Filter/Regulator:

A combination fuel filter and fuel pressure regulator is used on all gas powered engines. It is located on the top of the fuel pump module.

The fuel pump module is an in-tank unit with an integral fuel level sensor and pressure regulator.
