Camshaft Position Sensor: Locations

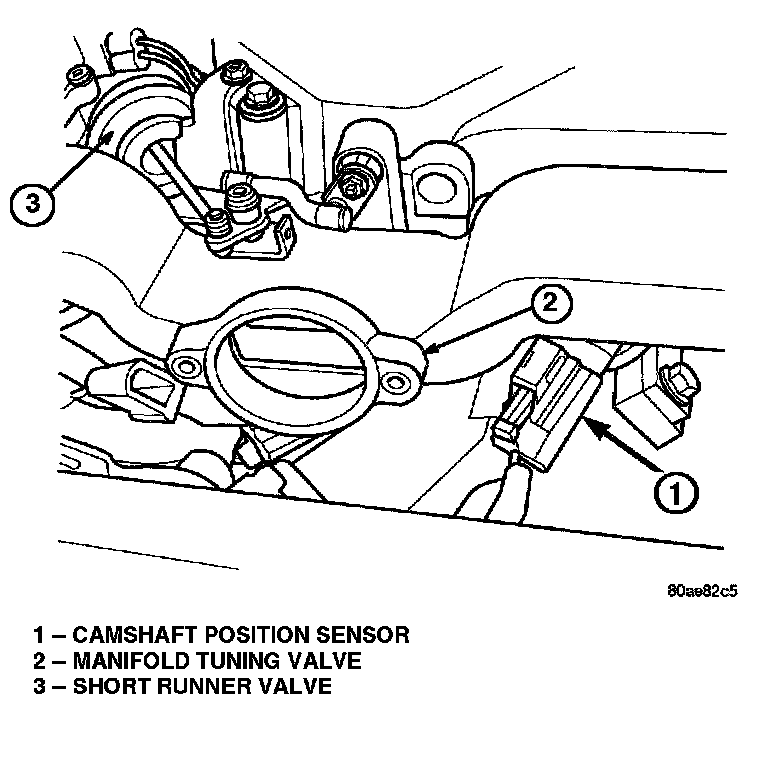

Camshaft Position Sensor - 3.2/3.5L Engine:




The Camshaft Position Sensor is mounted in the front of the timing case cover. It is a hall effect device.
