Checking Brake Switch

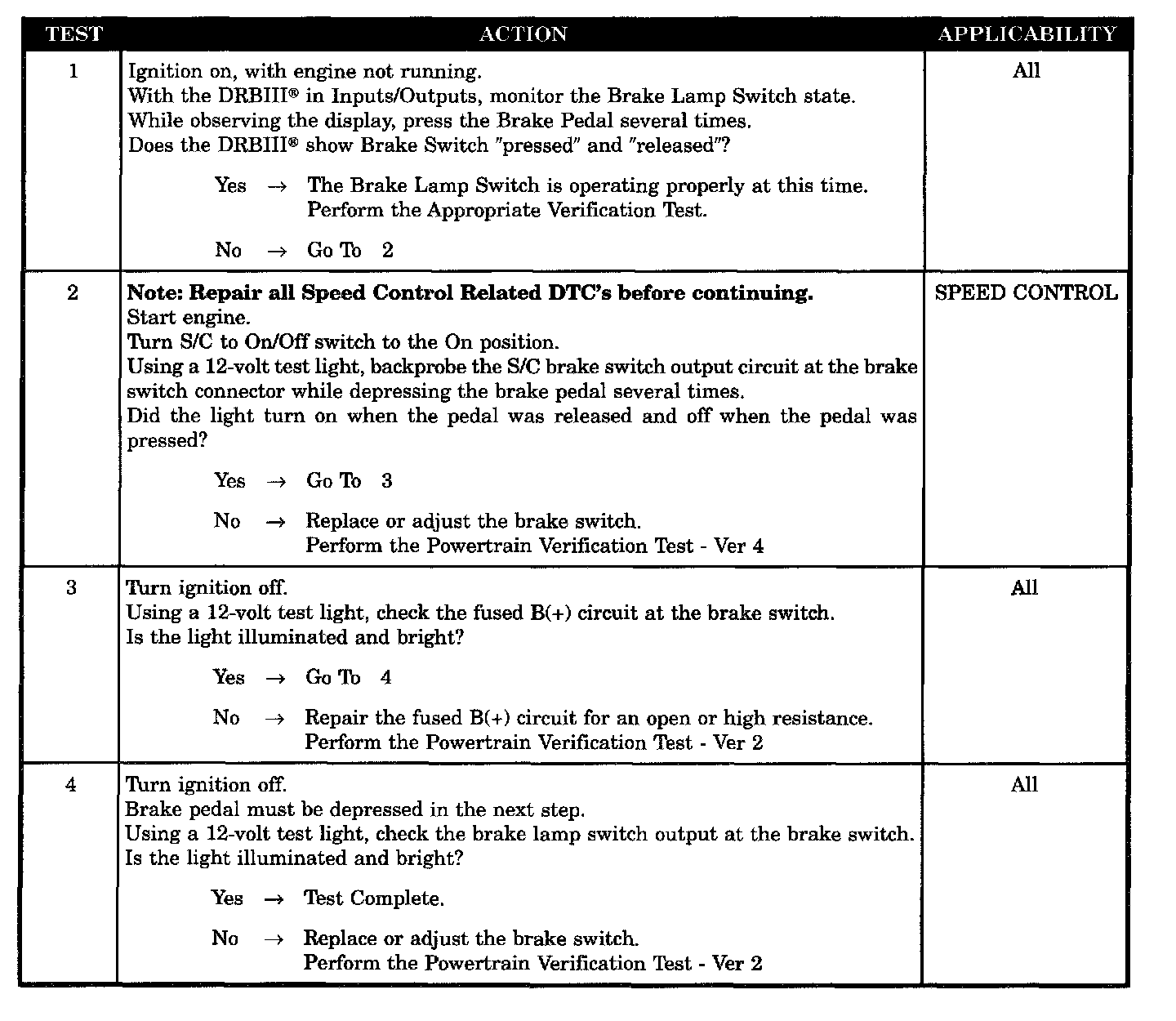

Tests 1 - 4:

SYMPTOM
CHECKING BRAKE SWITCH OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- DRB does not show brake switch pressed or released
- Brake lamp switch output less than 10.0 volts
- Fused B(+) circuit open
- S/C brake switch output less than 10 volts at brake switch
