Checking Minimum Idle Airflow

Tests 1 - 3:

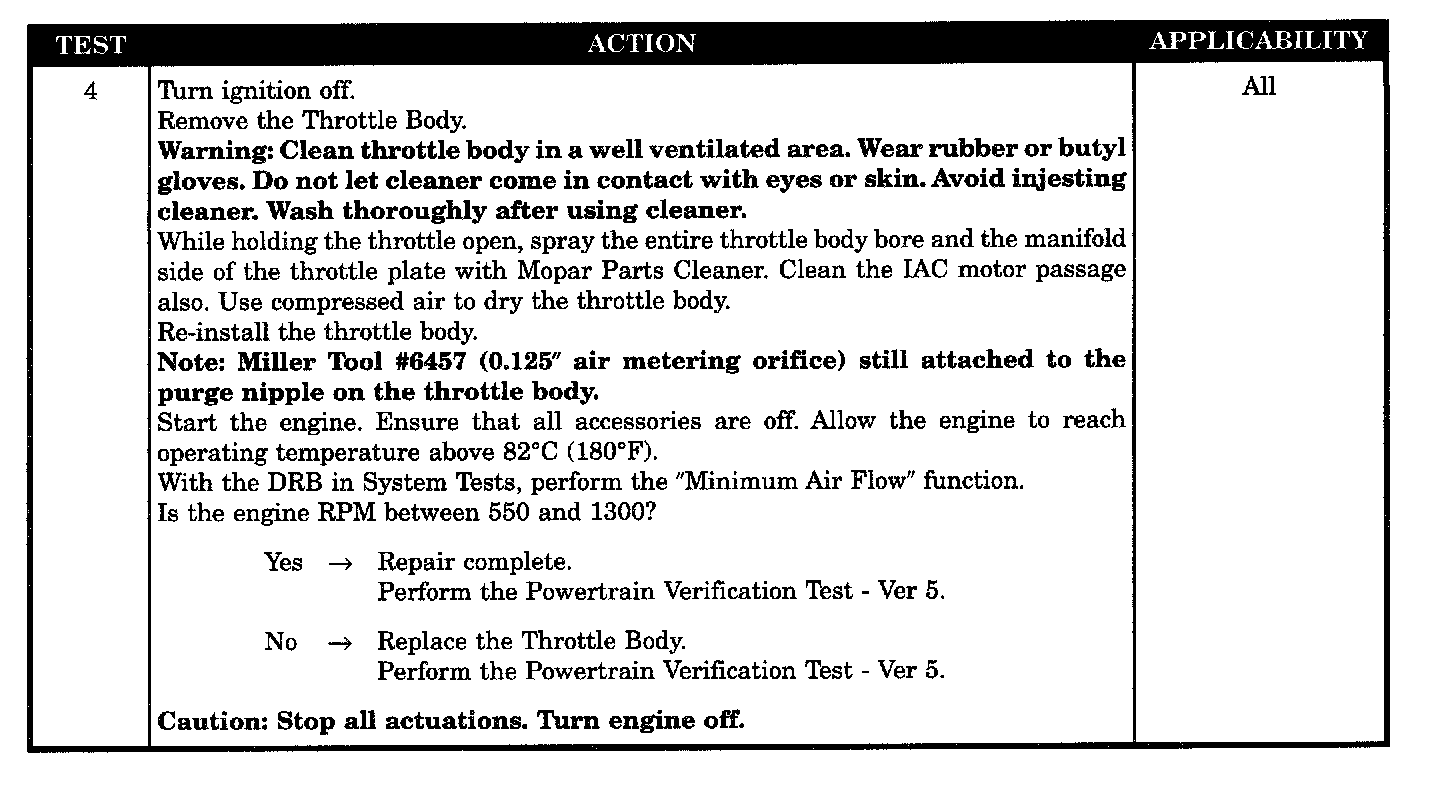

Test 4:





SYMPTOM
CHECKING MINIMUM IDLE AIRFLOW

POSSIBLE CAUSES
- Throttle body
- Throttle plate/linkage binding
- Vacuum leak
- Throttle body dirty
