Checking Radiator Fan Operation

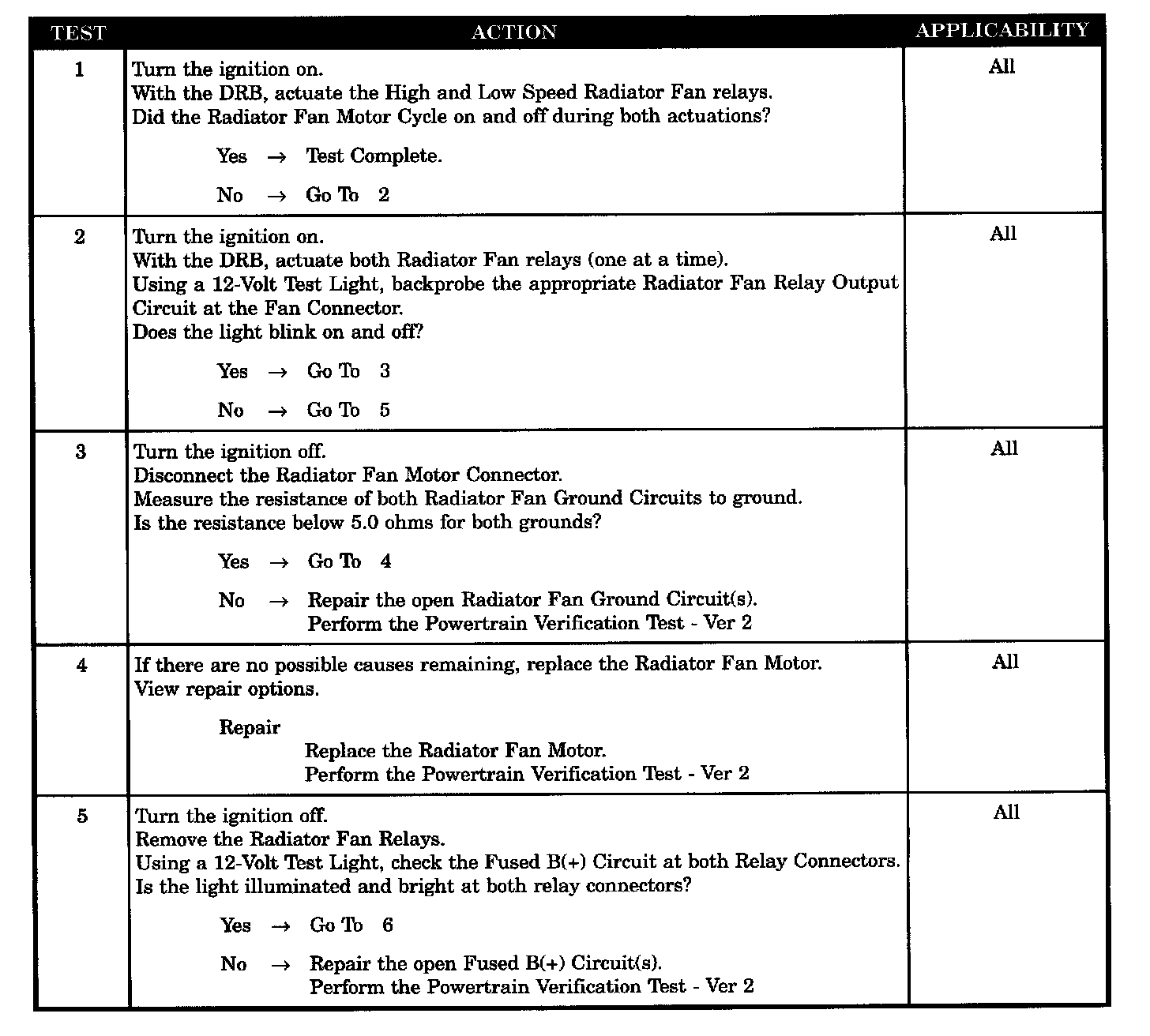

Tests 1 - 5:

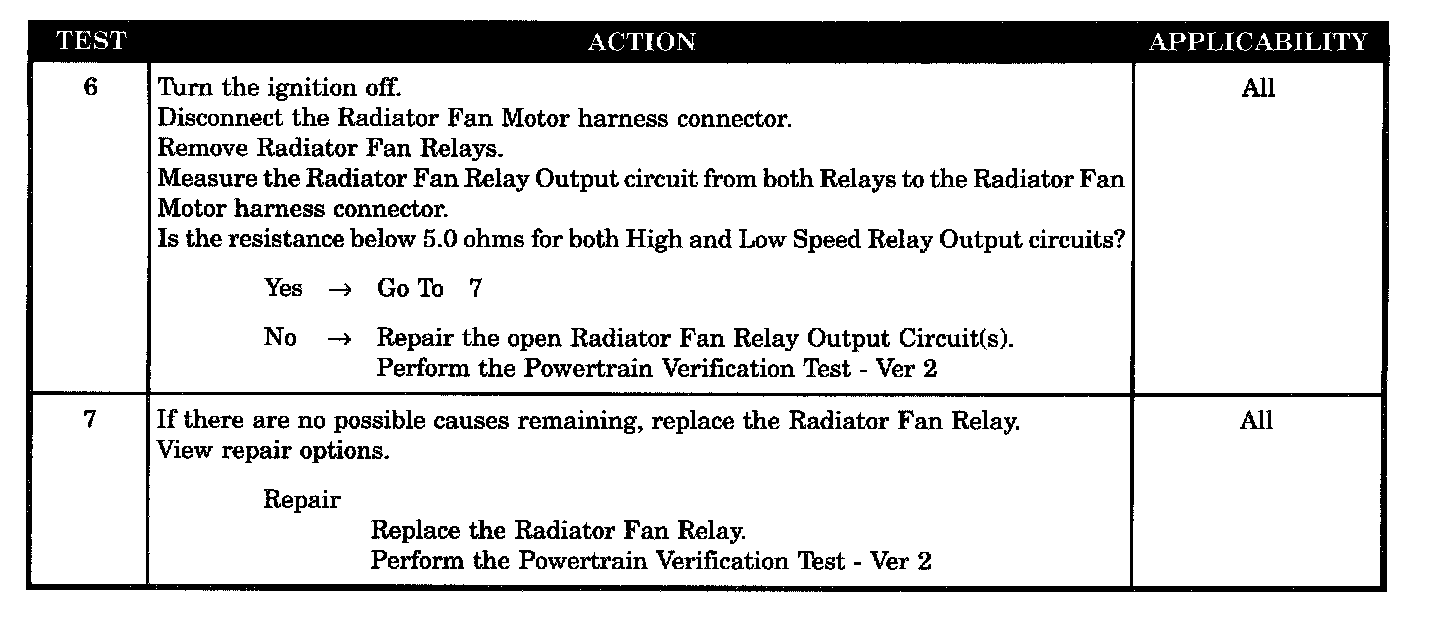

Tests 6 - 7:





SYMPTOM
CHECKING RADIATOR FAN OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- Fused B(+) circuit open
- Radiator fan ground circuit open
- Radiator fan motor defective
- Radiator fan relay output circuit open
- Radiator fan relay
