Checking the Engine Coolant Temperature Sensor Operation

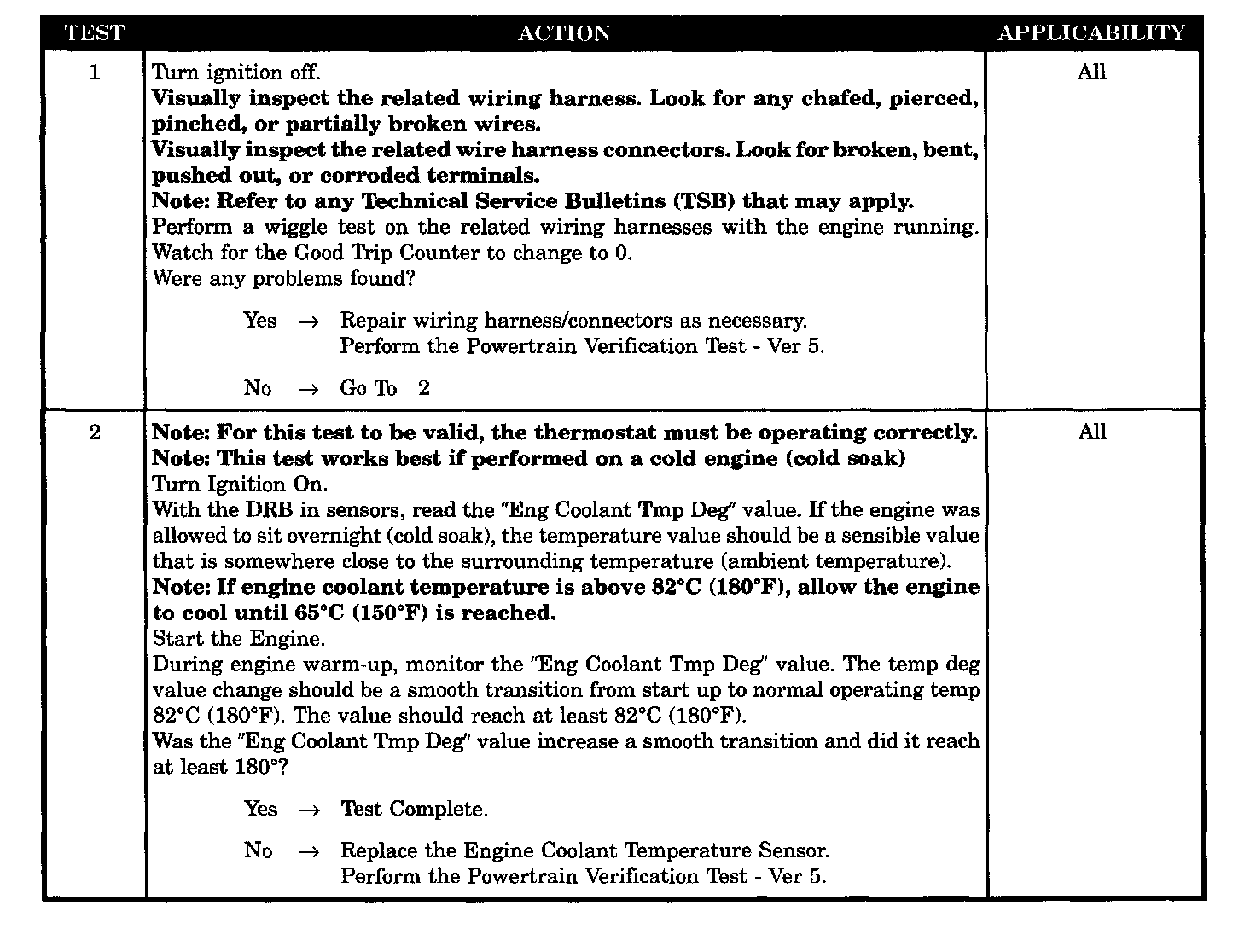

Tests 1 - 2:





SYMPTOM
CHECKING THE ENGINE COOLANT TEMPERATURE SENSOR

POSSIBLE CAUSES
- ECT wiring harness intermittent
- ECT sensor (out of calibration)
