Checking the MAP Sensor Operation

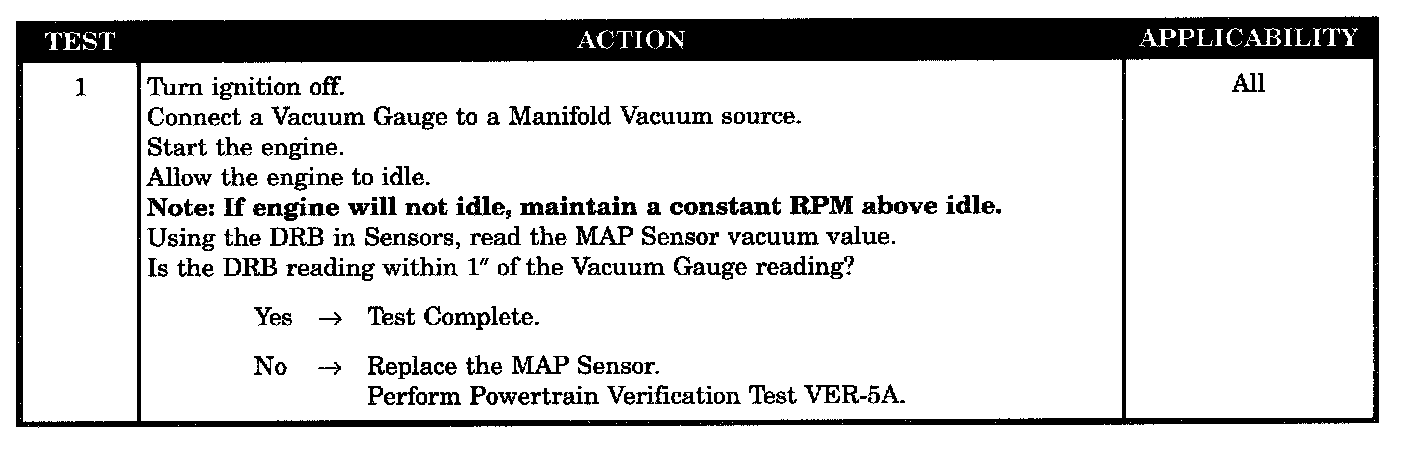

Test 1:





SYMPTOM
CHECKING MAP SENSOR OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- MAP sensor (out of calibration)
