Engine Compartment/Exhaust System

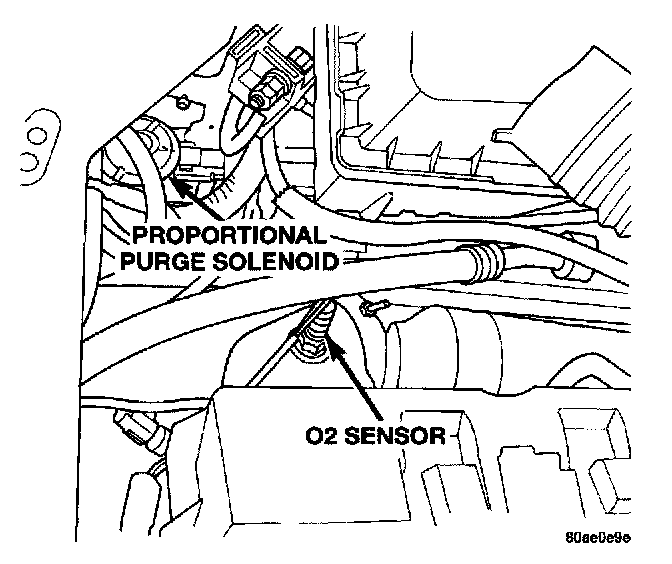

HO2S 1/1:

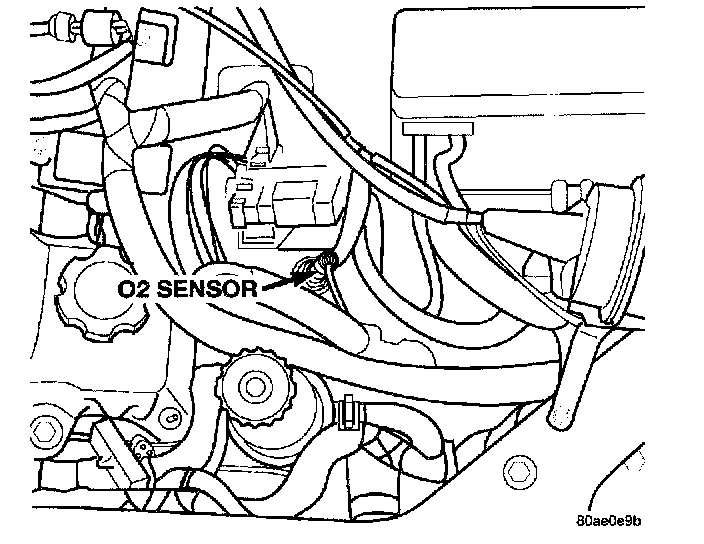

HO2S 2/1:
This engine uses two upstream heated oxygen sensors. One oxygen sensor is threaded into the outlet flange of each exhaust manifold.

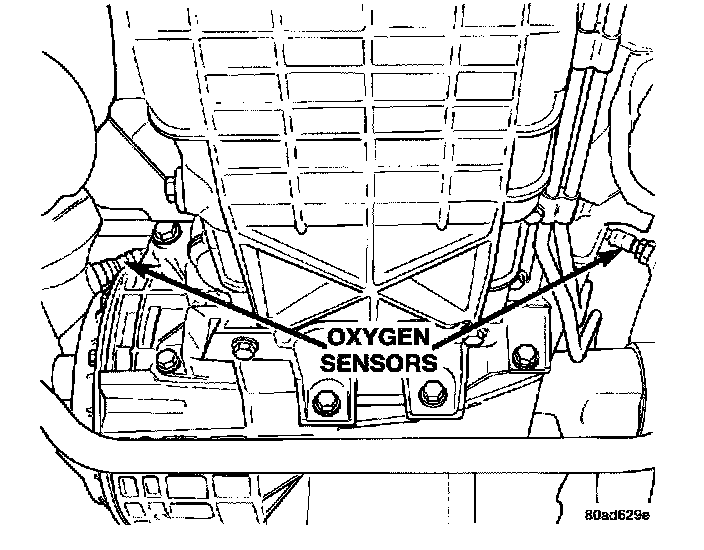

HO2S 1/2 And 2/2:
The downstream heated oxygen sensors are located at the outlet ends of the catalytic converter.
