Intake Manifold Torque Specifications

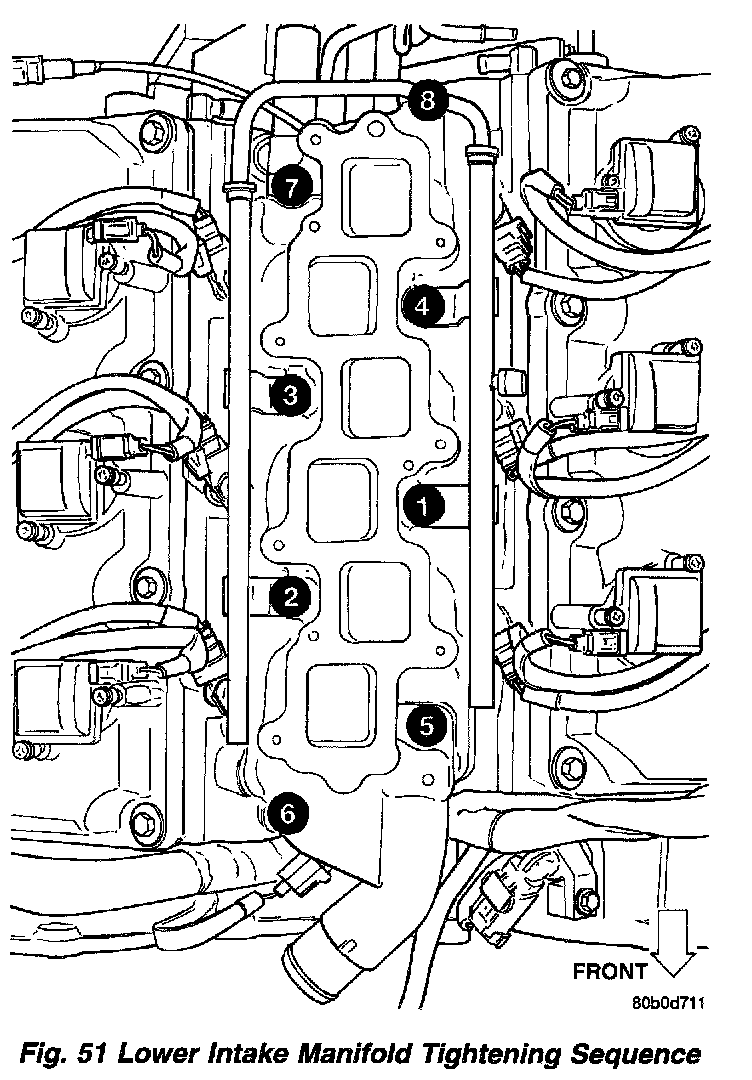

LOWER INTAKE MANIFOLD
Gradually tighten intake manifold bolts in sequence shown. Torque of 28 Nm (250 in. lbs.).

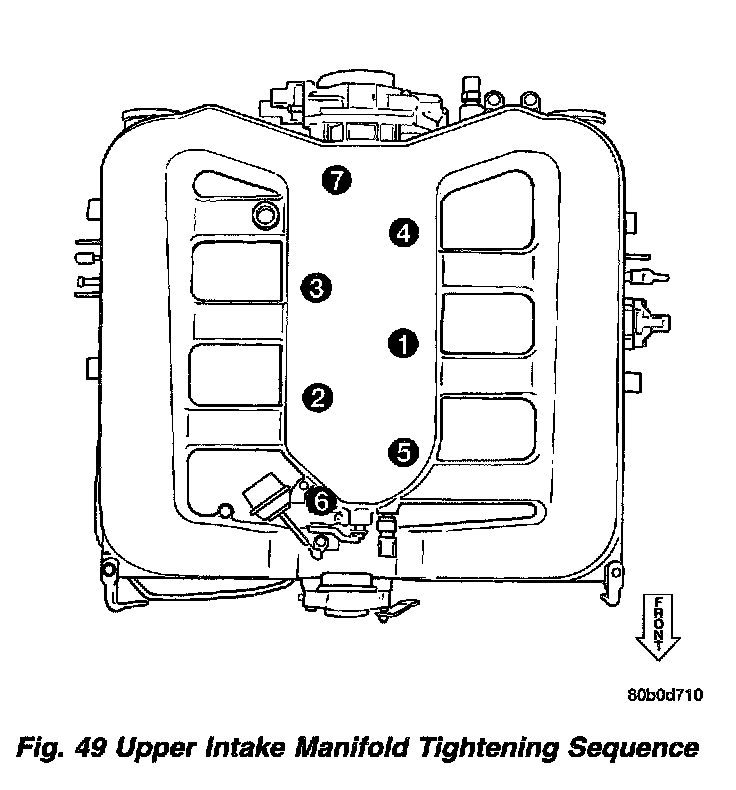

UPPER INTAKE MANIFOLD
Tighten bolts gradually in sequence shown. Torque to 12 Nm (105 in. lbs.).
