Door Window

NOTE: This procedure applies to front and rear doors.

Remove appropriate door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION. Remove water shield from door. Loosen adjustment bolt attaching scissor channel to door at rear of access hole. See Fig 1 or Fig 2 . Ensure glass moves freely in weatherstrip run channel. Push glass toward rear and apply slight downward pressure on scissor channel. Tighten adjustment bolt. Install door trim panel.

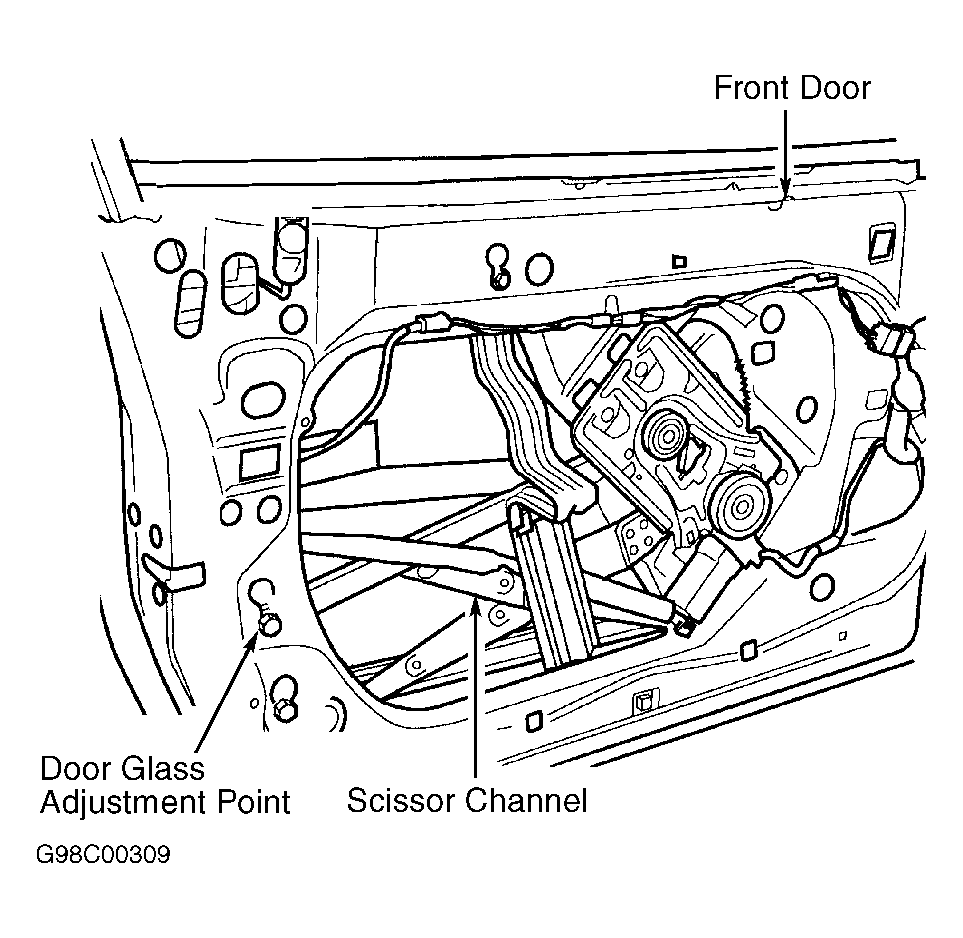

Fig 1: Adjusting Front Window

Courtesy of CHRYSLER CORP.

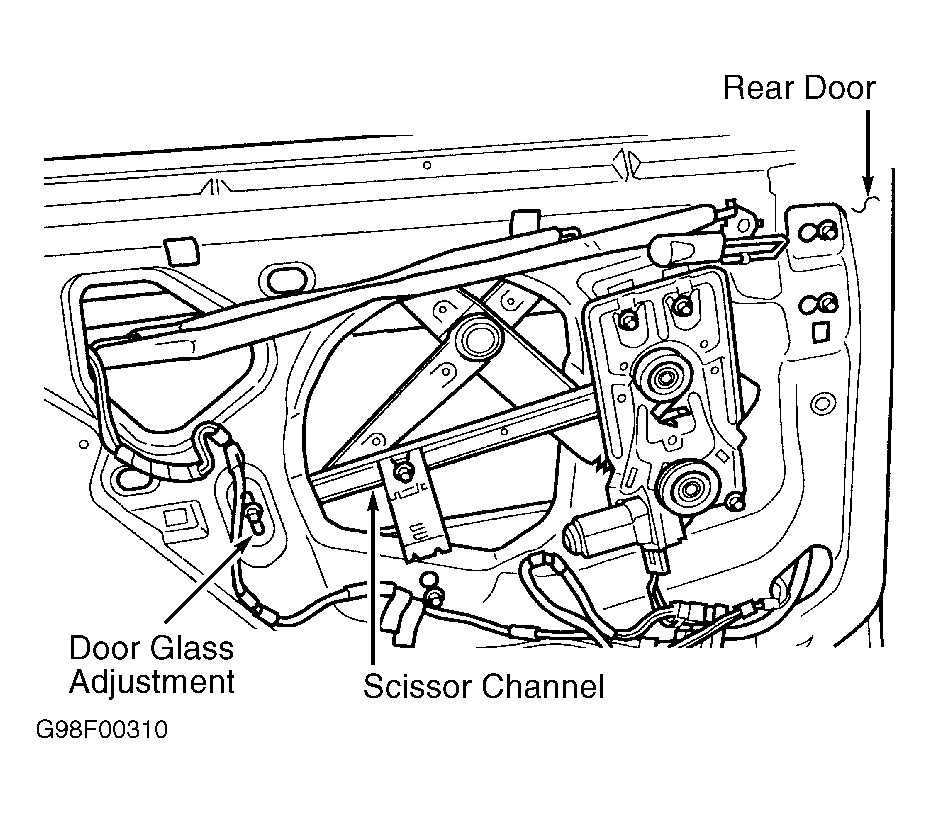

Fig 2: Adjusting Rear Window

Courtesy of CHRYSLER CORP.
