Component Tests: Motor
NOTE:
This test will by-pass power seat switch to determine if switch or specified motor is at fault.
- Remove power seat position switch and disconnect switch from wiring harness. See POWER SEAT SWITCH under REMOVAL & INSTALLATION. Check voltage between terminals No. 5 (Black wire) and No. 1 (Red wire) at power seat switch harness connector. If battery voltage exists, go to next step. If battery voltage does not exist, repair open in power or ground circuits.

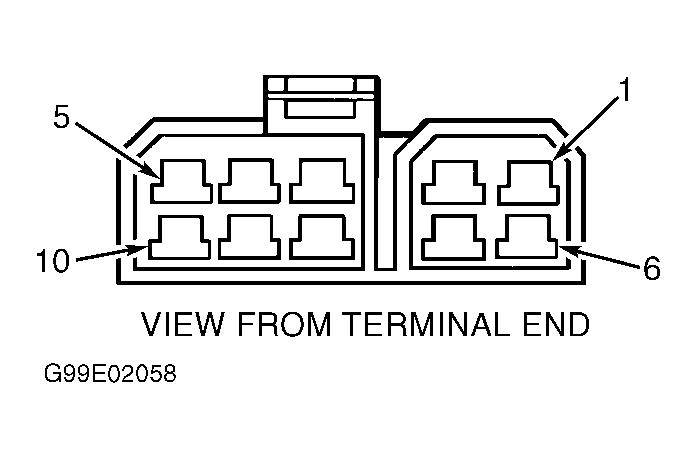

- Using 2 jumper wires, connect one jumper wire to battery supply. Connect second jumper wire to chassis ground. Connect other end of wires to appropriate terminals at power seat switch harness connector. See POWER SEAT MOTOR TESTS table to check seat action. See Fig 1 . Observe motor operation. If motor does not operate, check wiring between power seat switch connector and suspect motor. If wiring is okay, replace motor. See SEAT MOTORS under REMOVAL & INSTALLATION.
POWER SEAT MOTOR TESTS
| Apply Battery Voltage To Terminal No. | Ground Terminal No. | Left Seat Action | Right Seat Action |
|---|---|---|---|
| 9 | 6 | Front Riser Up | Front Riser Down |
| 6 | 9 | Front Riser Down | Front Riser Up |
| 10 | 3 | Forward | Forward |
| 3 | 10 | Backward | Backward |
| 8 | 7 | Rear Riser Up | Rear Riser Down |
| 7 | 8 | Rear Riser Down | Rear Riser Up |
| 4 | 2 | Recliner Up | Recliner Up |
| 2 | 4 | Recliner Down | Recliner Down |
