Vacuum Hose Diagrams

NOTE: References to California models apply to California emission vehicles, which may be verified by underhood Emission Control label. California emissions may be available in other states.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

NOTE: See Fig 1 -Fig 13 for vacuum diagrams. Vacuum diagrams for applications not shown are not available.

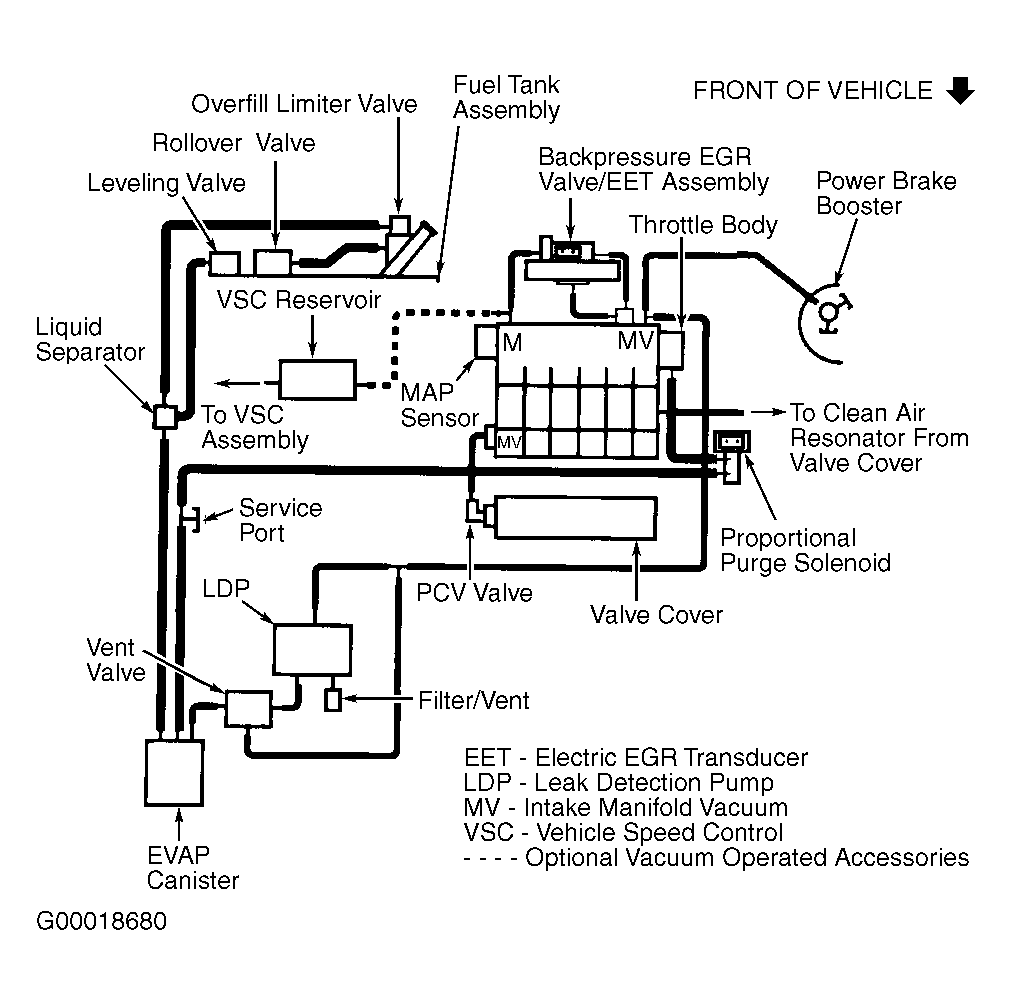

Fig 1: Vacuum Hose Diagram (Avenger & Sebring Coupe - 2.5L)

G00018680

Courtesy of DAIMLERCHRYSLER CORP.

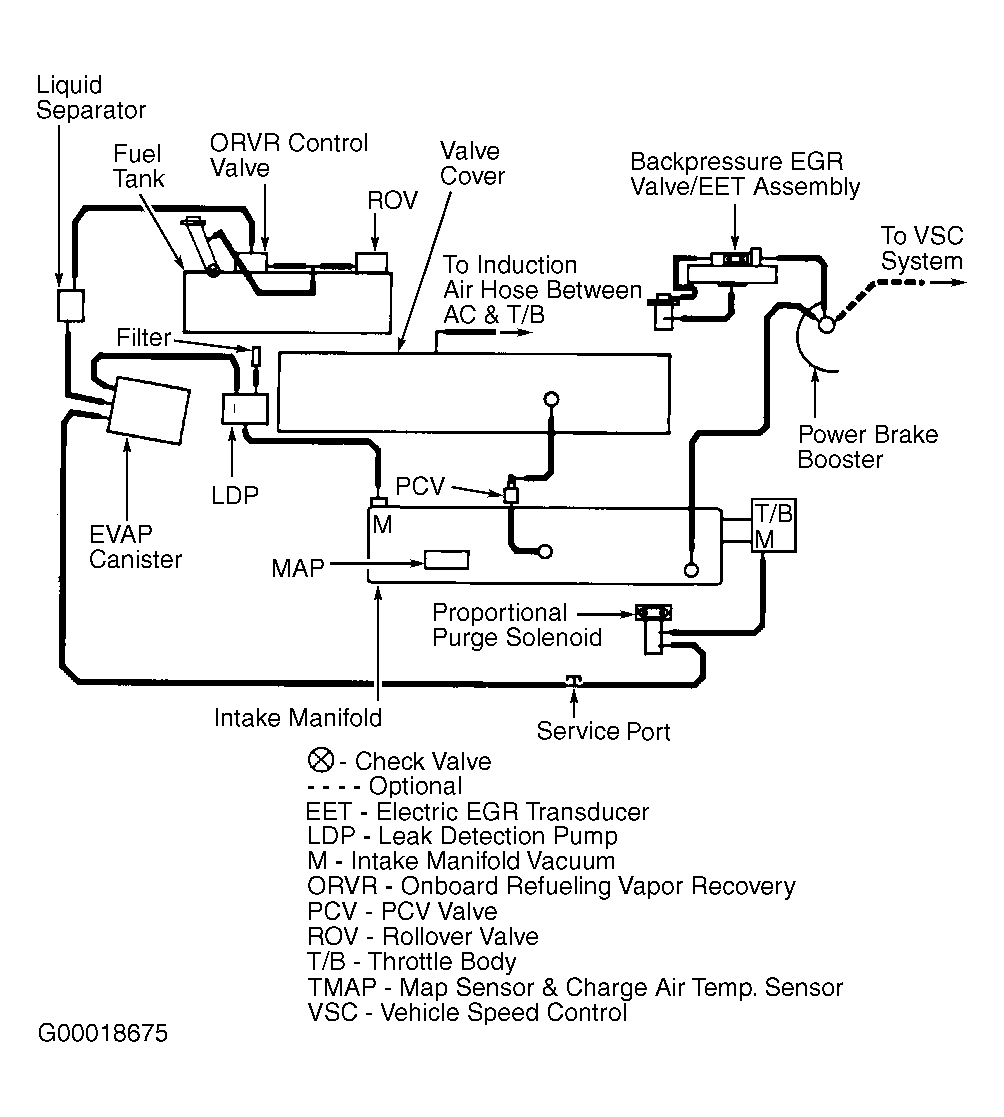

Fig 2: Vacuum Hose Diagram (Breeze, Cirrus & Stratus - 2.0L - Calif. & Northeastern States)

G00018675

Courtesy of DAIMLERCHRYSLER CORP.

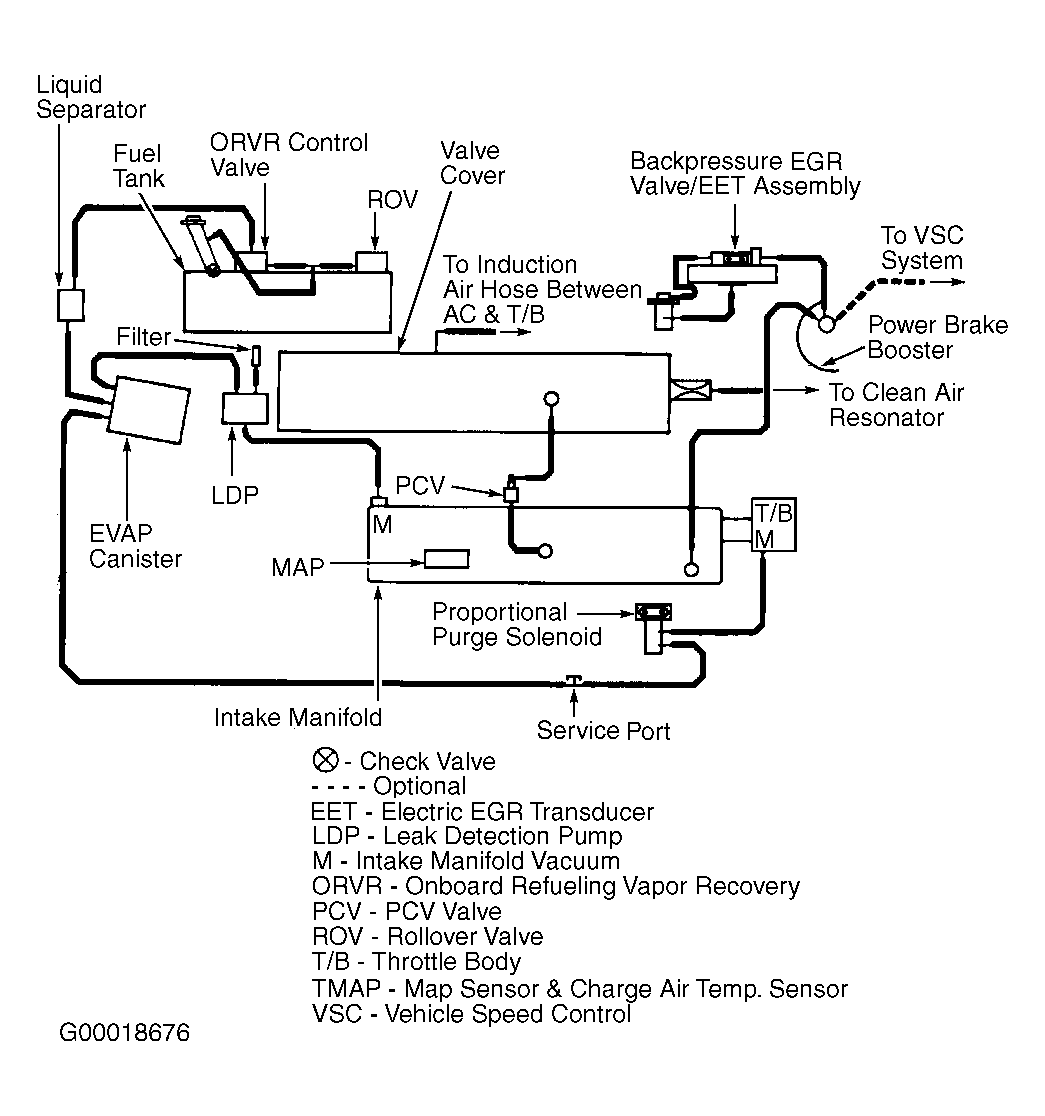

Fig 3: Vacuum Hose Diagram (Breeze, Cirrus & Stratus - 2.4L - Calif. & Northeastern States)

G00018676

Courtesy of DAIMLERCHRYSLER CORP.

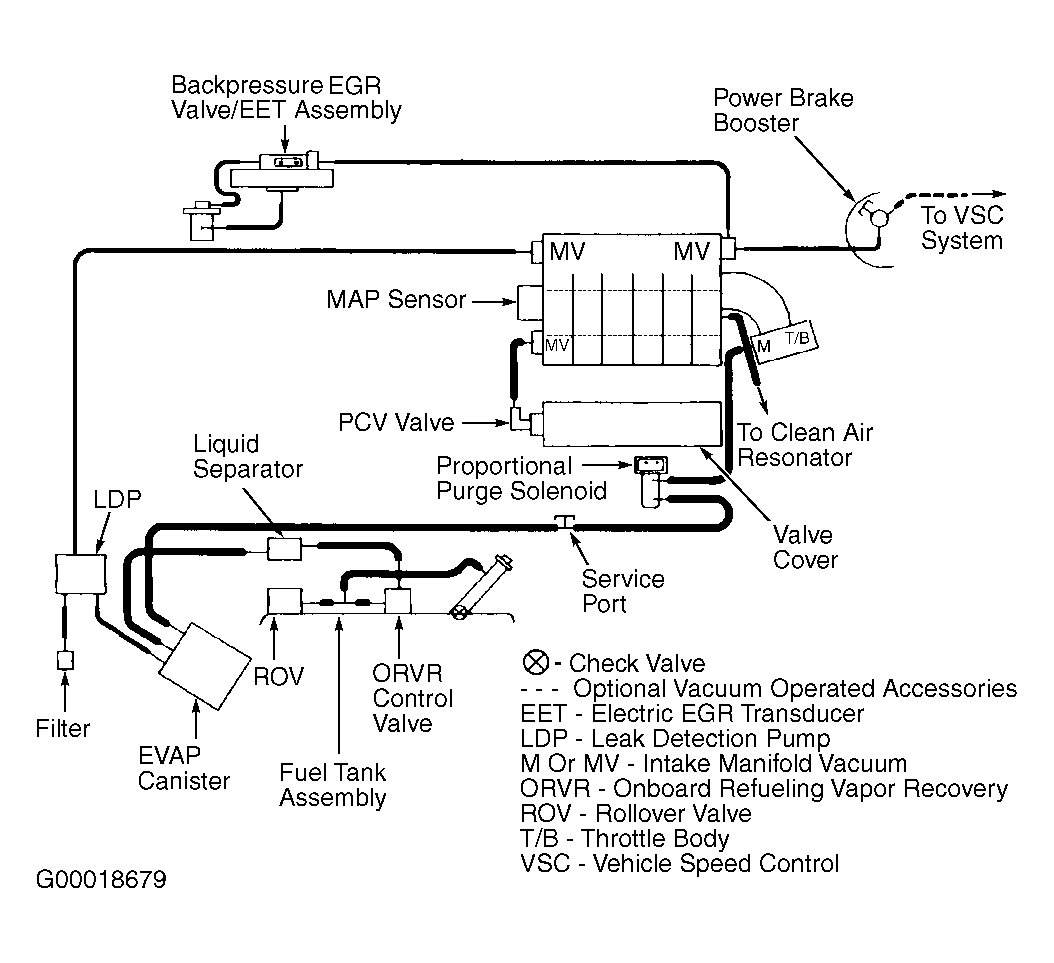

Fig 4: Vacuum Hose Diagram (Breeze, Cirrus, Sebring Convertible & Stratus - 2.5L - Calif. & Northeastern States)

G00018679

Courtesy of DAIMLERCHRYSLER CORP.

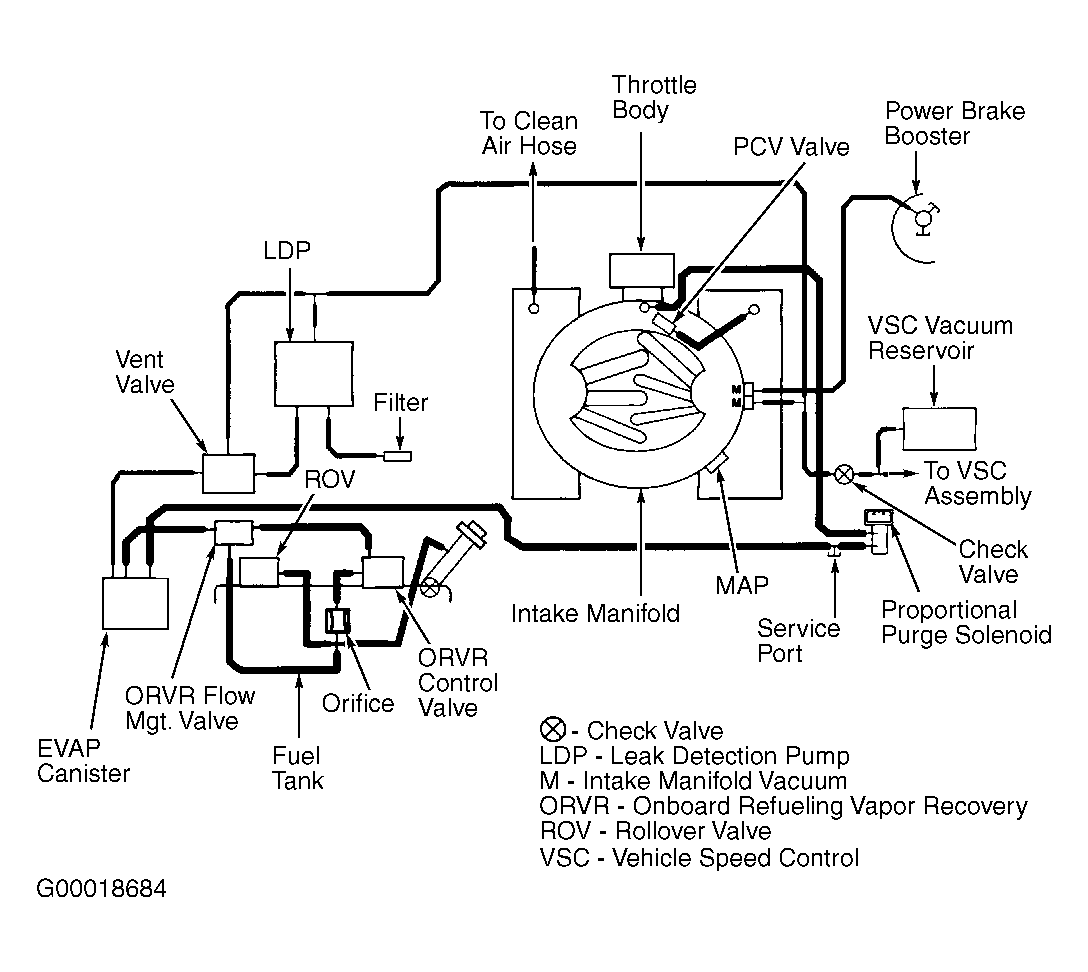

Fig 5: Vacuum Hose Diagram (Concorde & Intrepid - 2.7L - Calif. & Northeastern States)

G00018684

Courtesy of DAIMLERCHRYSLER CORP.

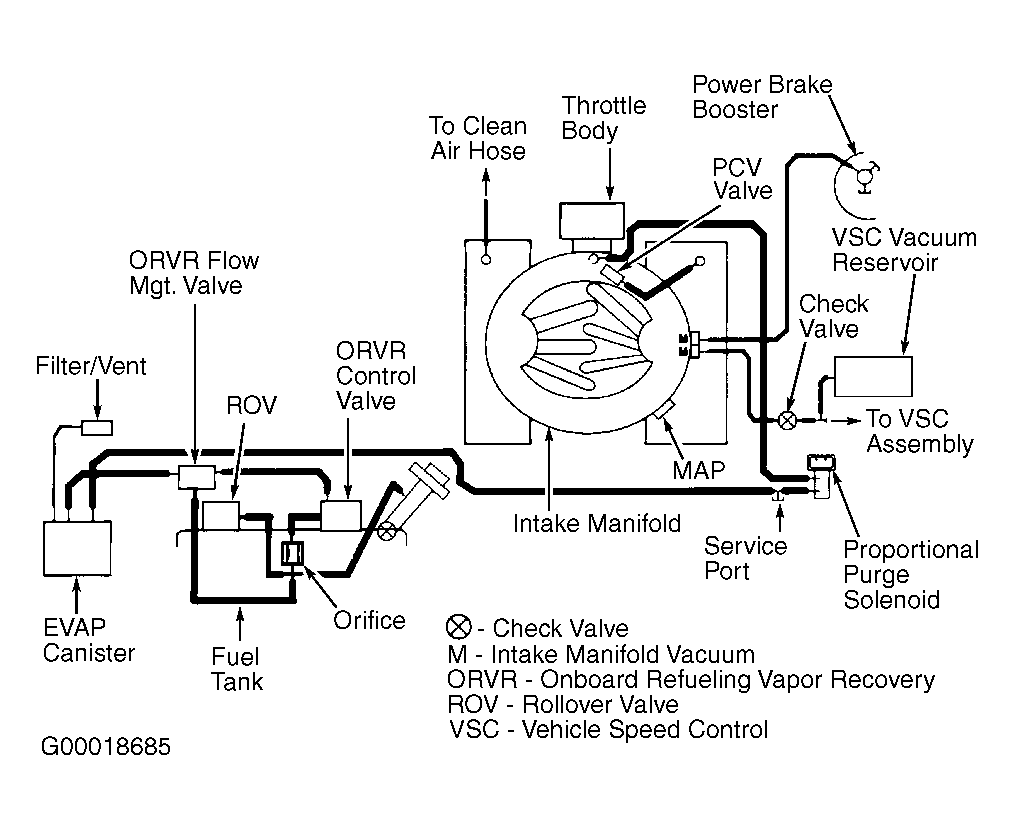

Fig 6: Vacuum Hose Diagram (Concorde & Intrepid - 2.7L - Except Calif. & Northeastern States)

G00018685

Courtesy of DAIMLERCHRYSLER CORP.

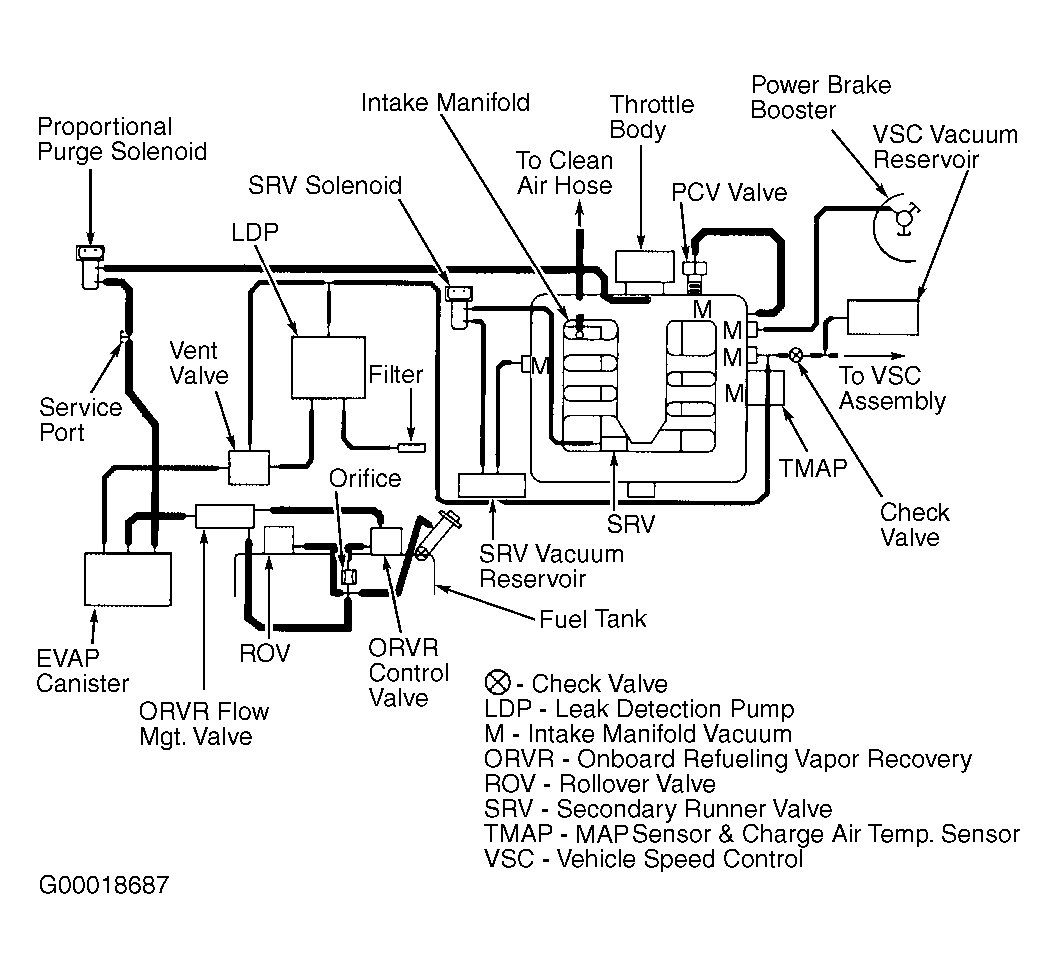

Fig 7: Vacuum Hose Diagram (Concorde & Intrepid - 3.2L - Calif. & Northeastern States)

G00018687

Courtesy of DAIMLERCHRYSLER CORP.

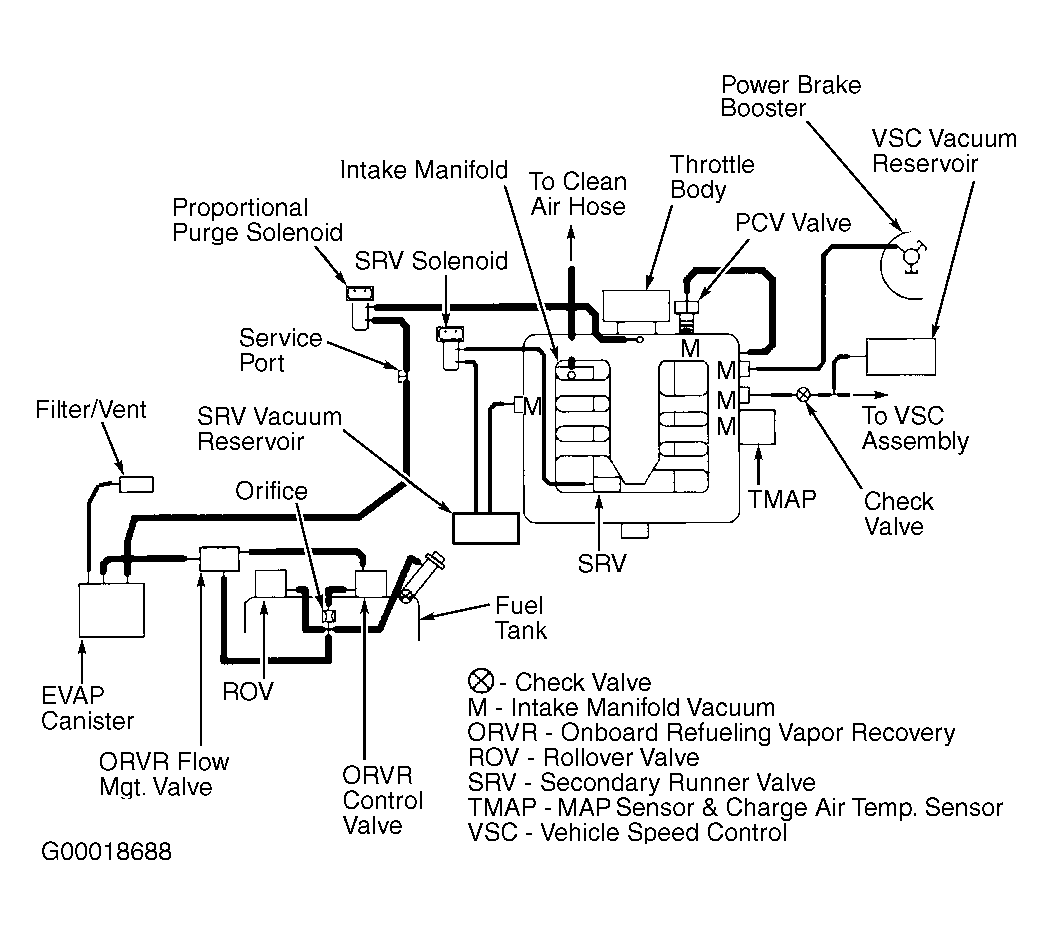

Fig 8: Vacuum Hose Diagram (Concorde & Intrepid - 3.2L - Except Calif. & Northeastern States)

G00018688

Courtesy of DAIMLERCHRYSLER CORP.

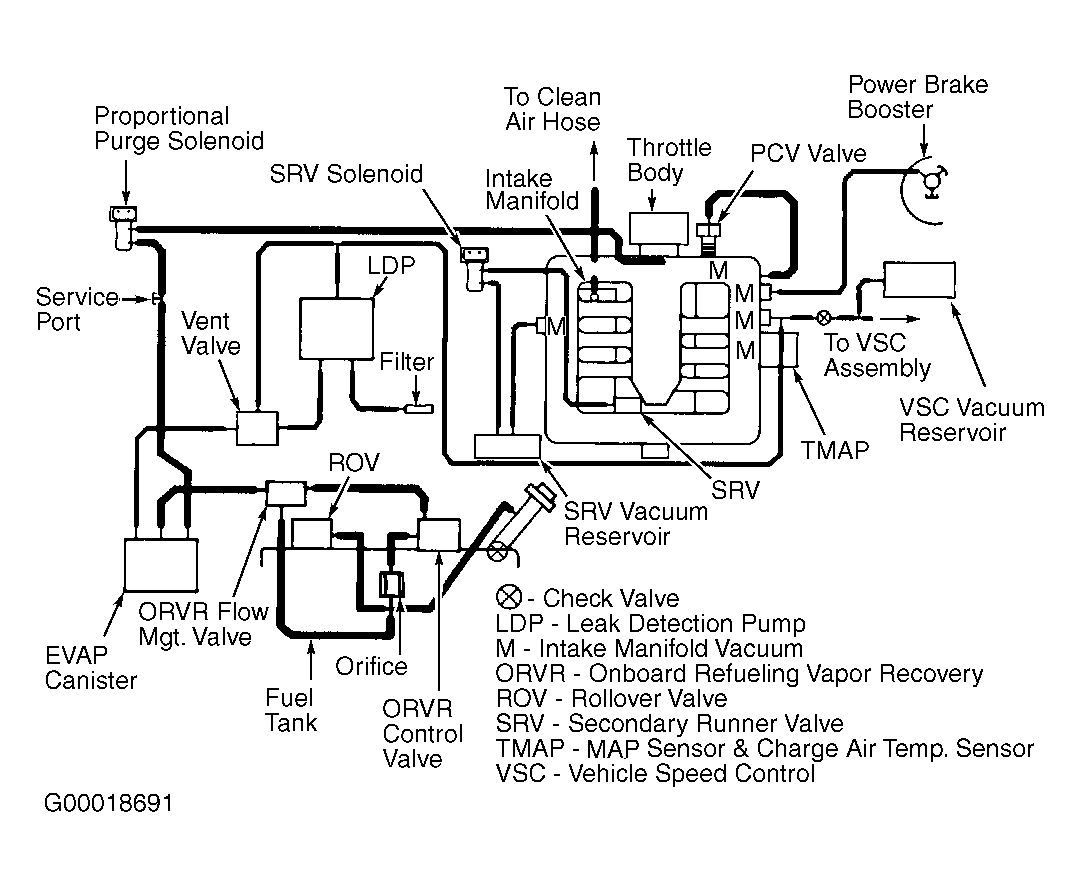

Fig 9: Vacuum Hose Diagram (Intrepid, LHS & 300M - 3.5L - Calif. & Northeastern States)

G00018691

Courtesy of DAIMLERCHRYSLER CORP.

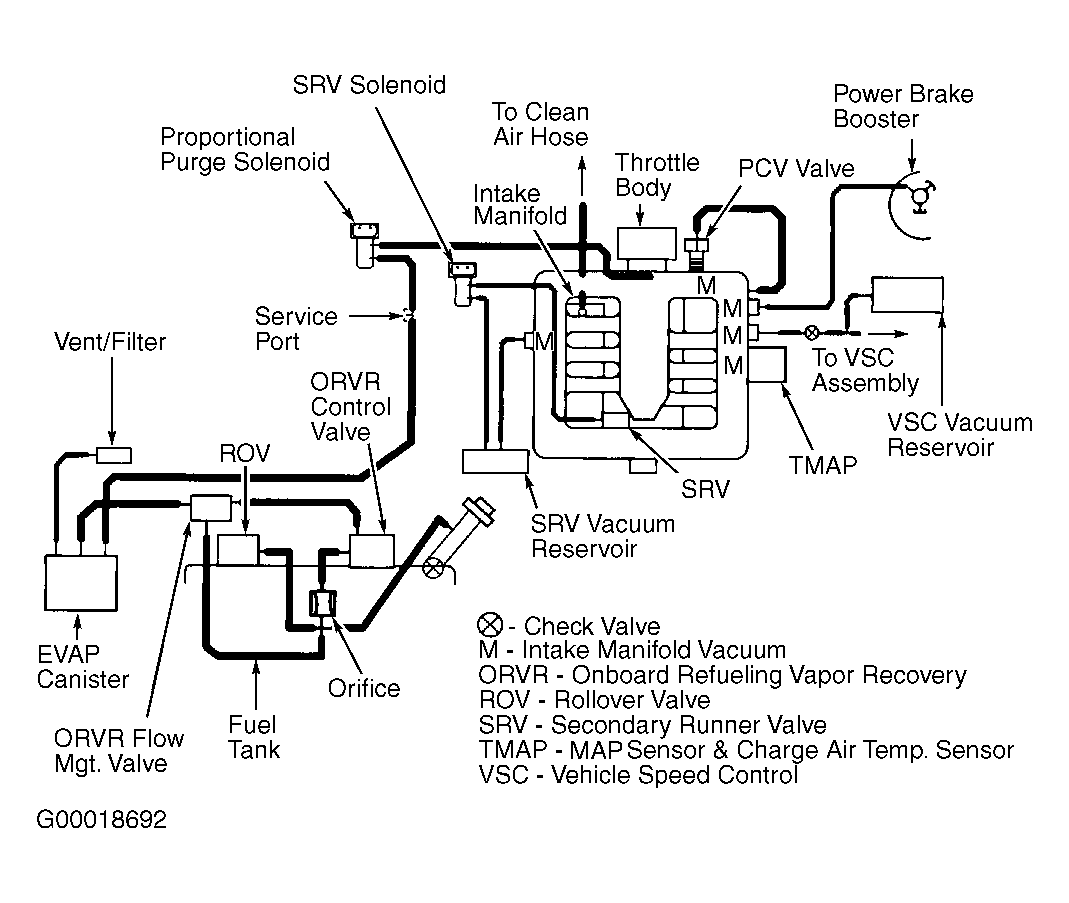

Fig 10: Vacuum Hose Diagram (Intrepid, LHS & 300M - 3.5L - Except Calif. & Northeastern States)

G00018692

Courtesy of DAIMLERCHRYSLER CORP.

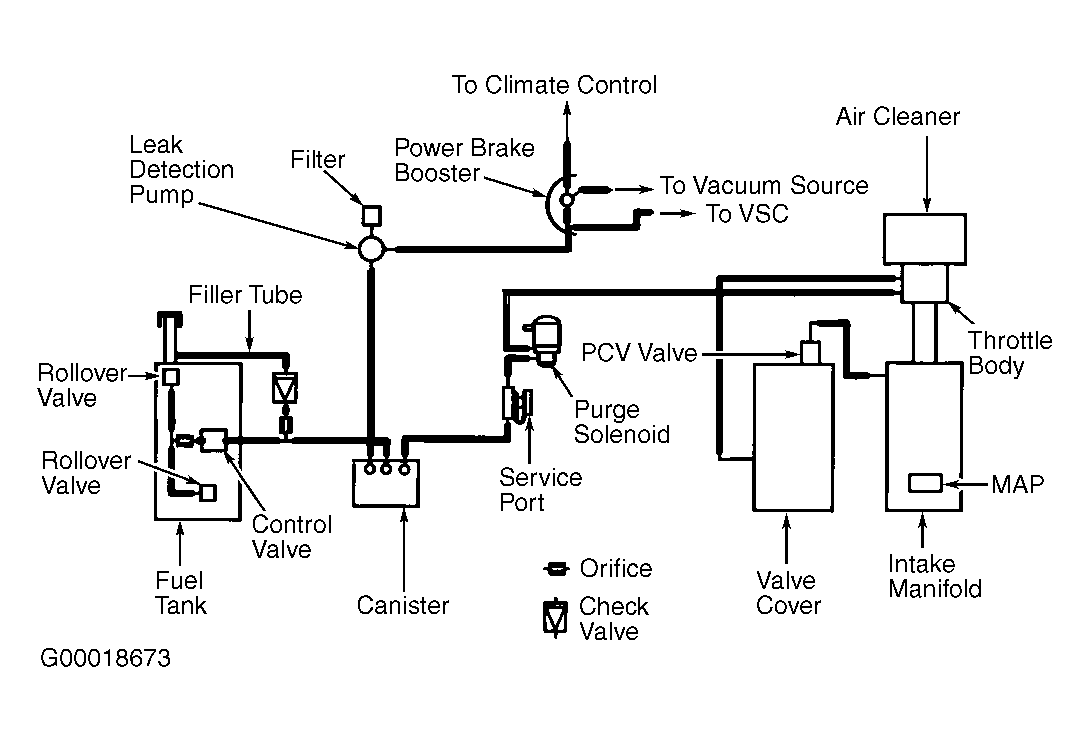

Fig 11: Vacuum Hose Diagram (Neon - 2.0L DOHC - Calif. & Northeastern States)

G00018673

Courtesy of DAIMLERCHRYSLER CORP.

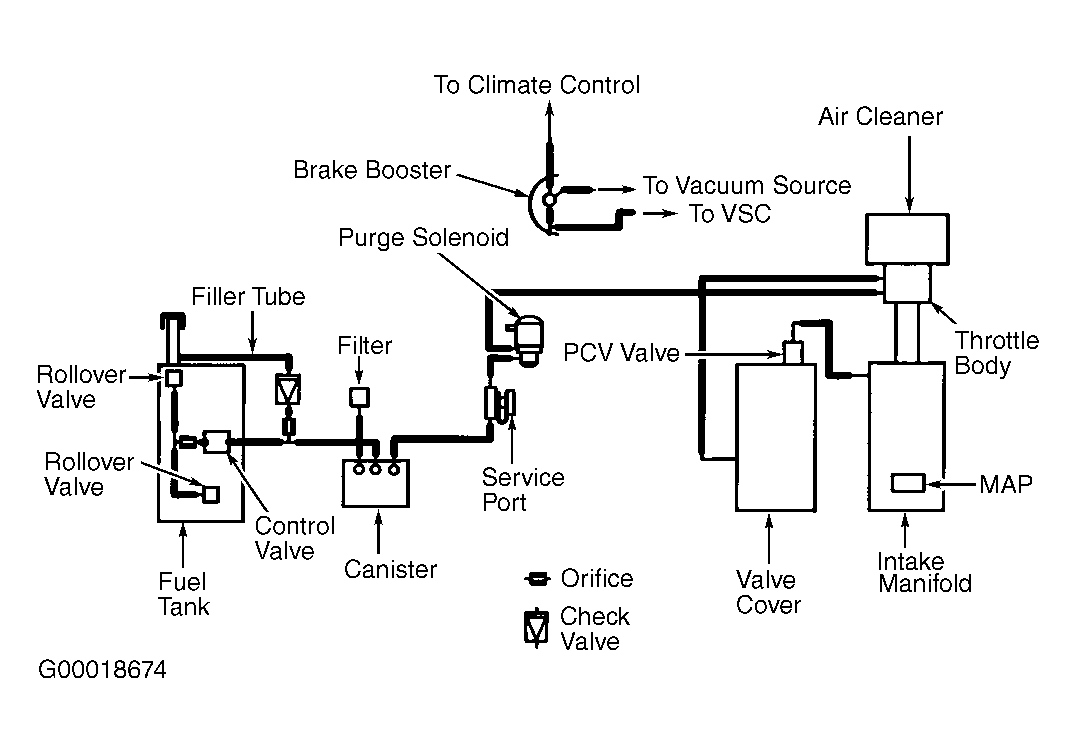

Fig 12: Vacuum Hose Diagram (Neon - 2.0L DOHC - Except Calif. & Northeastern States)

G00018674

Courtesy of DAIMLERCHRYSLER CORP.

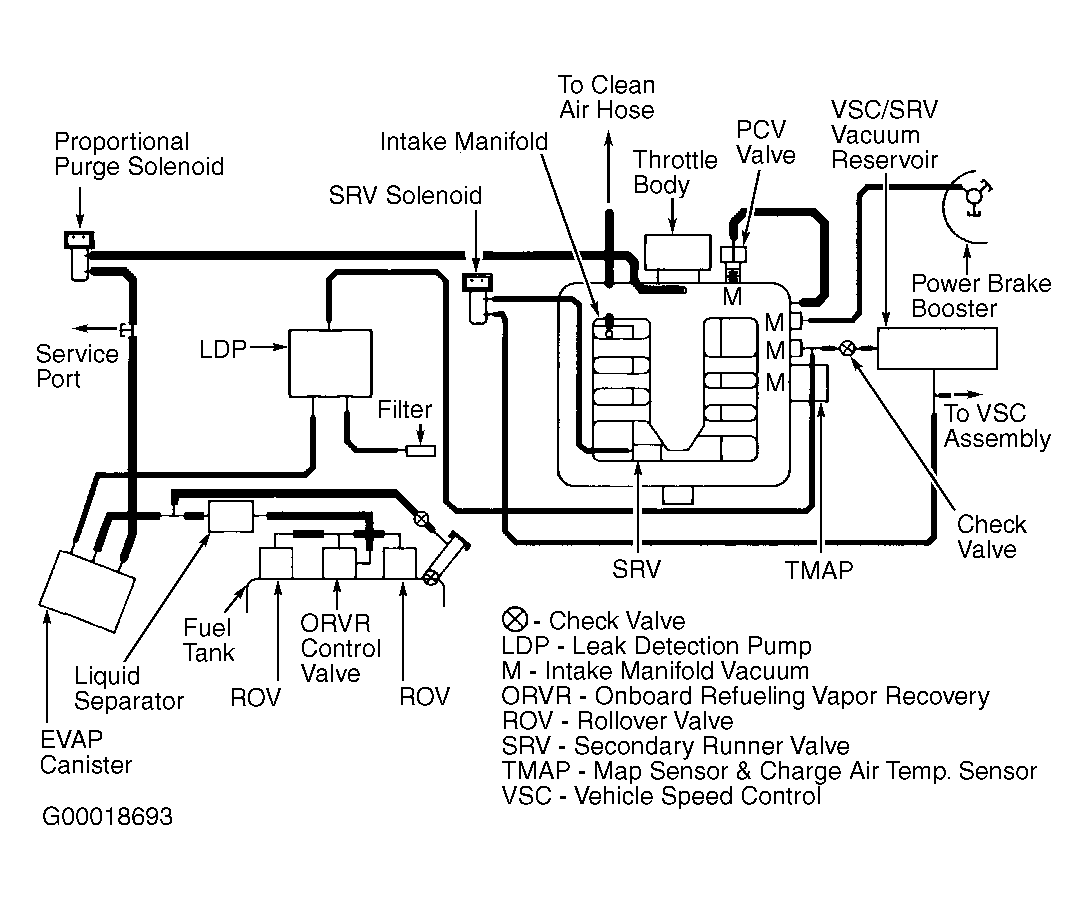

Fig 13: Vacuum Hose Diagram (Prowler - 3.5L)

G00018693

Courtesy of DAIMLERCHRYSLER CORP.
