Special Tools

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

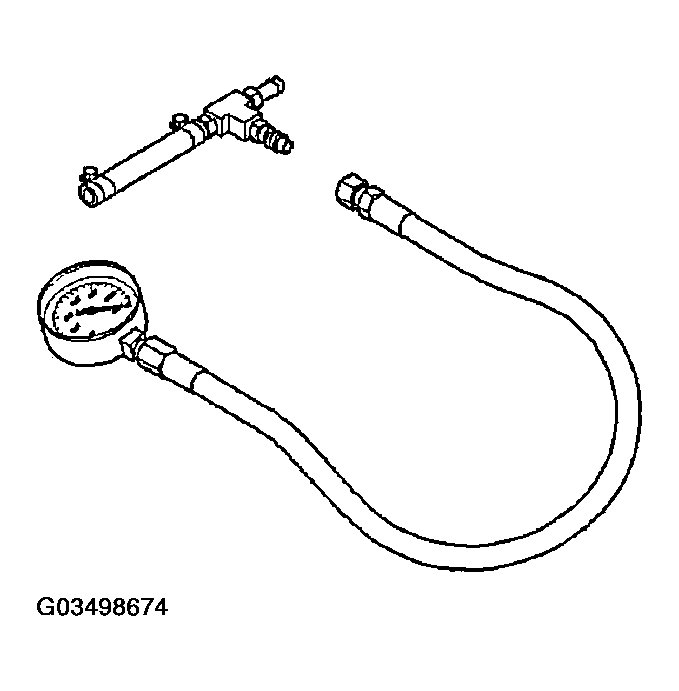

Fig 1: Pressure Gauge Assembly C-4799-B

Courtesy of DAIMLERCHRYSLER CORP.

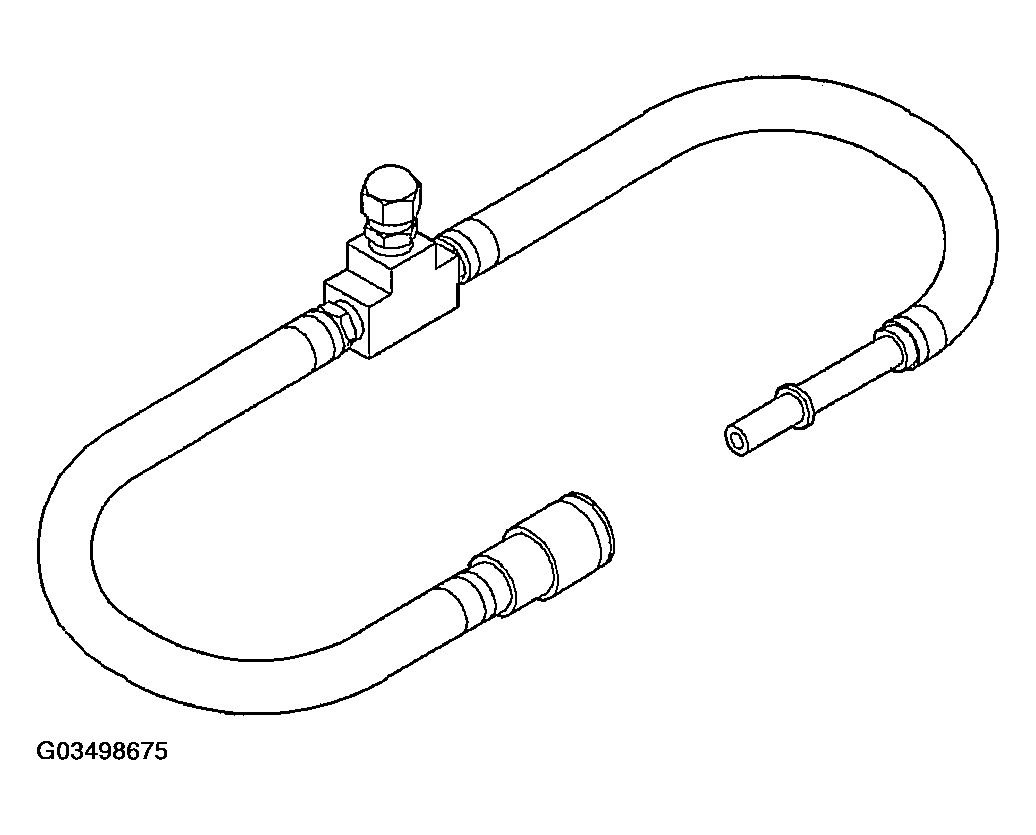

Fig 2: Fuel Pressure Test Adapter 6539

Courtesy of DAIMLERCHRYSLER CORP.

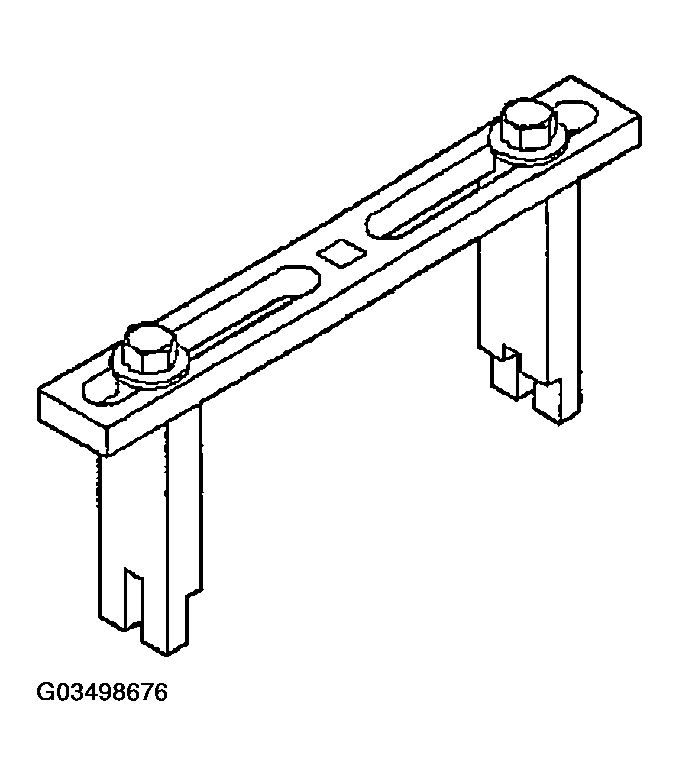

Fig 3: Spanner Wrench 6856

Courtesy of DAIMLERCHRYSLER CORP.

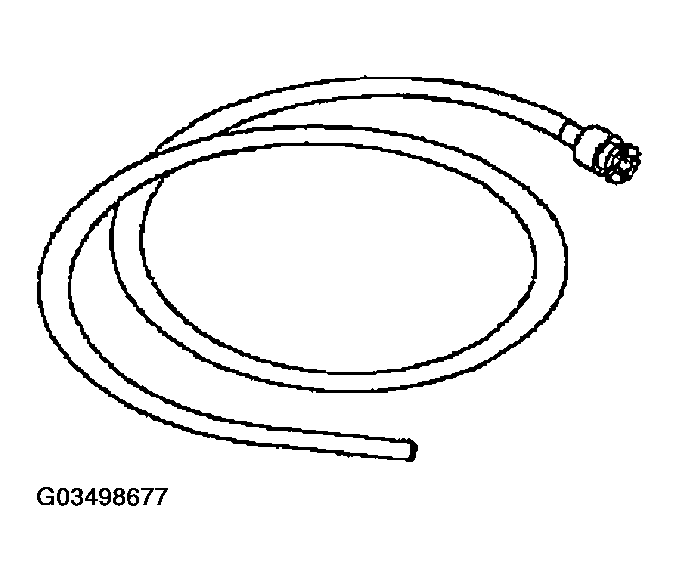

Fig 4: Fuel Line Adapter 1/4

Courtesy of DAIMLERCHRYSLER CORP.

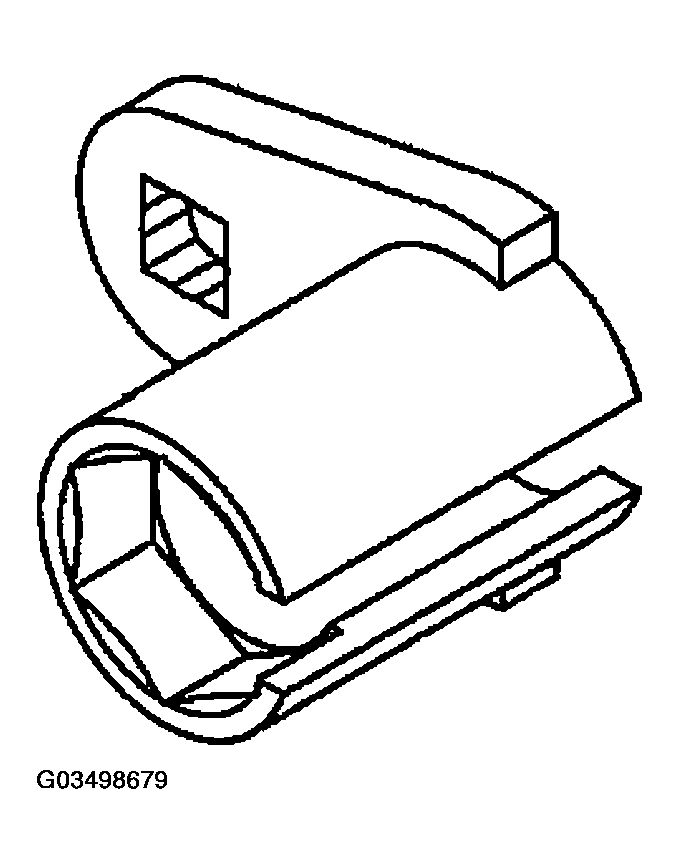

Fig 5: O2S (Oxygen Sensor) Remover/Installer-C-4907

Courtesy of DAIMLERCHRYSLER CORP.

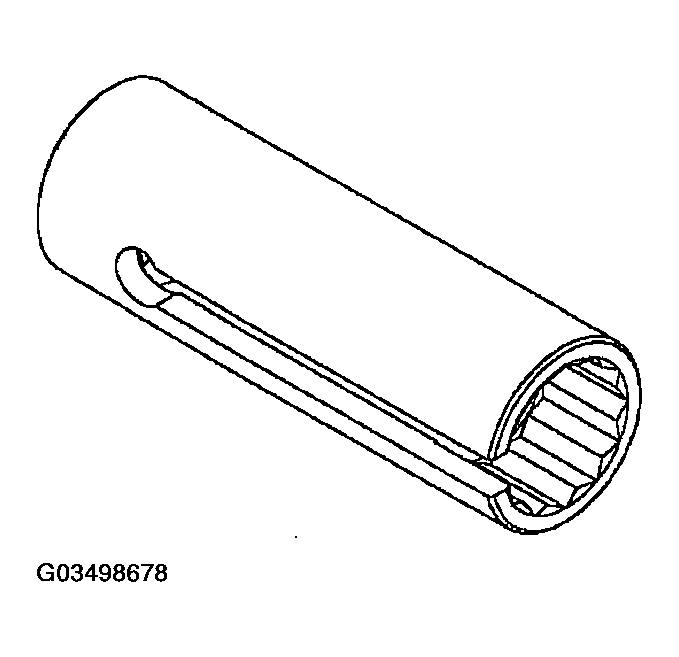

Fig 6: O2S (Oxygen Sensor) Remover/Installer - 8439

Courtesy of DAIMLERCHRYSLER CORP.
