Idle Air Control Motor: Description

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The idle air control motor (IAC) attaches to the throttle body (Fig 1). It is a liner solenoid valve.

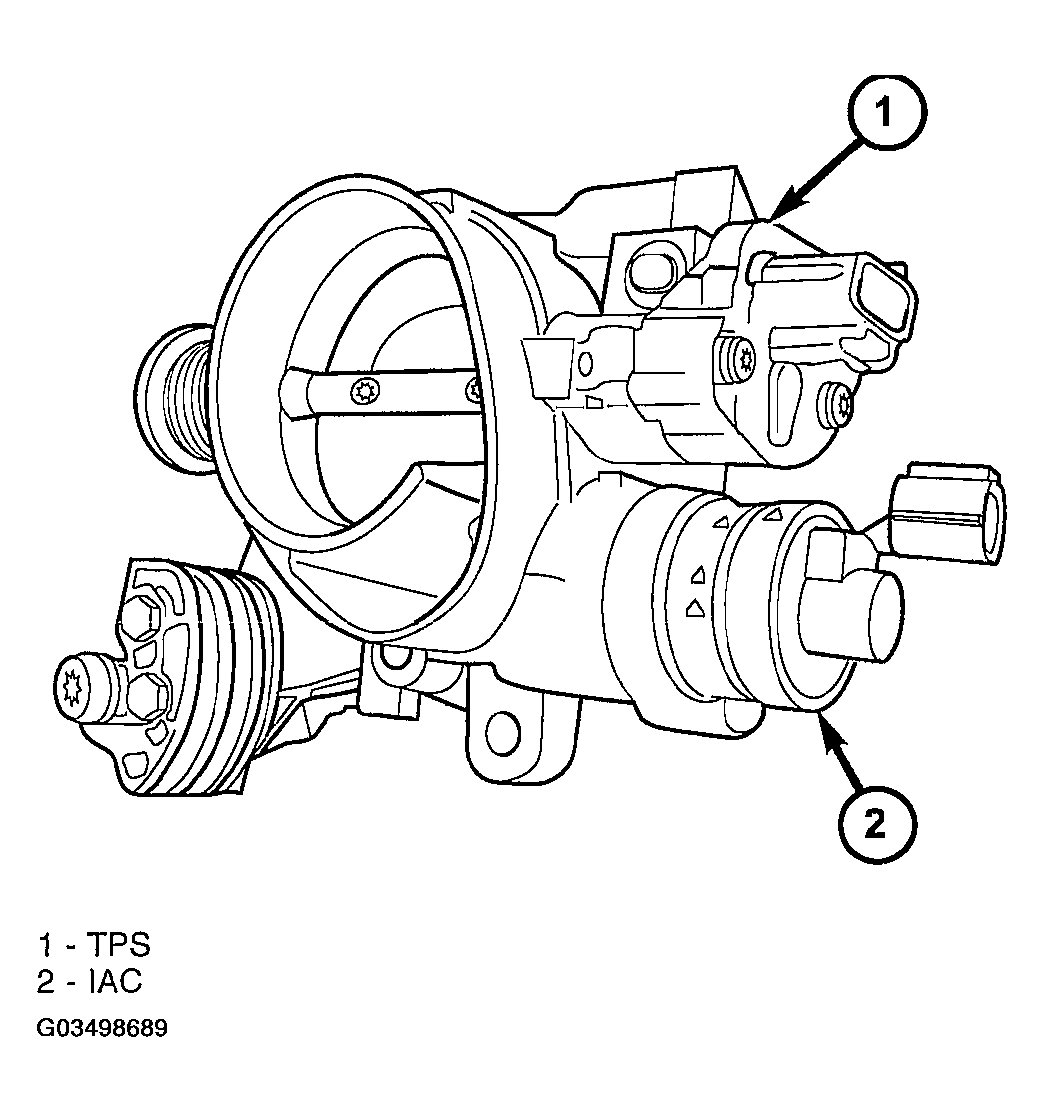

Fig 1: TPS & Idle Air Control Valve
G03498689Courtesy of DAIMLERCHRYSLER CORP.
