Component Locations
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Ambient Temperature Sensor | In Front Of Radiator |
| Body Control Module | On Back Of Junction Block |
| Blend Door Actuator | Under HVAV Housing |
| Combination Flasher | Between Junction Block & Brake Pedal |
| Controller Anti-Lock Brake | Left Side Of Engine Compartment |
| C308 Black Connector | Under Right Side Of Rear Seat |
| Data Link Connector | Under Left Side Of Instrument Panel, Above Brake Pedal |
| Deck Lid Release Switch | Left Side Of Instrument Panel, Above Parking Brake Release |
| Door Lock Switch | On Appropriate Door Panel |
| Headlight Switch | Left Side Of Instrument Panel, Above Deck Lid Release Switch |
| Heated Seat Back Heater | Under Seat Back Cover |
| Heated Seat Cushion Heater | Under Seat Cushion Cover |
| Heated Seat Switch | On Outboard Side Of Appropriate Seat |
| Ignition Switch | In Right Side Of Steering Column |
| Instrument Panel Component Connectors | Behind Instrument Panel |

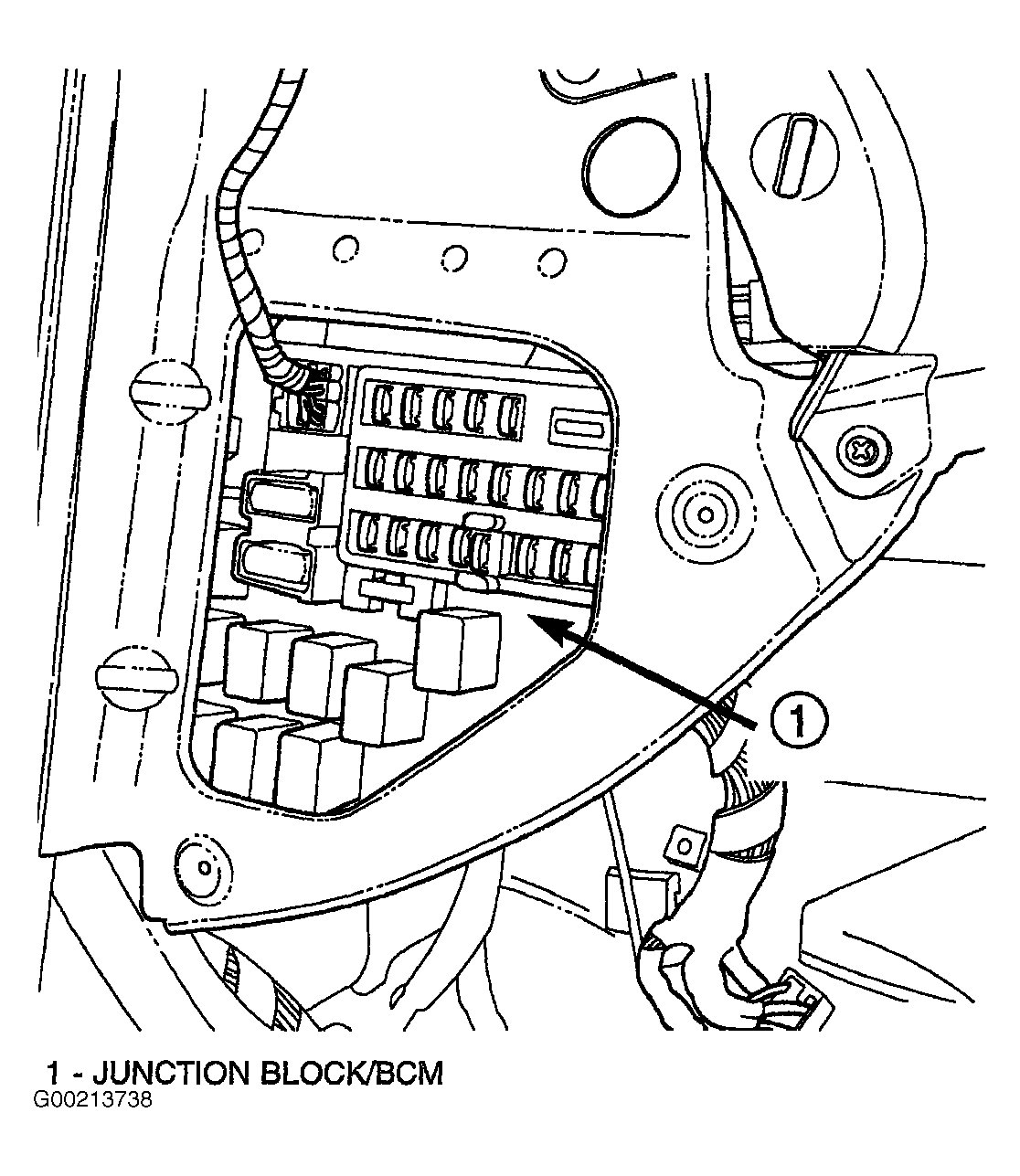

| Junction Block | Behind Left End Of Instrument Panel |
| Memory Heated Seat/Mirror Module | Under Driver Seat |
| Memory Set Switch | On Outboard Side Of Driver Seat |
| Multifunction Switch | On Left Side Of Steering Column |
| Occupant Restraint Controller | On Tunnel Floor Pan, Forward Of Center Console |
| Overhead Travel Information System Module | Front Center Of Headliner |
| Power Distribution Center | Left Side Of Engine Compartment |
| Power Seat Switch | On Outboard Side Of Appropriate Seat |
| Powertrain Control Module | Left Side Of Engine Compartment |
| Rear Window Defogger Relay | Right Side Of Trunk |
| Remote Keyless Entry Module | Between BCM & Junction Block, On Back Of Junction Block |
| Seat Motor Sensors | On Seat Motors, Under Appropriate Seat |
| Sentry Key Immobilizer Module | In Steering Column, By Ignition Switch |
| Speed Proportional Steering Solenoid Connector | Under Brake Master Cylinder |
| Sun Sensor/Vehicle Theft Security System Indicator | Top Center Of Instrument Panel |
| Transmission Control Module | Left Side Of Engine Compartment |
| Traction Control Switch | In Right Upper Trim Bezel, To Right Of Steering Column |
| Hazard Switch | On Top Of Steering Column |
| Washer Fluid Level Switch | In Washer Fluid Reservoir, Left Front Corner Of Engine Compartment |
| Washer Pump Motor | In Bottom Of Washer Reservoir, Left Front Corner Of Engine Compartment |
| Washer Reservoir | Left Front Corner Of Engine Compartment |
| Wiper/Washer Switch | Part Of Multifunction Switch, On Left Side Of Steering Column |
