Component Locations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations, see Fig 1-Fig 4 .

COMPONENT LOCATION

Application	Location
Brake Switch	Near Top Of Brake Pedal
Data Link Connector	Under Left Side Of Instrument Panel
Power Distribution Center	Left Front Corner Of Engine Compartment
Powertrain Control Module	Left Front Corner Of Engine Compartment
Speed Control Servo	Left Front Corner Of Engine Compartment
Speed Control Switches	Each Side Of Lower Portion Of Steering Wheel
Transmission Control Module	Left Front Corner Of Engine Compartment
Transmission Range Sensor	Top Of Valve Body, Inside Transmission

Fig 1: Locating Data Link Connector

Courtesy of CHRYSLER CORP.

Fig 2: Locating Engine Compartment Components & Connectors

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Instrument Panel Components & Connectors

Courtesy of DAIMLERCHRYSLER CORP.

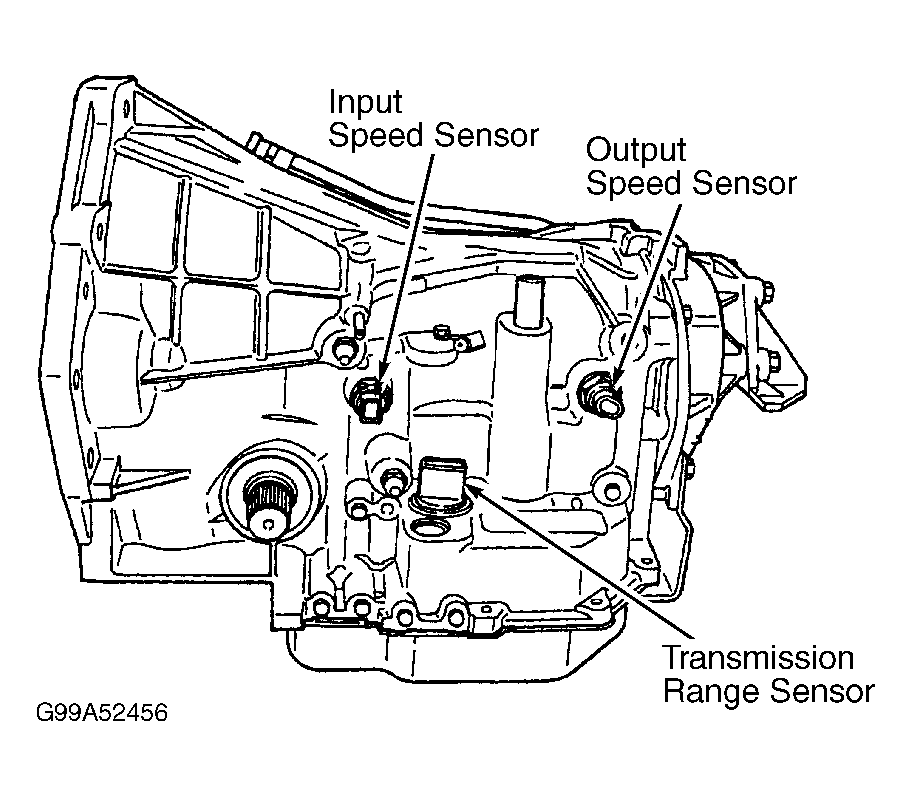

Fig 4: Locating Transmission Range Sensor

Courtesy of DAIMLERCHRYSLER CORP.
