Installation (3.5L)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide speed control cable into bracket and with locator positioned into notch in bracket, then slide throttle cable into bracket and engage retaining tab.
  2. Rotate the throttle cam forward to the wide open position and install speed control cable clasp.

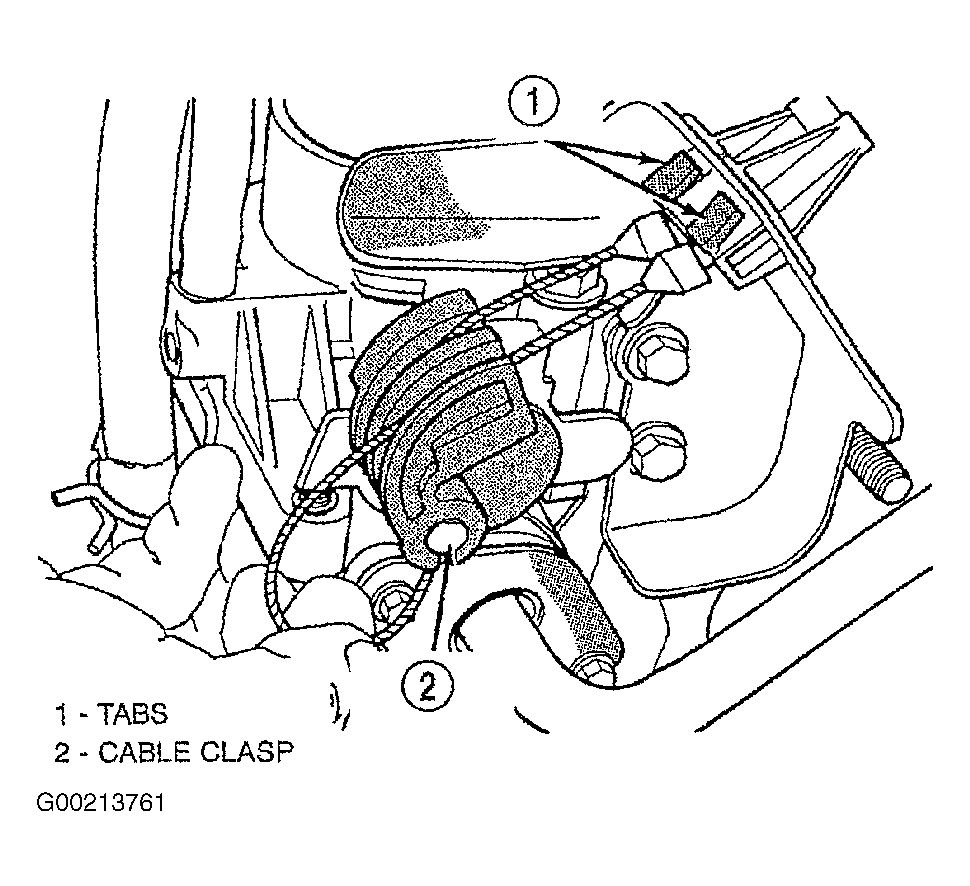

  3. Rotate the throttle cam forward to the wide open position and install throttle cable clasp. See Figure.
  4. Install throttle cable bracket and tighten bolts.
  5. Route cable through bracket and install retaining clip to cable at servo.
  6. Insert servo studs through holes in mounting bracket and speed control cable.
  7. Install nuts and tighten. See TORQUE SPECIFICATIONS .
  8. Connect vacuum hose to servo.
  9. Connect electrical connector.
  10. Install servo and bracket and tighten bolts.
  11. Connect negative battery cable.
