Ambient Temperature Sensor Circuit: Removal

WARNING: This page is about a different car, the 2003 Chrysler Concorde, 2003 Chrysler 300M, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post. See Fig 1 .
Raise and support the vehicle on safety stands.
From behind front bumper fascia, remove the screw attaching the ambient temperature sensor to radiator closure panel. See Fig 2 .

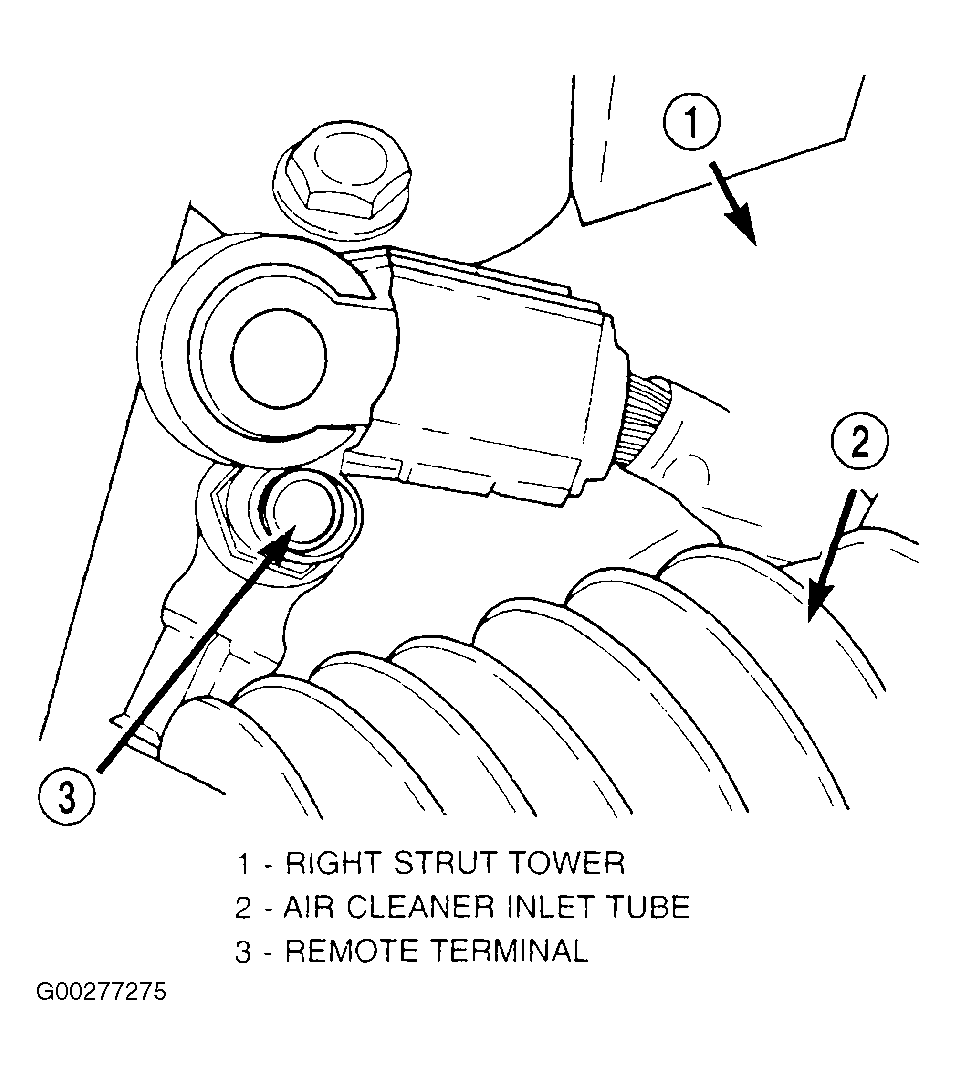

Fig 1: Identifying Negative Battery Cable Remote Terminal

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Ambient Temperature Sensor

Courtesy of CHRYSLER CORP.
