Computer Mini-Trip Computer: Removal

WARNING: This page is about a different car, the 2003 Chrysler Concorde, 2003 Chrysler 300M, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. See OVERHEAD CONSOLE .
Remove the mounting screws and release the map lamp wire connector from the CMTC. See Fig 1 .
Remove the CMTC from the overhead console.

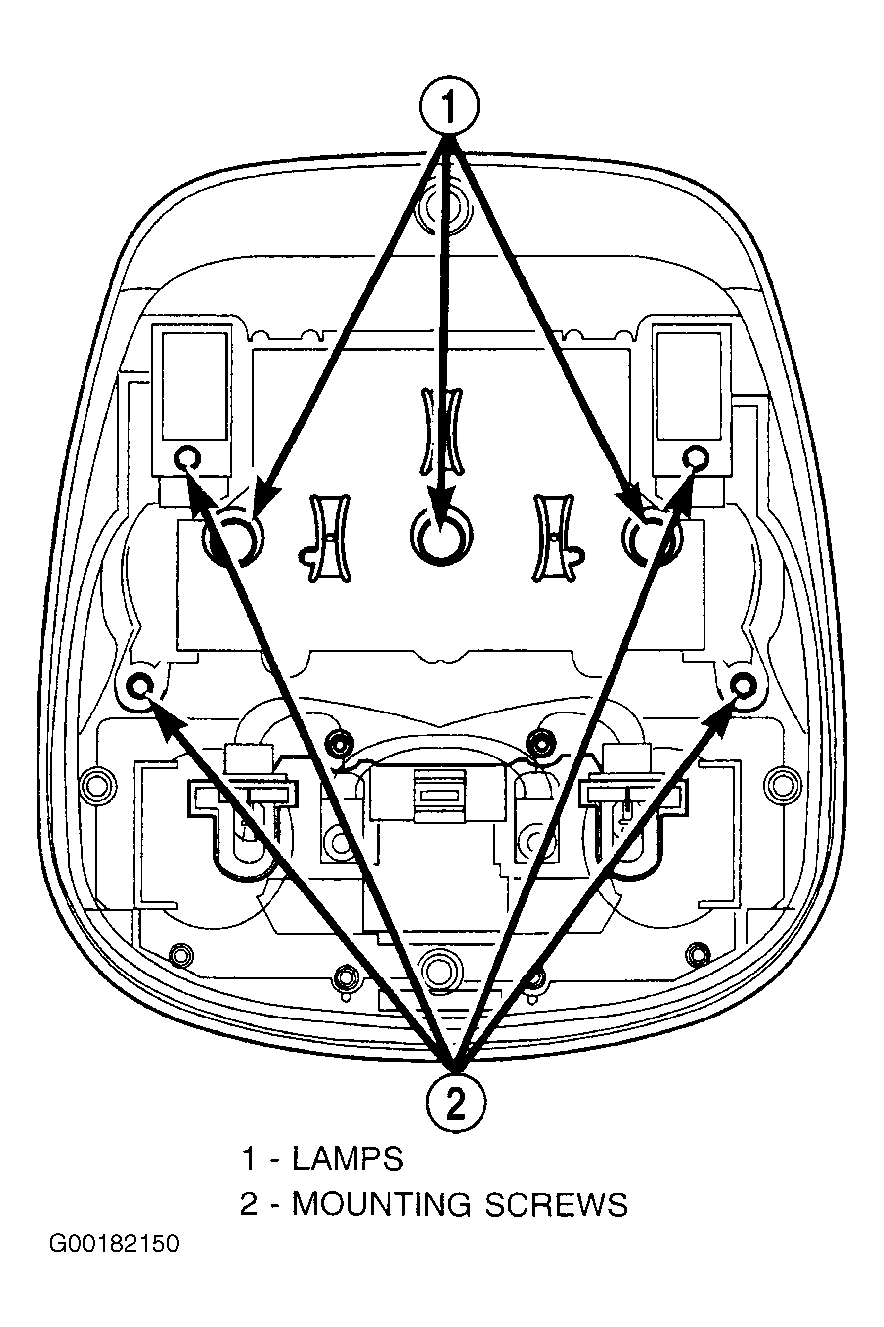

Fig 1: Removing CMTC Retaining Screws

Courtesy of CHRYSLER CORP.
