Memory Heated Seat/Mirror Module: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Position the drivers seat as far upward and rearward as possible.
Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
WARNING: SOME VEHICLES ARE EQUIPPED WITH SEATBACK MOUNTED AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
Remove the two module attaching screws (Fig 1 )

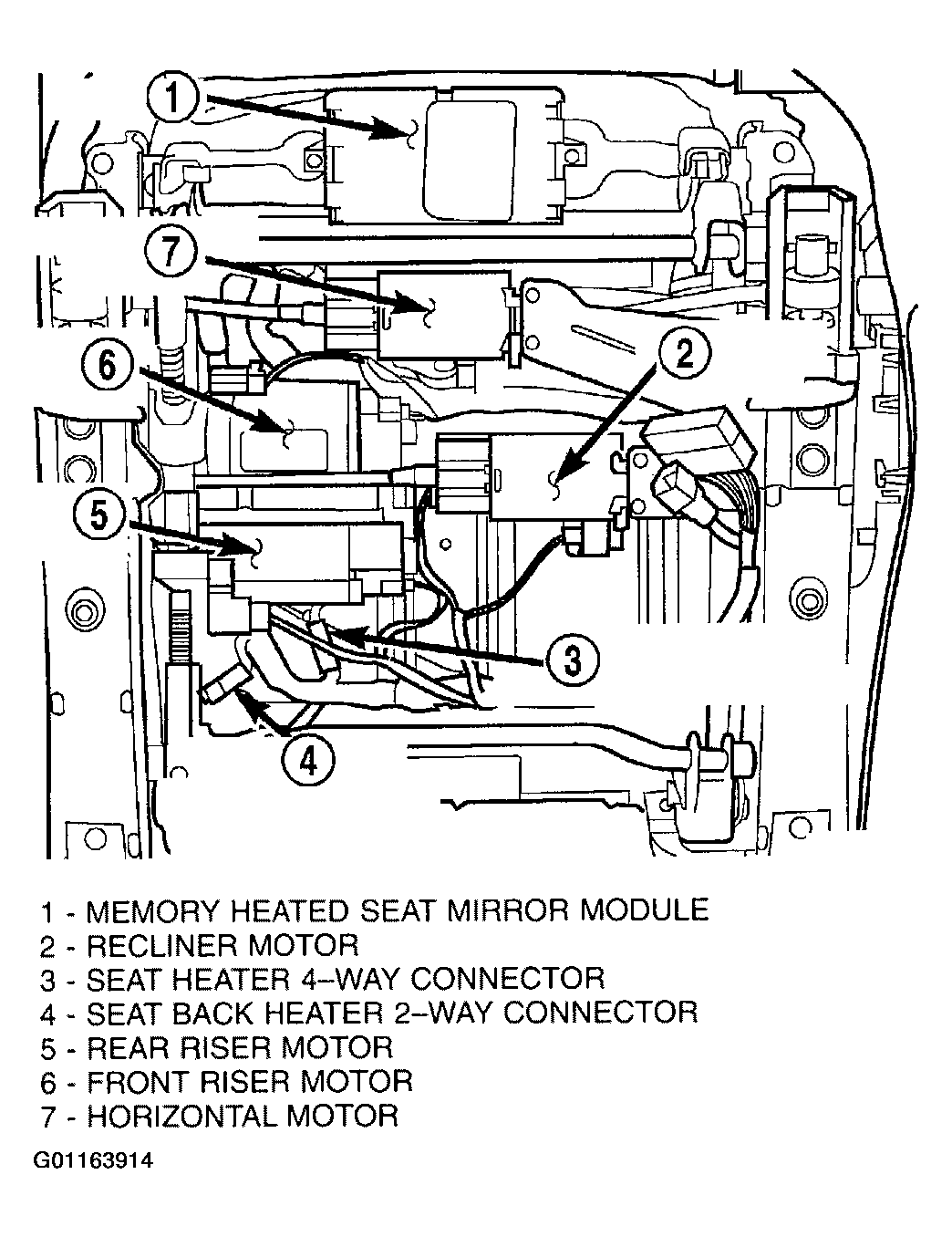

Fig 1: Locating Memory Heated Seat/Mirror Module (MHSMM)
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the module electrical connectors.
Remove the module from drivers seat.
