Sentry Key Immobilizer Module: Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the SKIM is replaced with a new unit, a DRB III(R) scan tool and the BODY DIAGNOSTIC PROCEDURES
article MUST be used to initialize the new SKIM and to program at least two Sentry Key transponders.

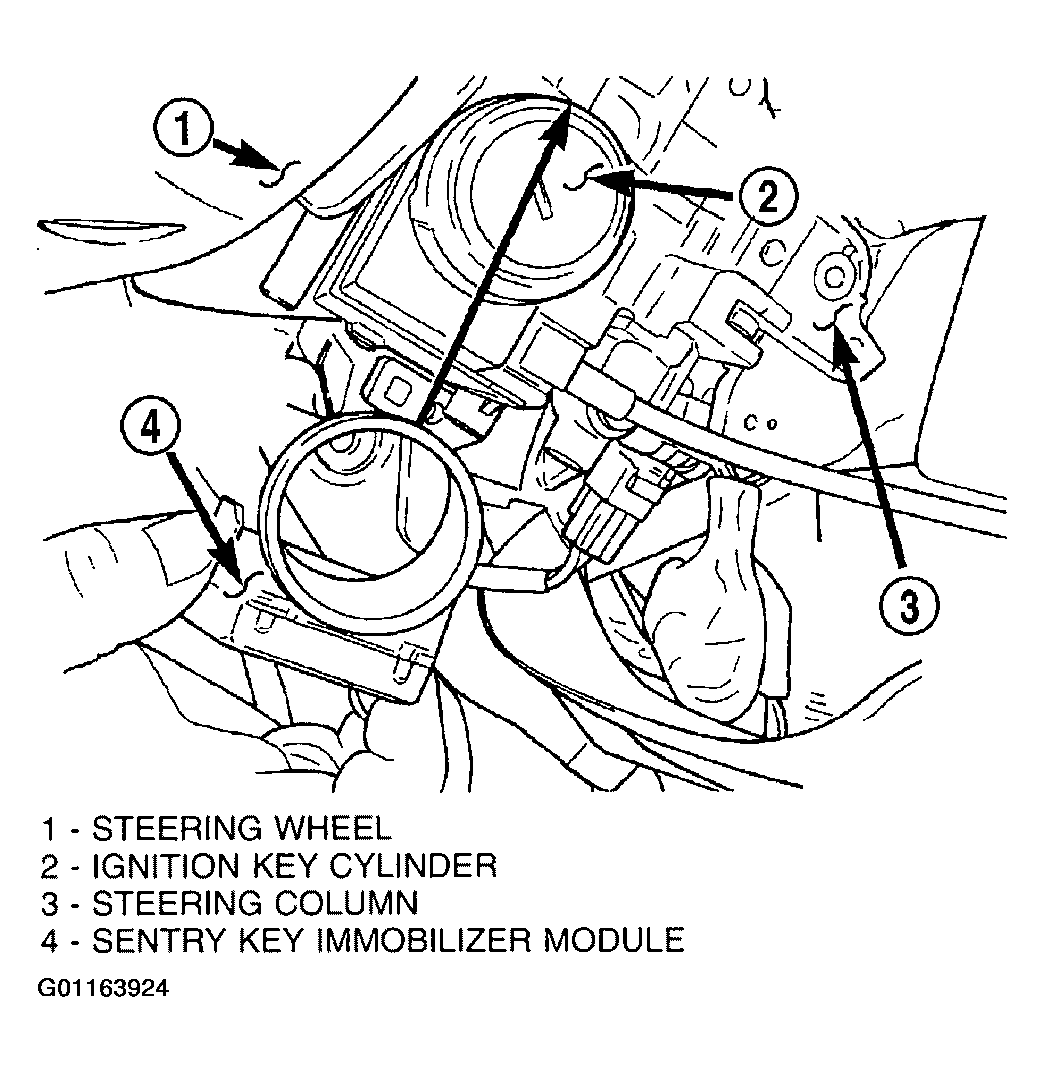

- Slide the SKIM toward the steering column making sure the SKIM antenna ring is around the ignition cylinder housing (Figure ).
- Install the one screw securing the SKIM to the bottom of the steering column.
- Engage the steering column wire harness to the sentry key immobilizer Module (SKIM).
- Install the steering column upper and lower shrouds.
- Install knee blocker.

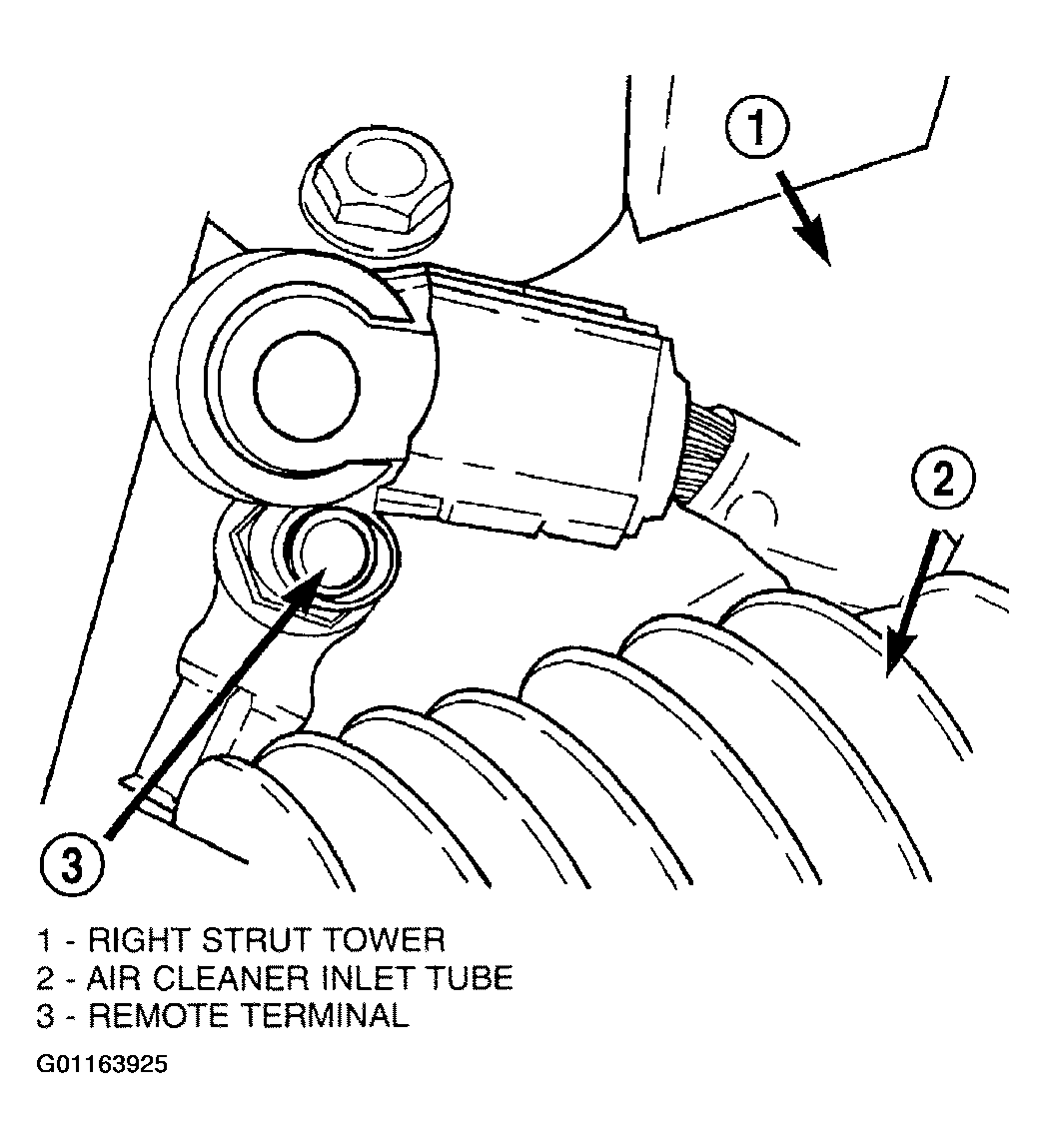

- Connect the negative battery cable remote terminal onto the remote battery post (Figure ).
