Installation - 2.7L
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Slide cable into throttle cable bracket and engage retaining tabs.

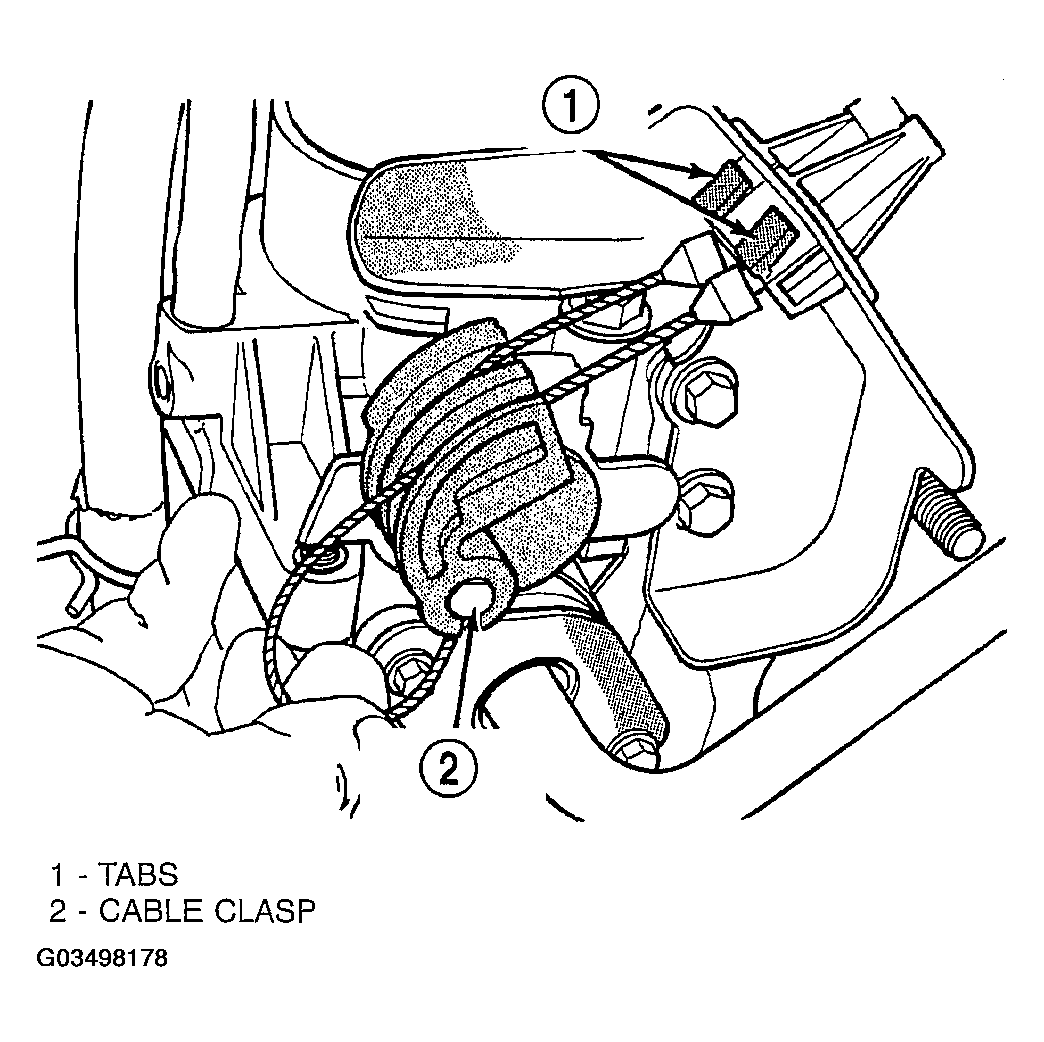

- Rotate the throttle cam forward to the wide open position and install speed control cable clasp (Fig 1 ).
- Rotate the throttle cam forward to the wide open position and install throttle cable clasp.
- Install retaining clip to cable at servo.
- Insert servo studs through holes in the mounting bracket and speed control cable.
- Install nuts, tighten to 6.7 N.m (60 in.lbs.).
- Connect vacuum hose to servo.
- Connect electrical connector.
- Install servo and bracket and tighten nuts and bolt.
- Connect negative battery cable.
