Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

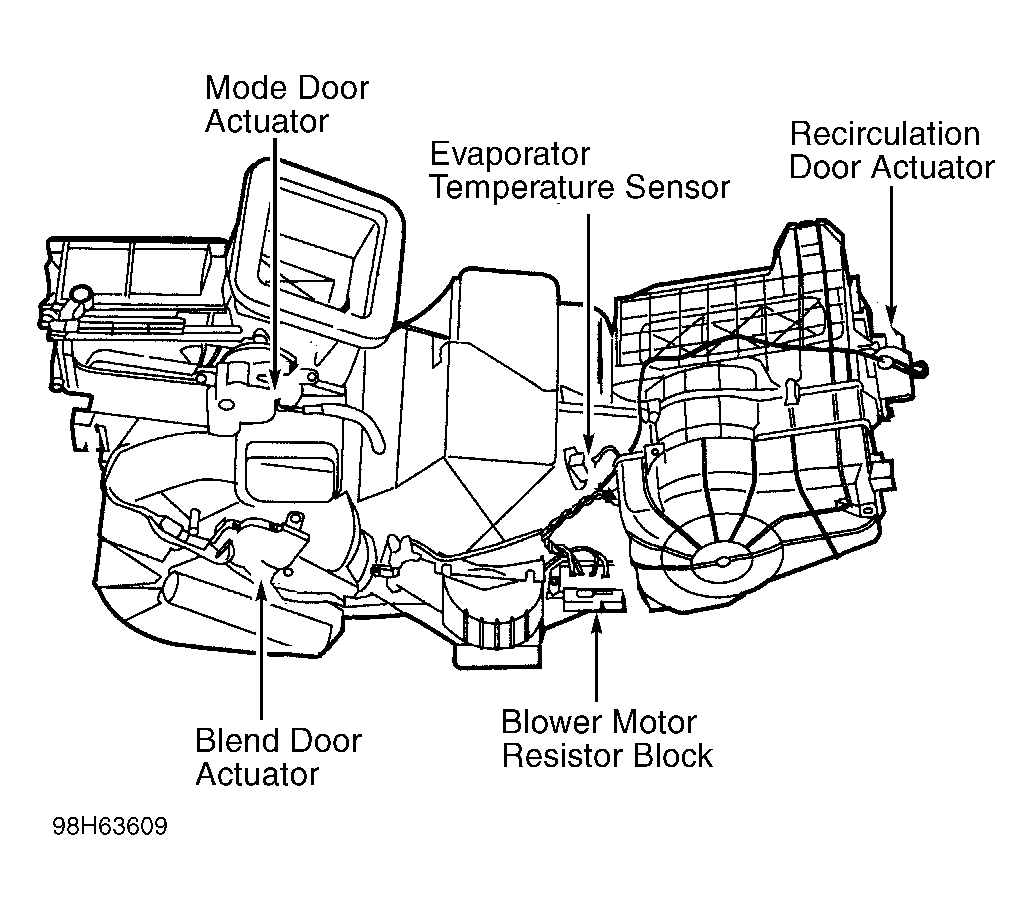

| Blower Motor Resistor Block | On lower right side of HVAC housing. See Figure. |
| Clockspring No. 1 | Behind steering wheel, in steering column. See Figure. |
| Clockspring No. 2 | Behind steering wheel, in steering column. See Figure. |
| Data Link Connector (DLC) | Below dash, to left of steering column. See Figure. |
| Radio Power Amplifier (Midline) | Behind right front kick panel. |
| Radio Power Amplifier (Premium) | In right rear of trunk. |
