All Other Models

Floor jack may be used at locations shown in illustrations to raise vehicle. See Fig 1-Fig 4 . Floor jack lifting points are located at center of front crossmember (inboard) and at center of rear axle.

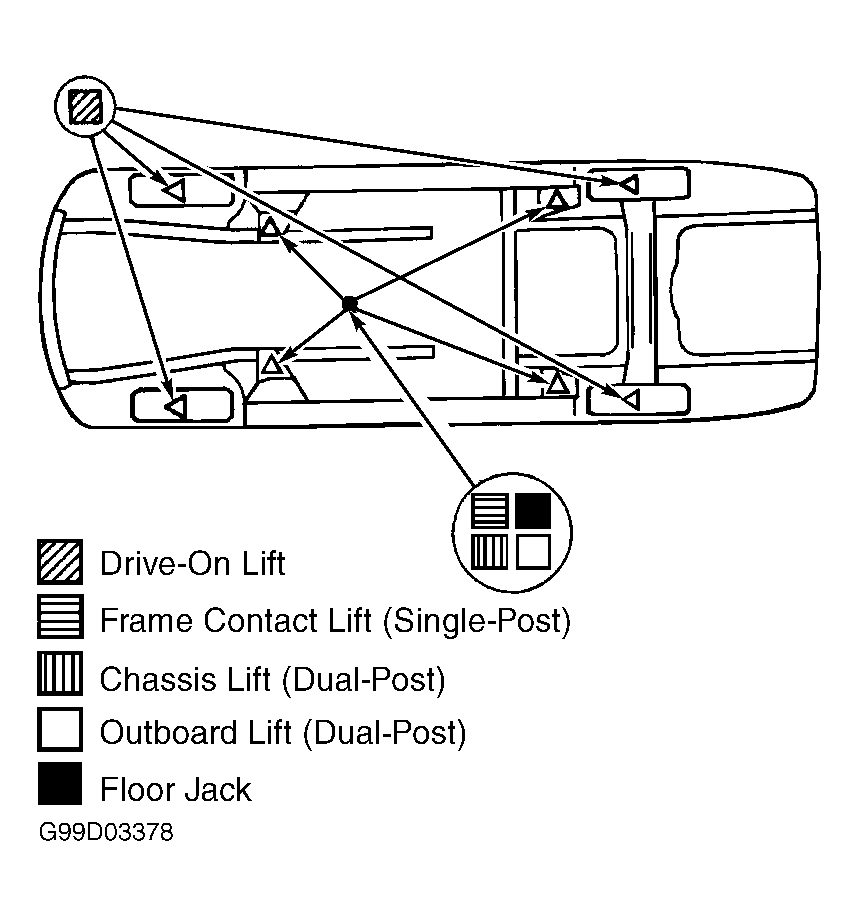

Fig 1: Locating Lifting Points (Avenger, Sebring Coupe & Stratus Coupe)

Courtesy of CHRYSLER LLC

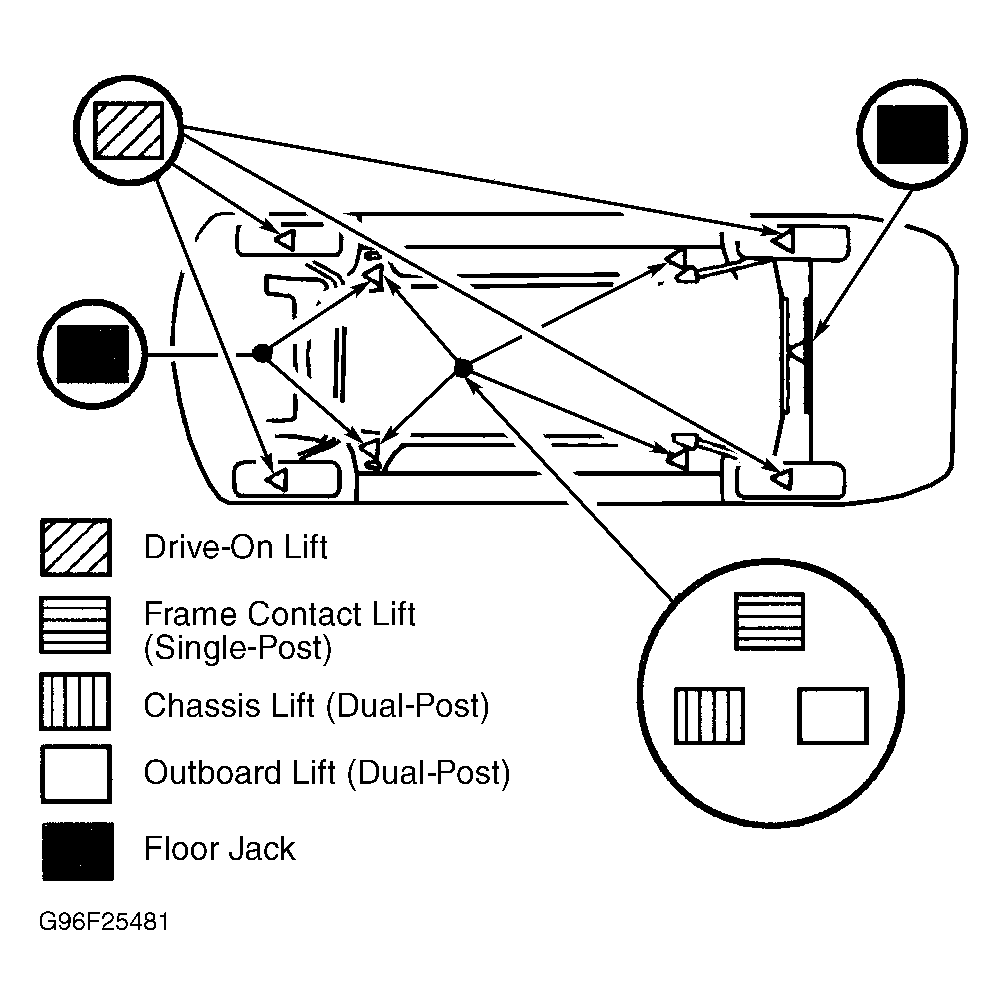

Fig 2: Locating Lifting Points (Breeze, Cirrus, Sebring Sedan & Stratus Sedan)

Courtesy of CHRYSLER LLC

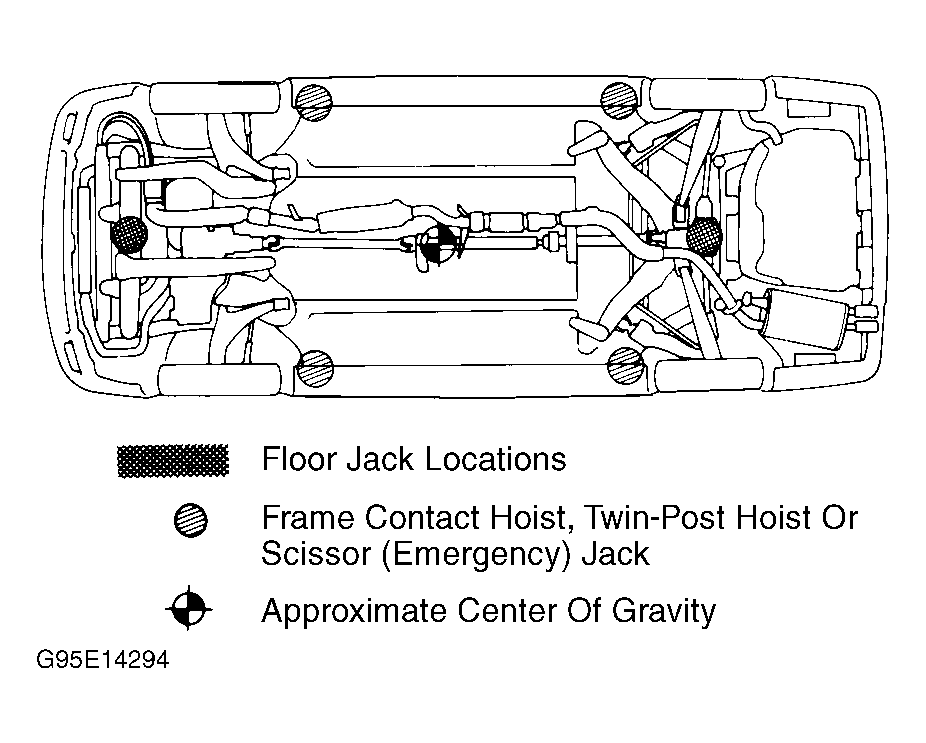

Fig 3: Locating Lifting Points (Concorde, Intrepid, LHS, Neon, PT Cruiser & 300M)

Courtesy of CHRYSLER LLC

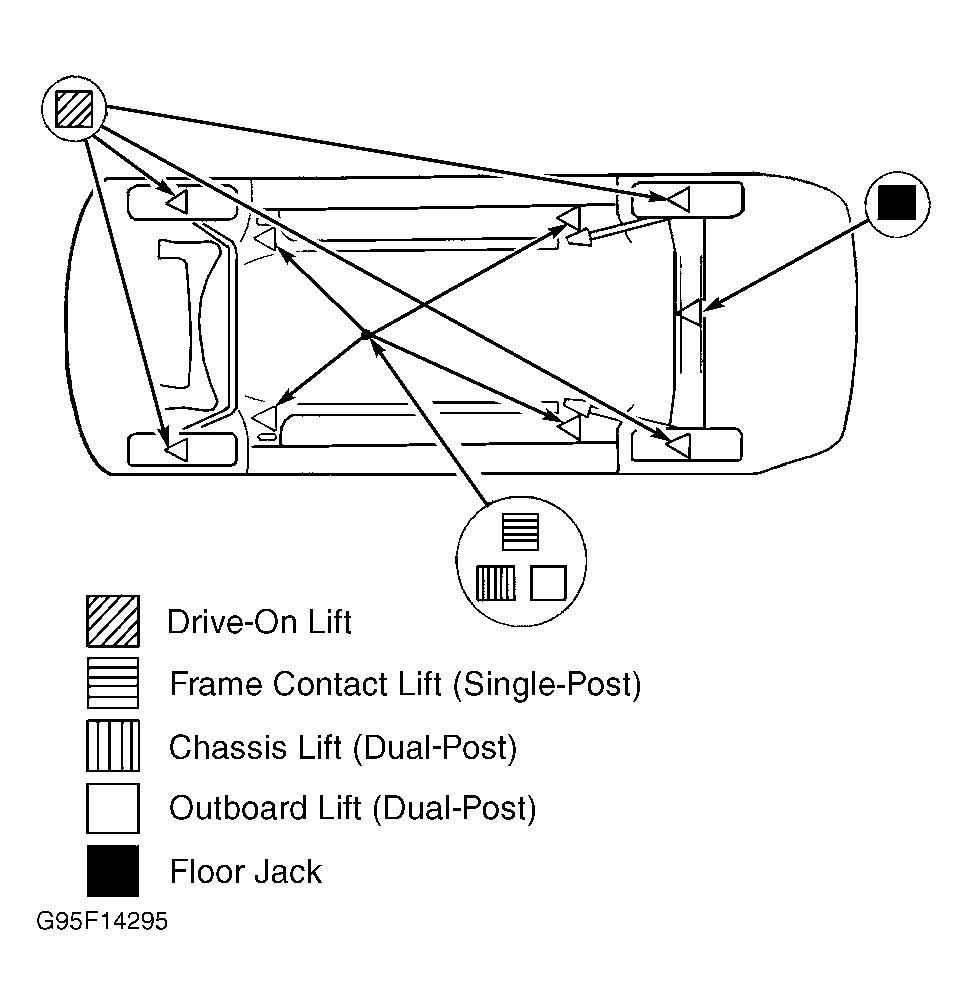

Fig 4: Locating Lifting Points (Sebring Convertible)

Courtesy of CHRYSLER LLC
