Toe-In Adjustment (Front)
NOTE:
When performing 4-wheel alignment, rear camber and toe adjustment must be set to specification first, then adjust front wheels to specification.
NOTE:
On vehicles equipped with tie rod adjustment sleeve, ensure exposed threaded area between tie rod and adjustment sleeve does not exceed .79" (20 mm).

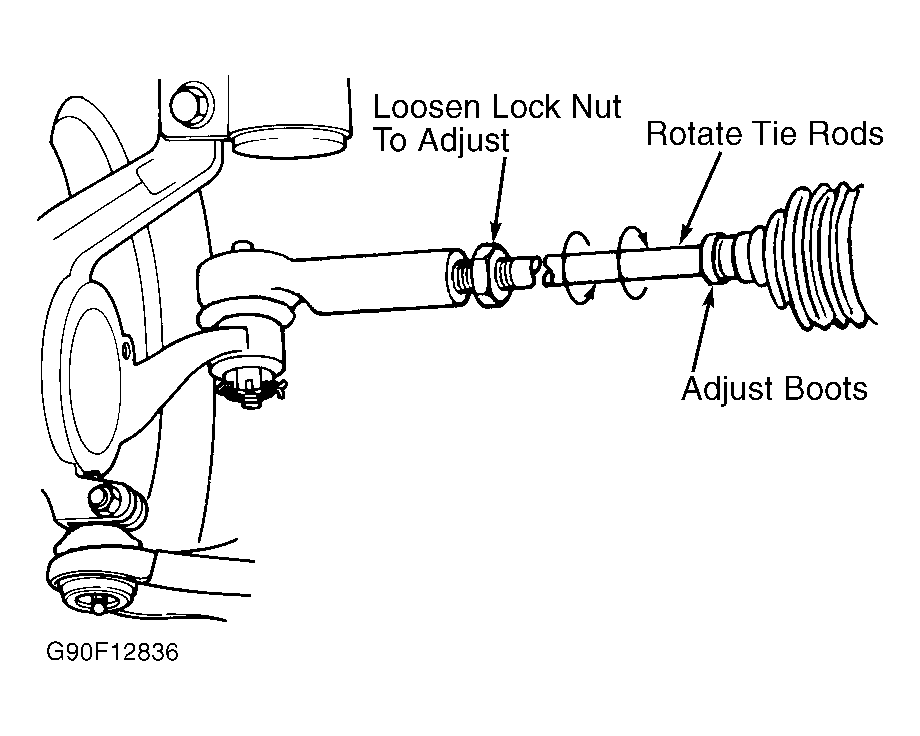

With steering wheel centered, loosen tie rod end lock nuts or pink bolt. While holding steering rod dust boots stationary, rotate tie rods or tie rod adjustment sleeve to obtain specified toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . See Fig 1. Tighten lock nuts to specification. See TORQUE SPECIFICATIONS .
