Concorde, Intrepid, LHS & 300M

On column shift applications, go to next step. On floor shift applications, go to step 3 .
On column shift applications, if shift interlock does not operate properly, shift interlock cassette on steering column must be replaced. Shift interlock cable may only be adjusted once after installing NEW shift interlock cassette on steering column. See appropriate STEERING COLUMN SWITCHES article in ACCESSORIES & EQUIPMENT.
On floor shift applications, remove gear selector handle. Remove console bezel. Move gear selector to Park and ignition key to LOCK position. If interlock cable is being replaced, remove pin to allow cable to "self adjust." Press locking clip by hand to secure adjustment. See Fig 1 .

NOTE: New interlock cable is equipped with a removable pin.

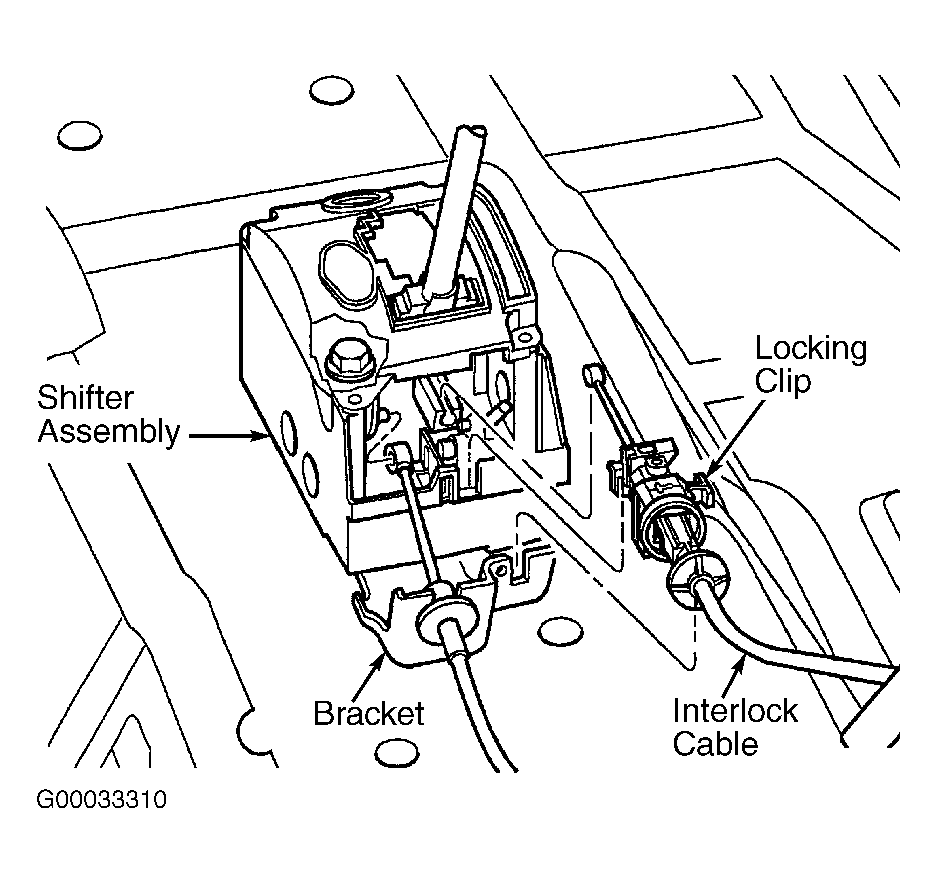

Fig 1: Adjusting Shift Interlock Cable (Concorde, Intrepid, LHS & 300M)

Courtesy of CHRYSLER CORP.

If interlock cable is not being replaced, pin will not exist. Loosen locking clip on interlock cable to allow cable to "self adjust." Press locking clip by hand to secure adjustment. Install bezel on shifter console. Install shifter handle.
