Mode 6 - CHRYSLER: 2003-2004

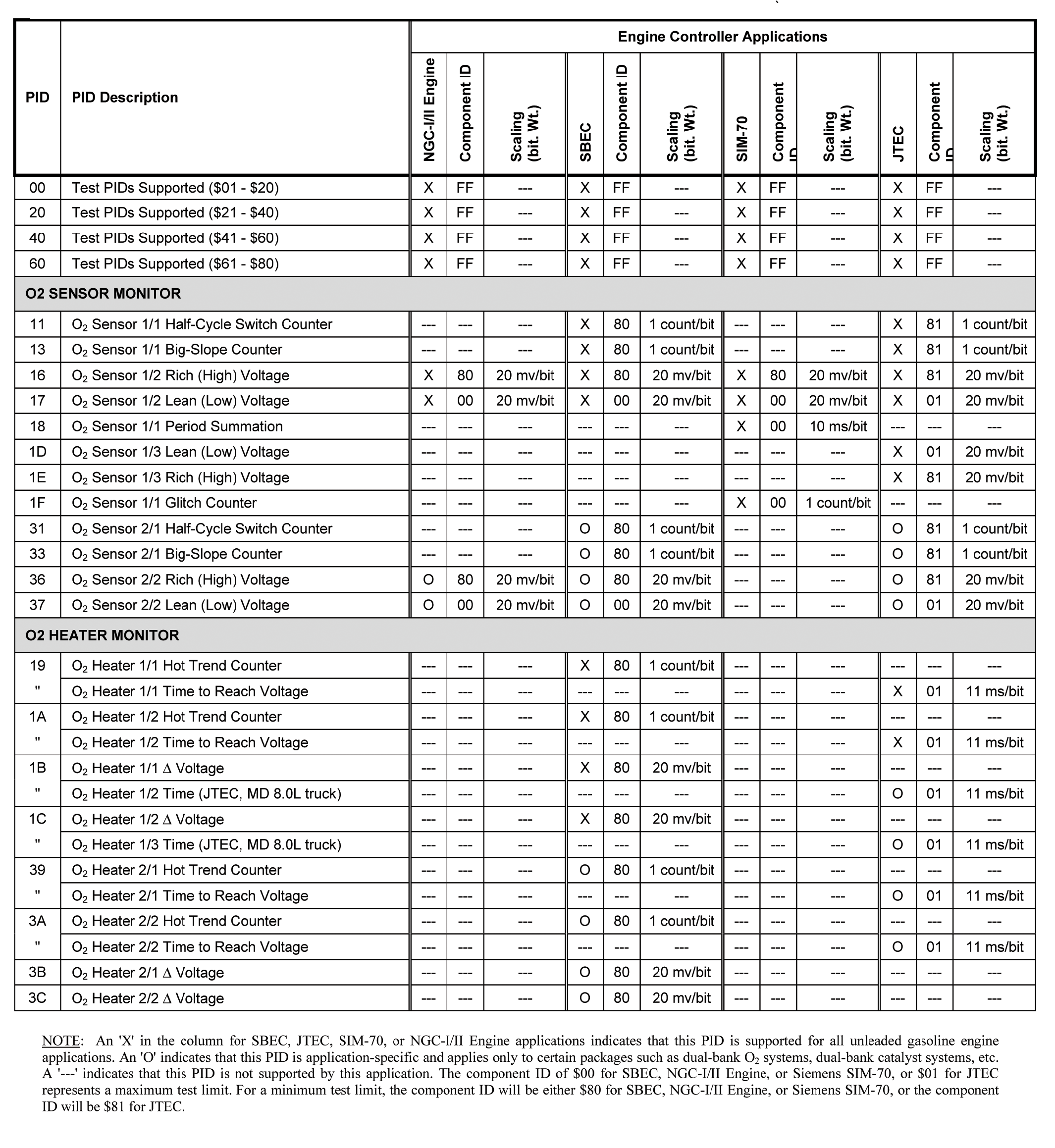

Fig 1: Mode $06 Data For SBEC, JTEC, SIM-70 & NGC I/II Engine Controllers (1 Of 2)

Courtesy of CHRYSLER CORP.

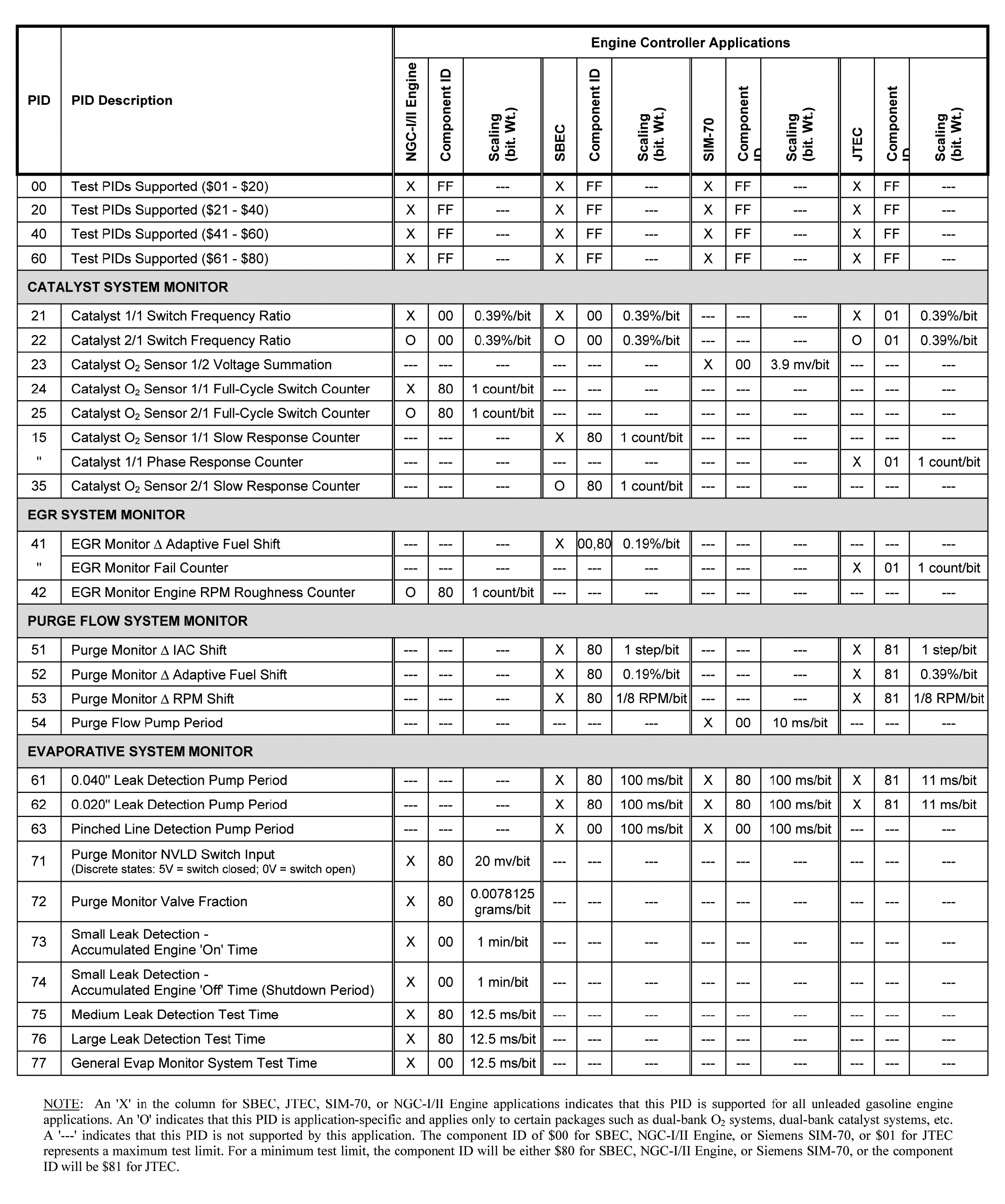

Fig 2: Mode $06 Data For SBEC, JTEC, SIM-70 & NGC I/II Engine Controllers (2 Of 2)

Courtesy of CHRYSLER CORP.

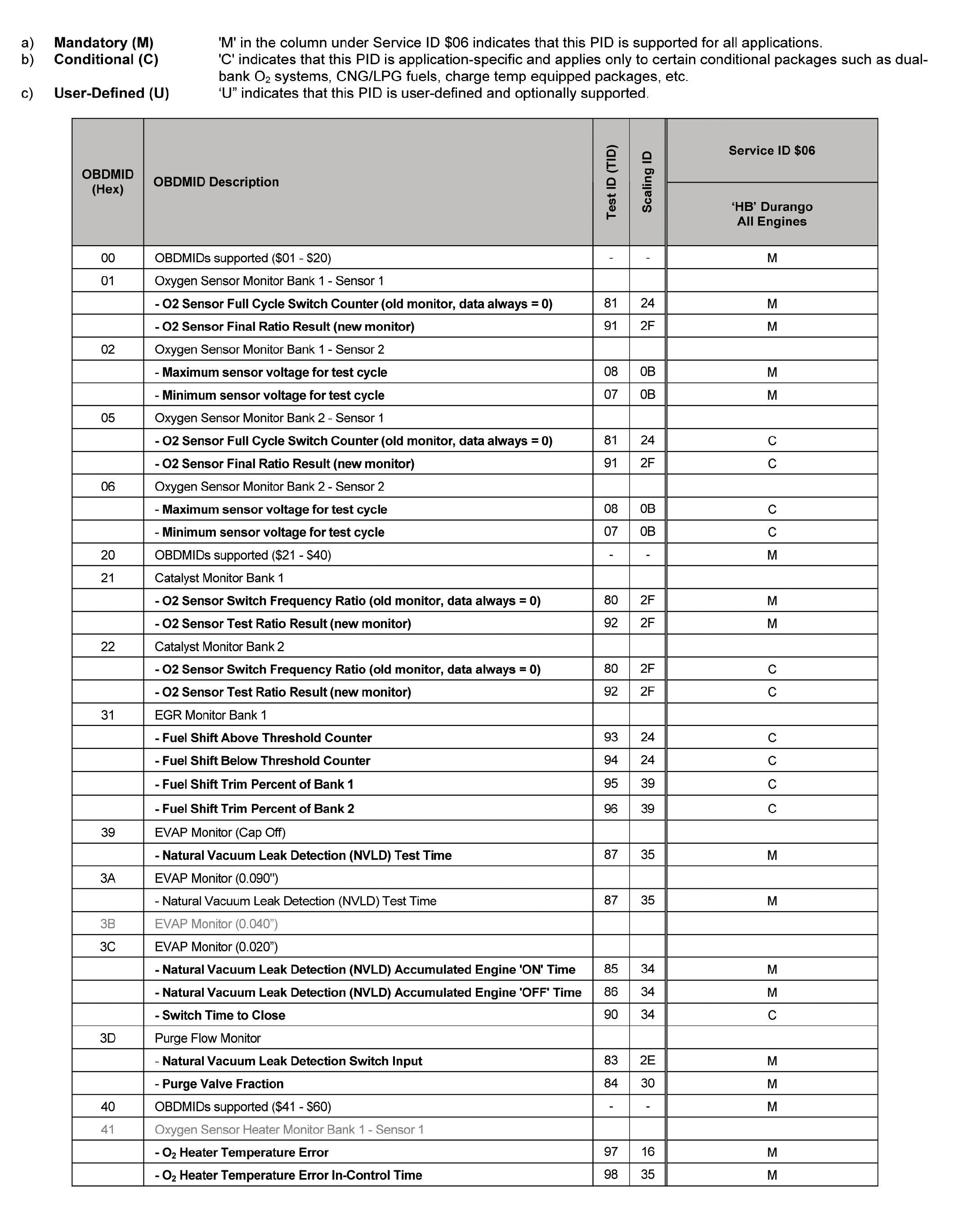

Fig 3: Mode $06 Data For 2004 NGC III CAN Engine Controllers (HB Durango) (1 Of 2)

Courtesy of CHRYSLER CORP.

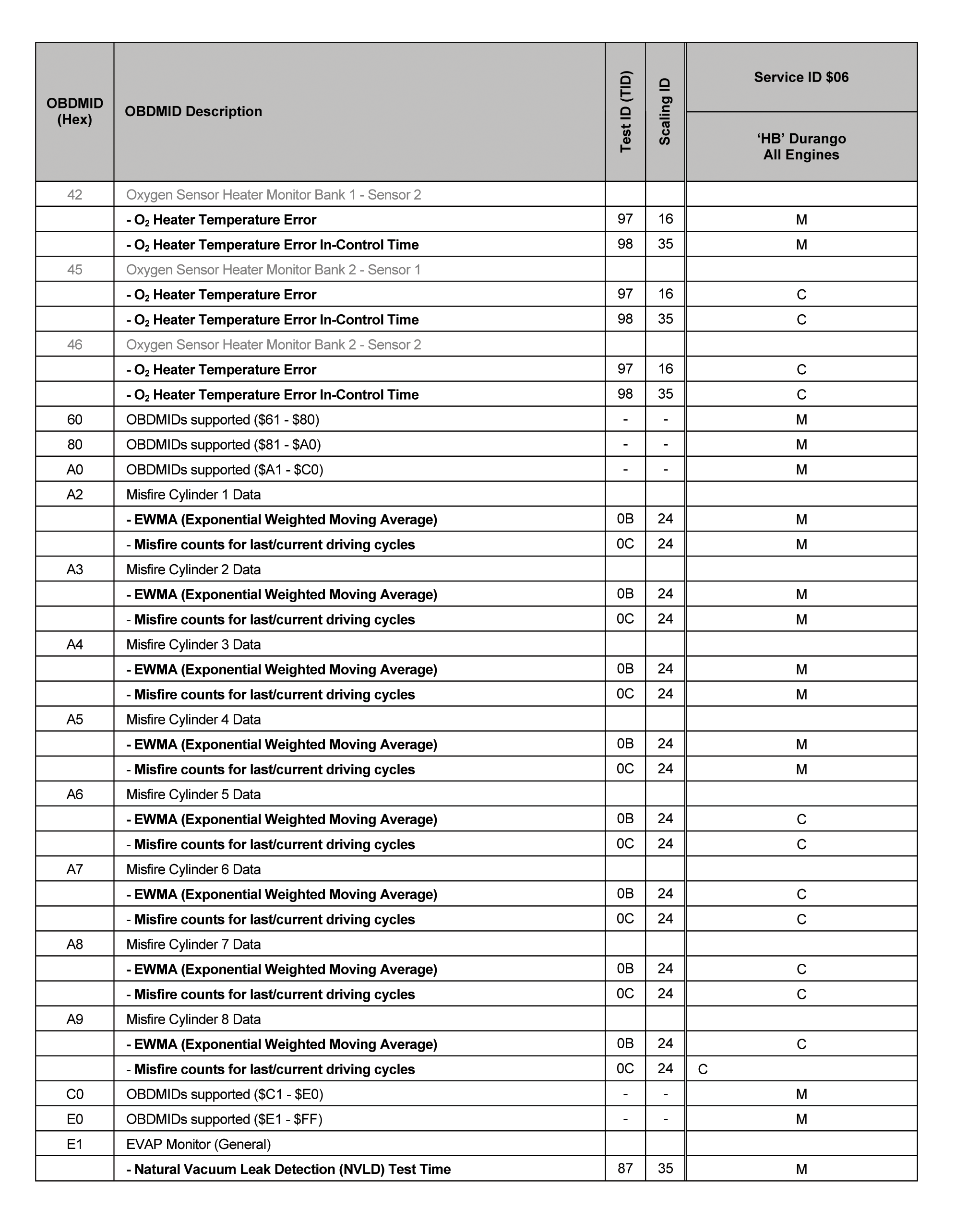

Fig 4: Mode $06 Data For 2004 NGC III CAN Engine Controllers (HB Durango) (2 Of 2)

Courtesy of CHRYSLER CORP.

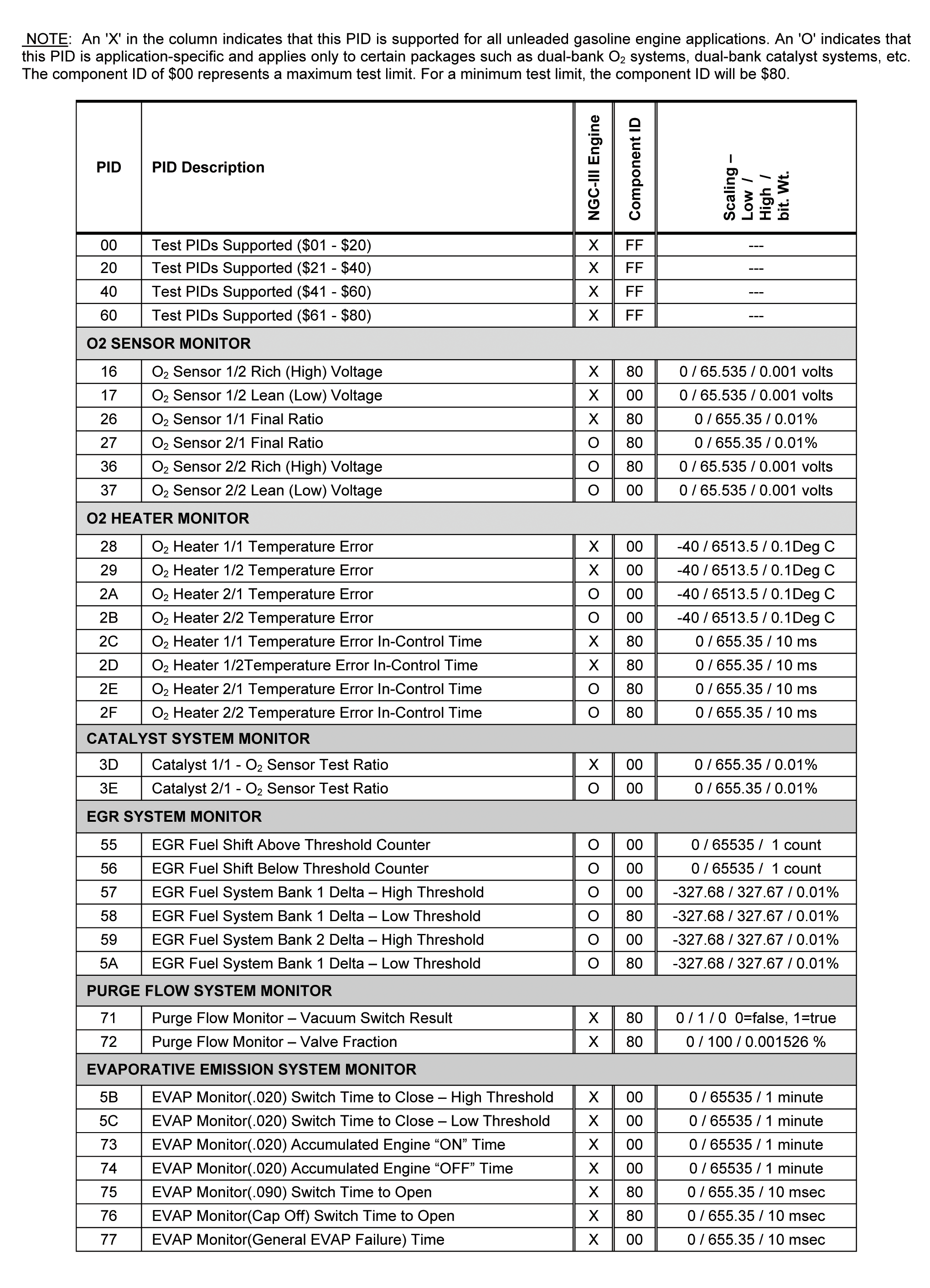

Fig 5: Mode $06 Data For 2004 NGC III J1850 Engine Controllers

Courtesy of CHRYSLER CORP.
