Mode 6 - CHRYSLER: 2005

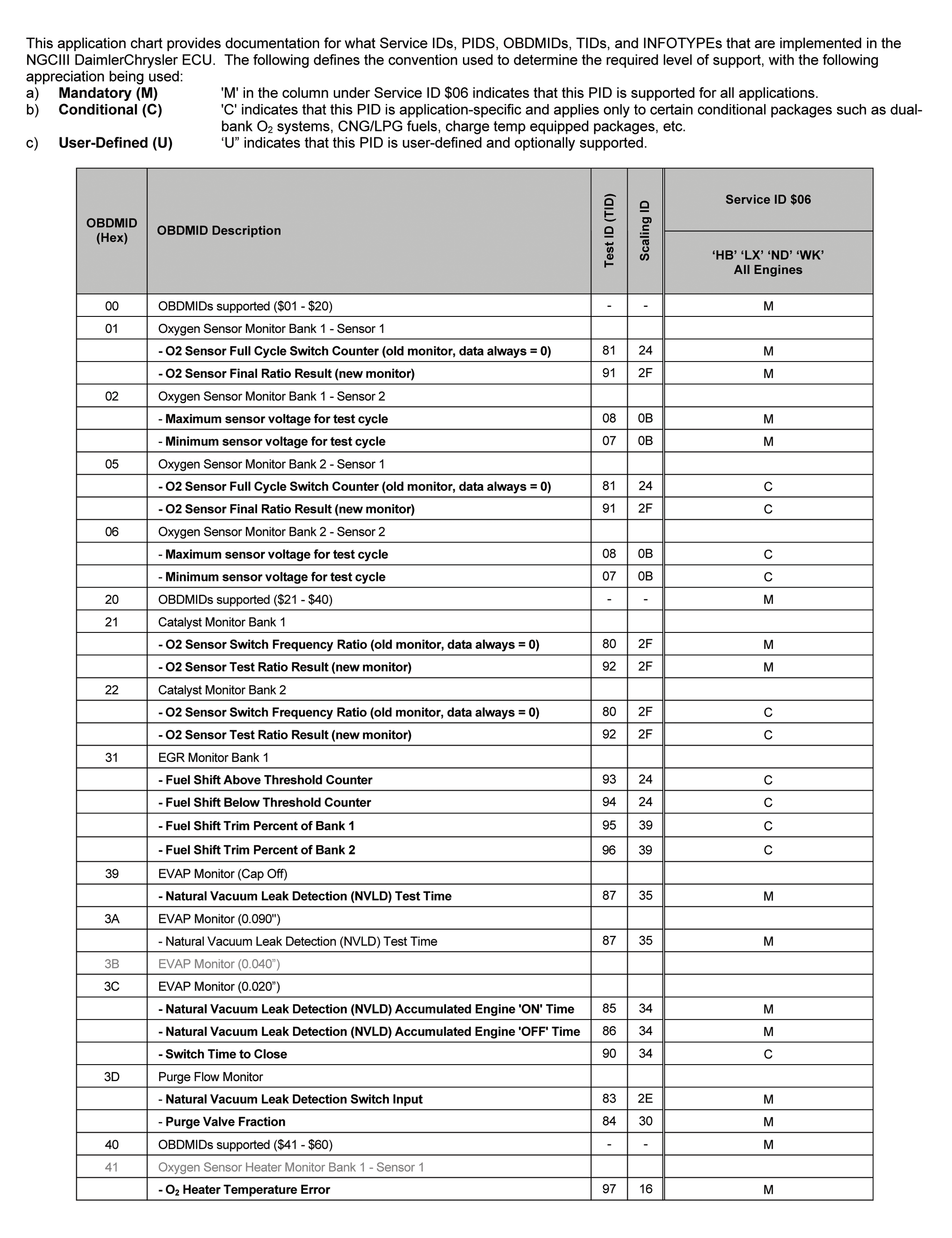

Fig 1: Mode $06 Data For NGC III CAN Engine Controllers (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Mode $06 Data For NGC III CAN Engine Controllers (2 Of 2)

Courtesy of CHRYSLER CORP.

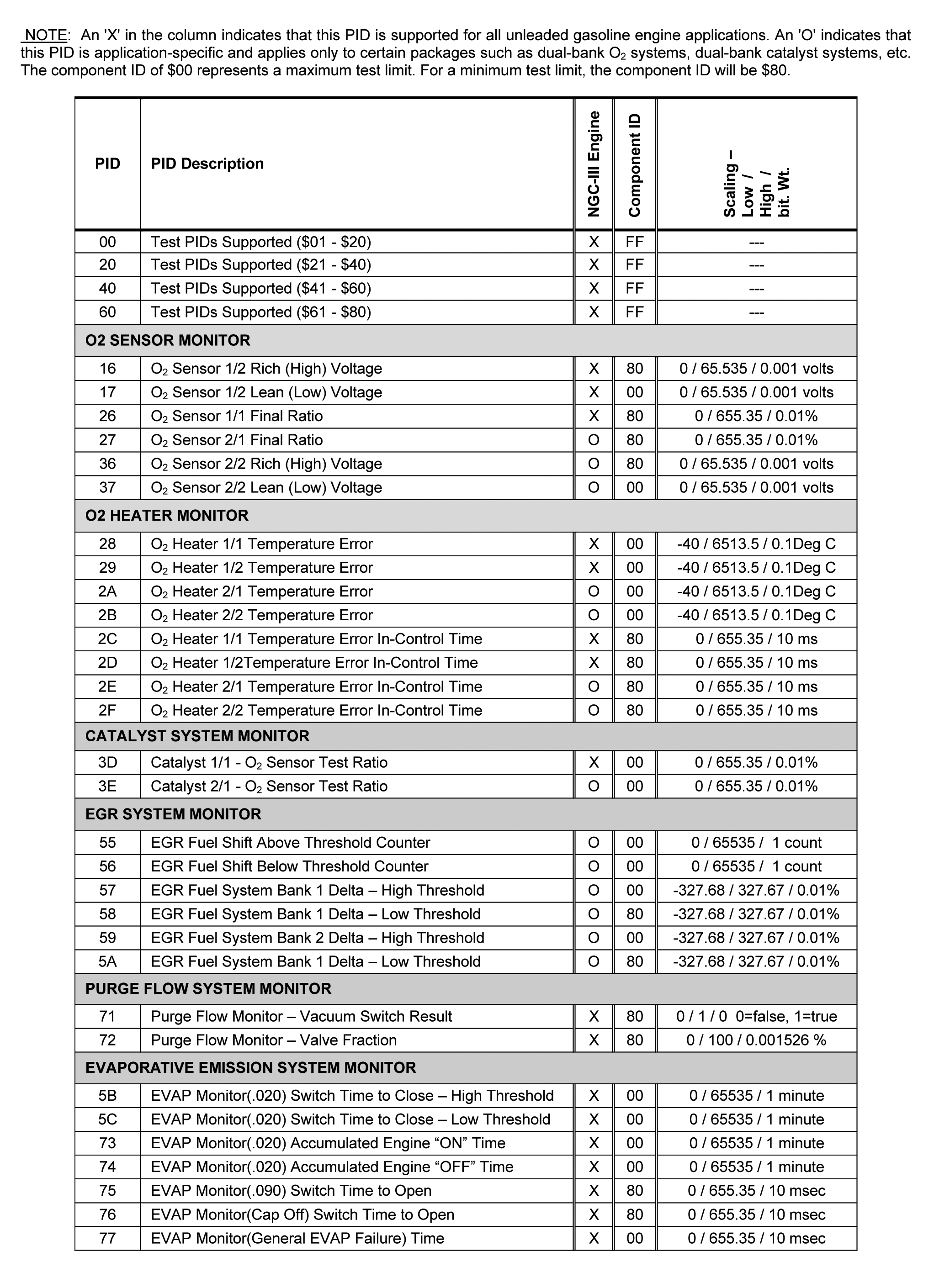

Fig 3: Mode $06 Data For NGC III J1850 Engine Controllers

Courtesy of CHRYSLER CORP.
