Mode 6 - CHRYSLER: 2007

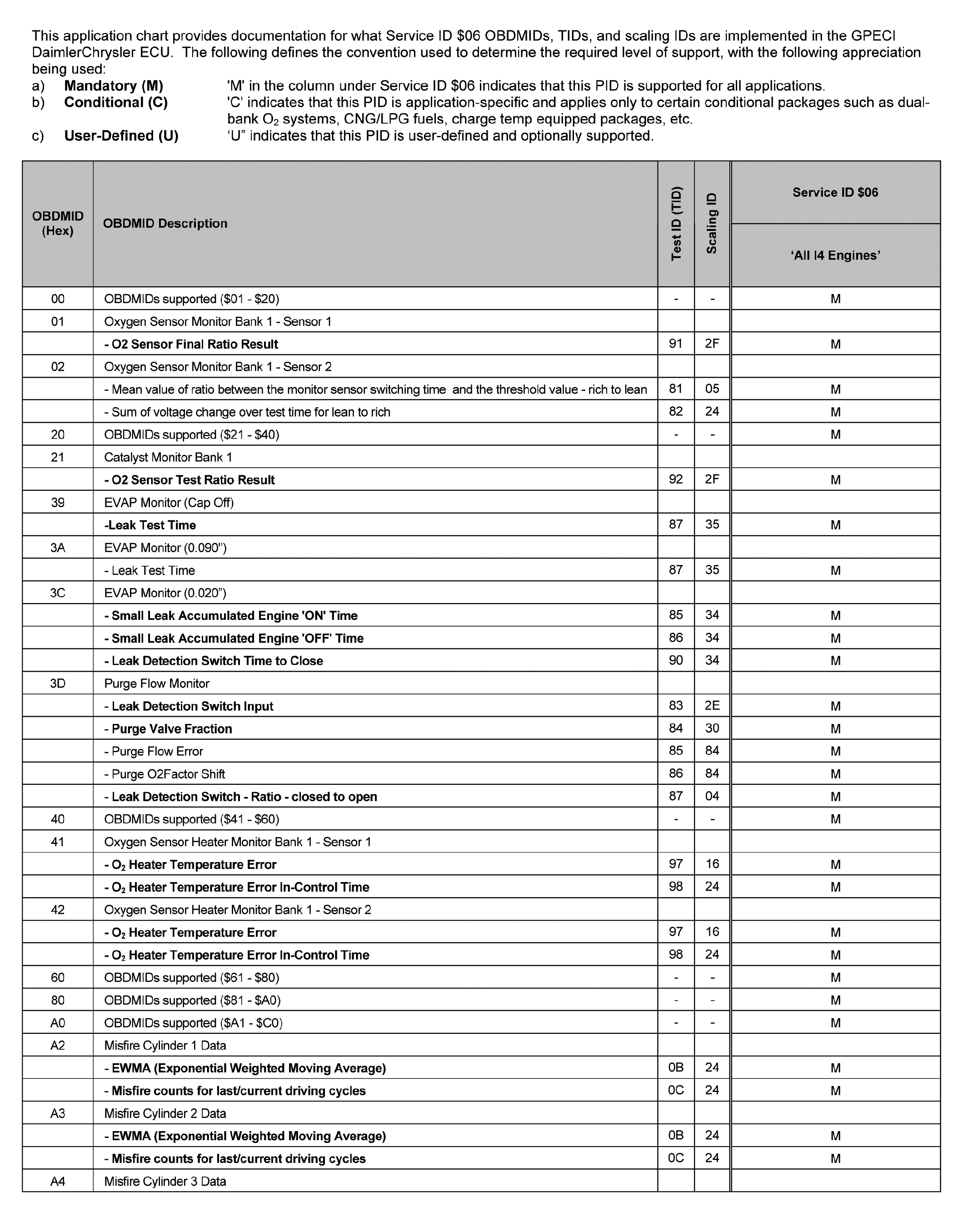

Fig 1: Mode $06 Data For GPECI CAN Engine Controllers (1 Of 2)
Courtesy of CHRYSLER CORP.

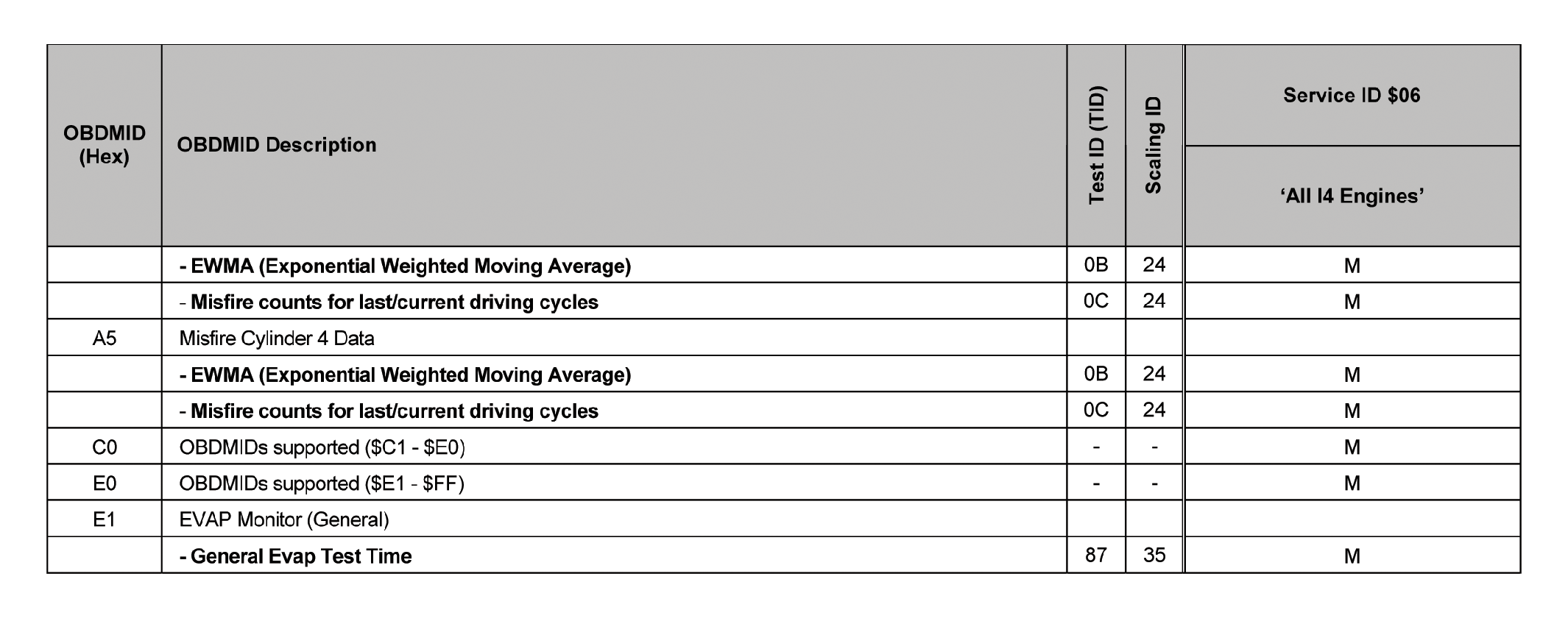

Fig 2: Mode $06 Data For GPECI CAN Engine Controllers (2 Of 2)
Courtesy of CHRYSLER CORP.

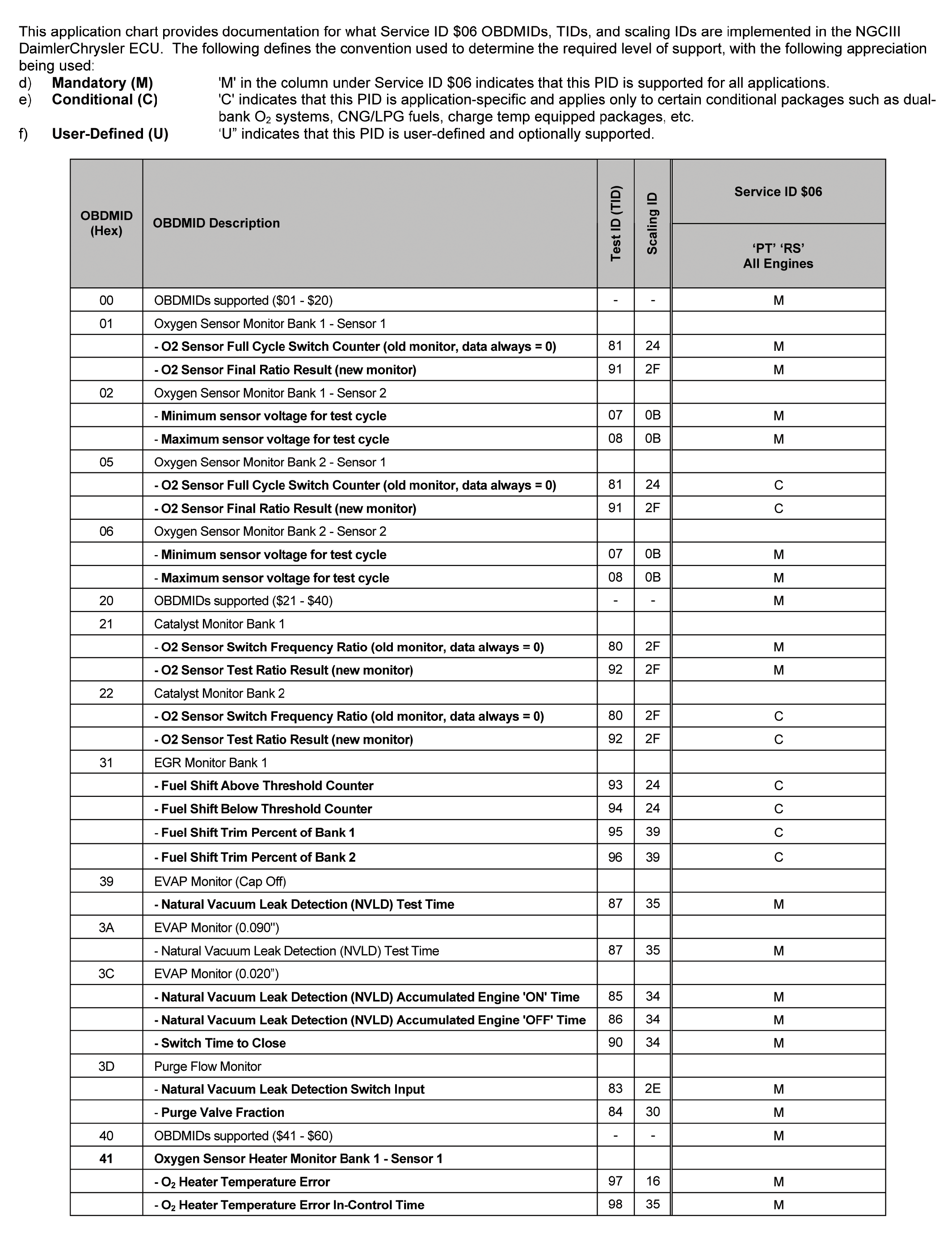

Fig 3: Mode $06 Data For NGC III CAN Engine Controllers (1 Of 2)
Courtesy of CHRYSLER CORP.

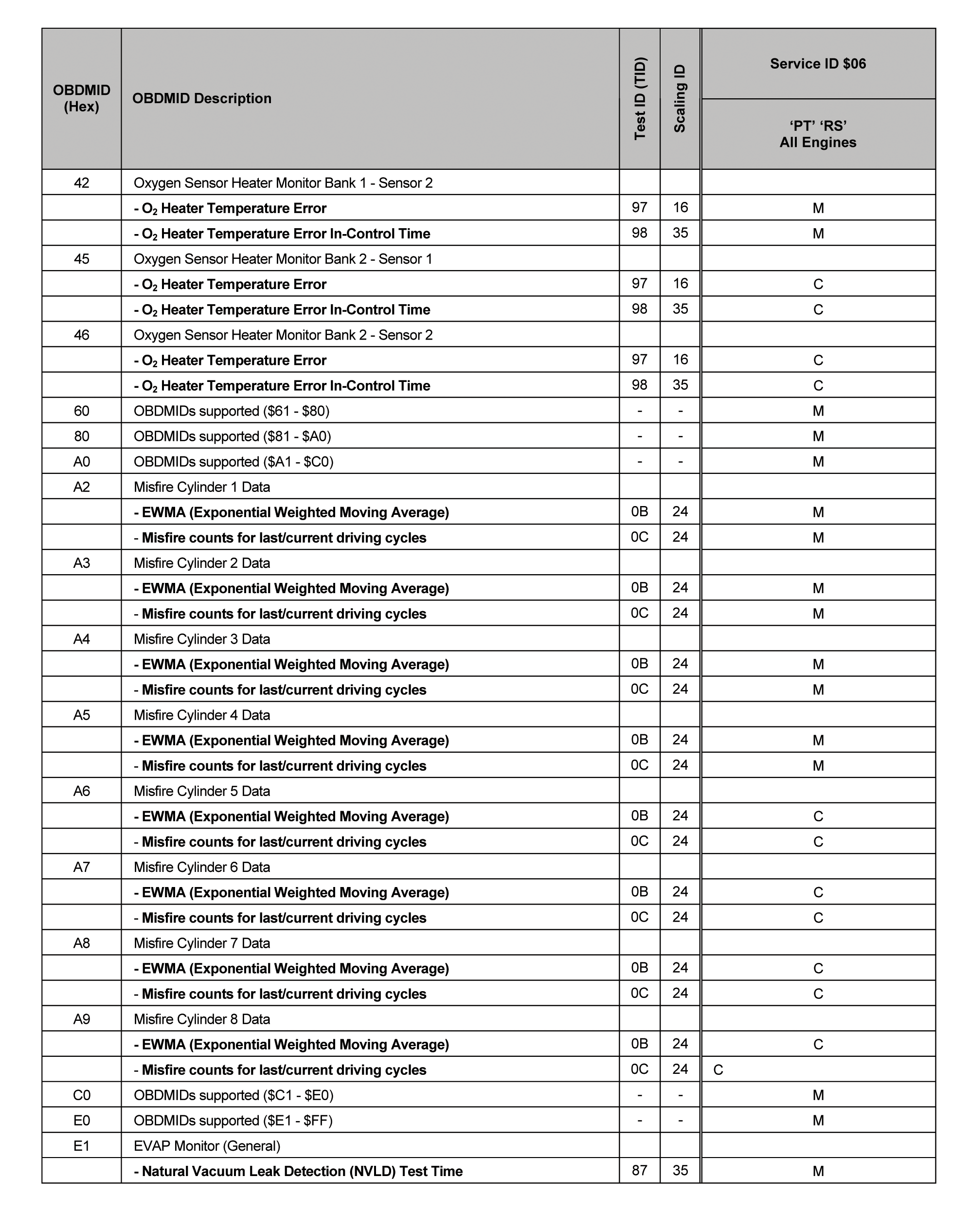

Fig 4: Mode $06 Data For NGC III CAN Engine Controllers (2 Of 2)
Courtesy of CHRYSLER CORP.

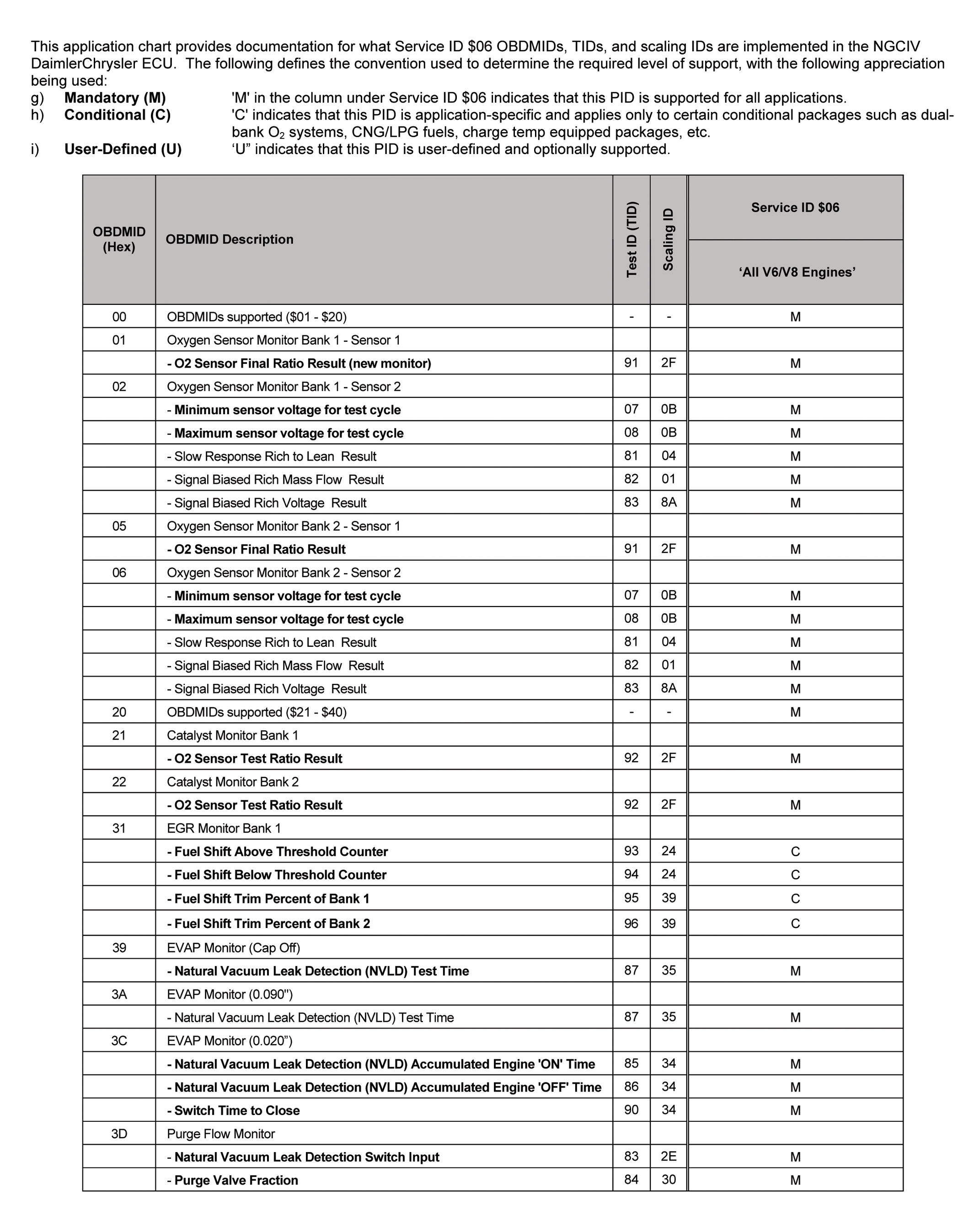

Fig 5: Mode $06 Data For NGC IV CAN Engine Controllers (1 Of 2)
Courtesy of CHRYSLER CORP.

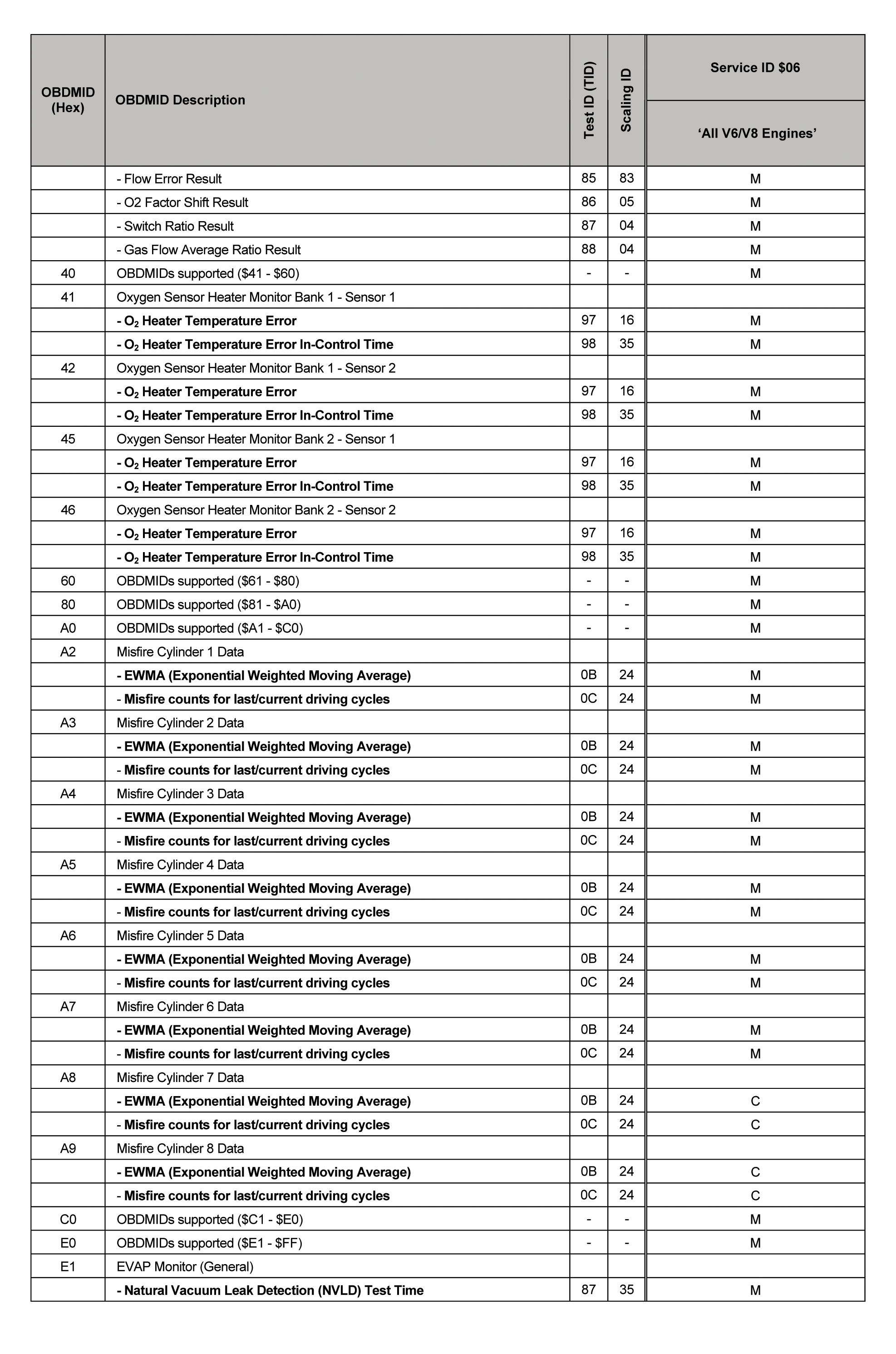

Fig 6: Mode $06 Data For NGC IV CAN Engine Controllers (2 Of 2)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
