Component Locations

COMPONENT LOCATIONS

Component Location See
Air Bag Control Module (ACM) In Front Of Center Floor Console Fig 1
Controller Anti-Lock Brake (CAB) Module Left Side Of Engine Compartment, Under Battery Tray Fig 2
Data Link Connector (DLC) Under Left Side Of Instrument Panel, Near Steering Column Fig 3
Deck Lid Security Switch Behind Deck Lid Lock Cylinder N/A
Driver Air Bag Module Center Of Steering Wheel Fig 3
Engine Coolant Temperature (ECT) Sensor Right Front Of Engine Compartment Fig 4
Fuse Block Left Side Of Instrument Panel Fig 3
Mechanical Instrument Cluster (MIC) Module Integral Part Of Instrument Cluster N/A
Passenger Air Bag Module Center Of Steering Wheel Fig 3
Powertrain Control Module (PCM) Engine Compartment, Between Air Cleaner & Radiator Fig 5
Power Distribution Center (PDC) Left Rear Of Engine Compartment, Next To Battery Fig 6
Remote Keyless Entry (RKE) Module Center Of Instrument Panel, Under Top Cover Fig 7
Sentry Key Immobilizer Module (SKIM) In Steering Column, Next To Ignition Switch Fig 8

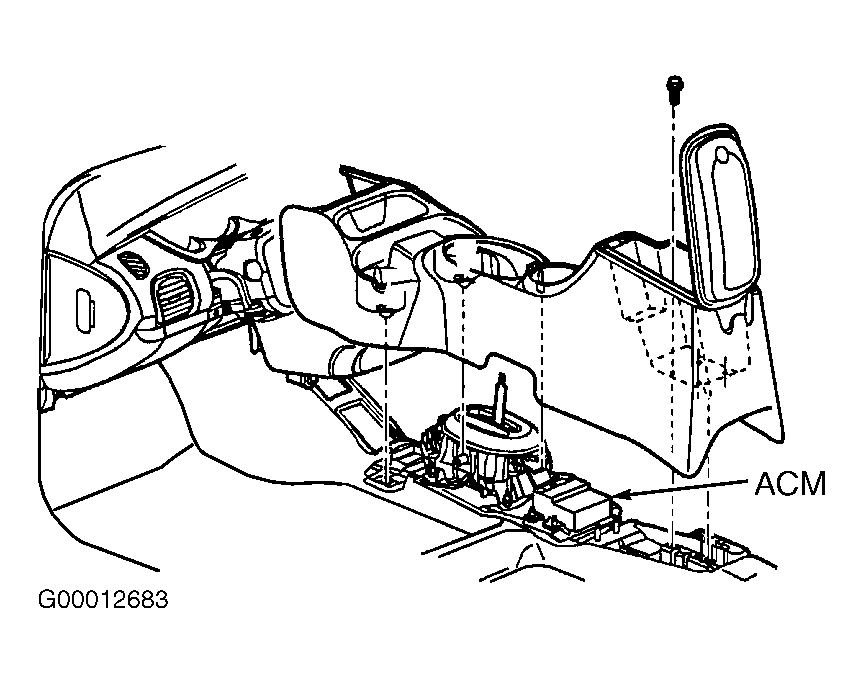

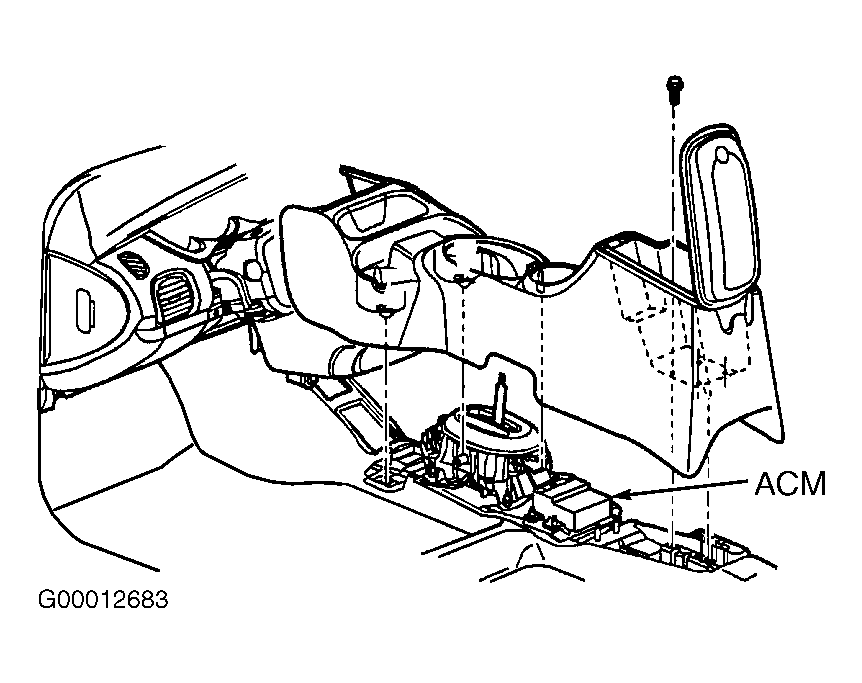

Fig 1: Locating Air Bag Control Module (ACM)
G00012683Courtesy of DAIMLERCHRYSLER CORP.

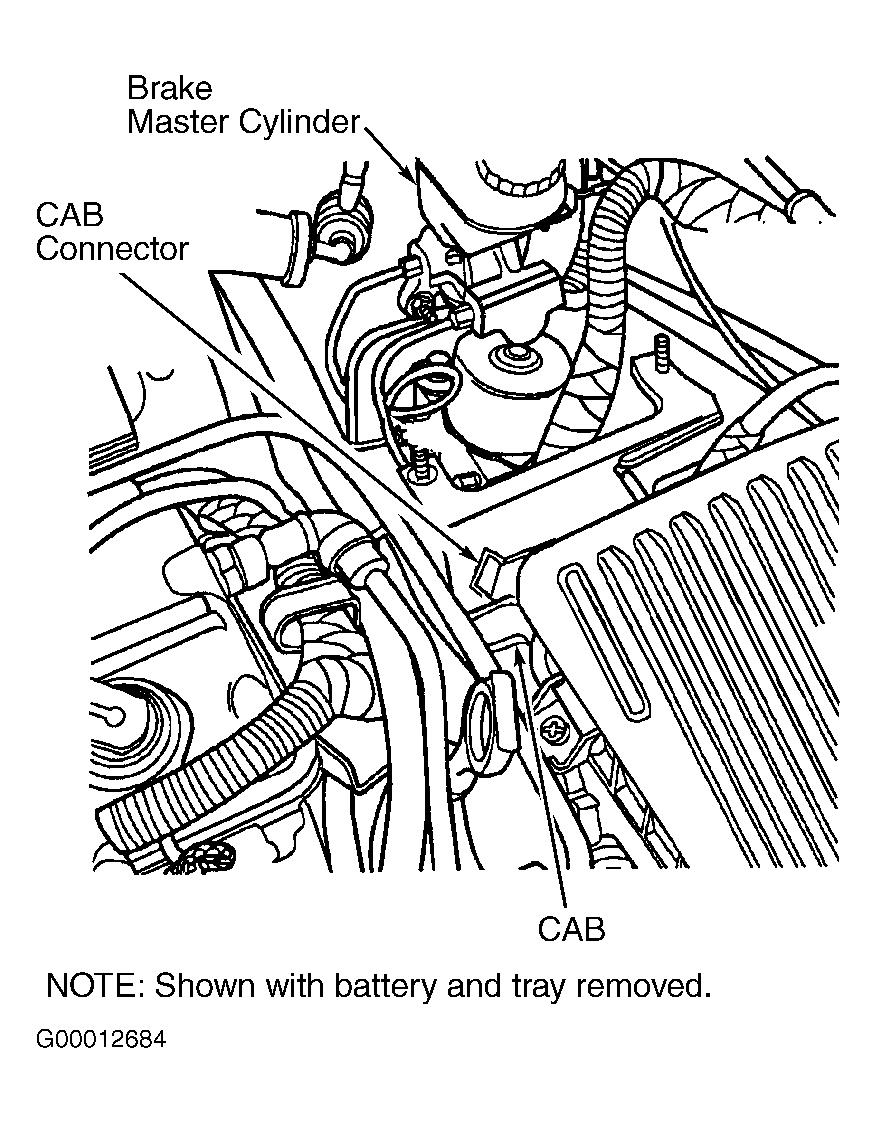

Fig 2: Locating Controller Anti-Lock Brake (CAB) Module
G00012684Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Components
G00012685Courtesy of DAIMLERCHRYSLER CORP.

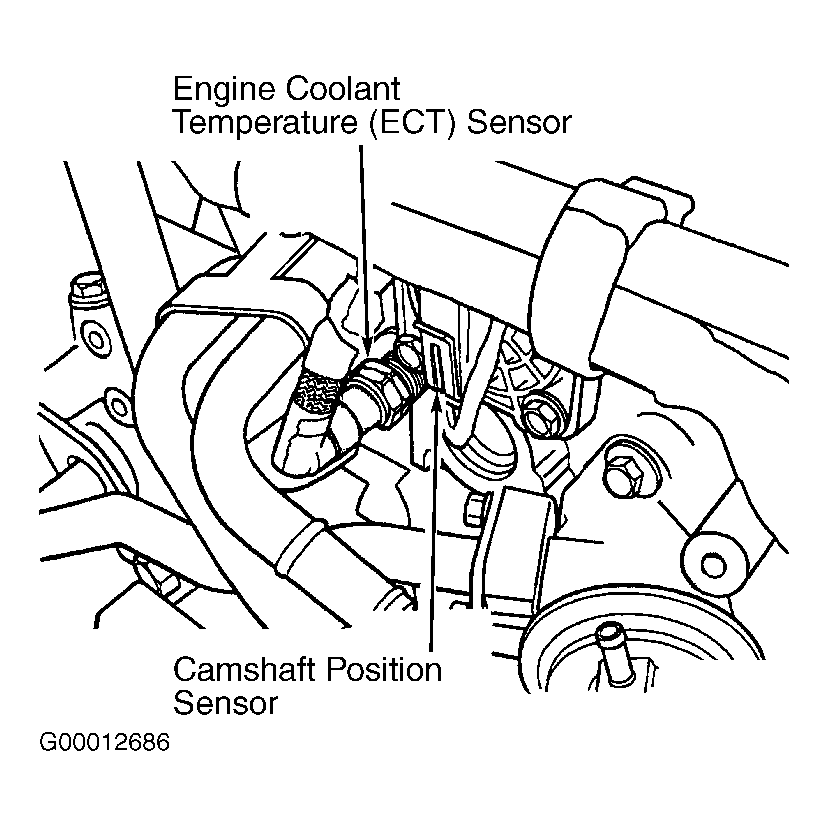

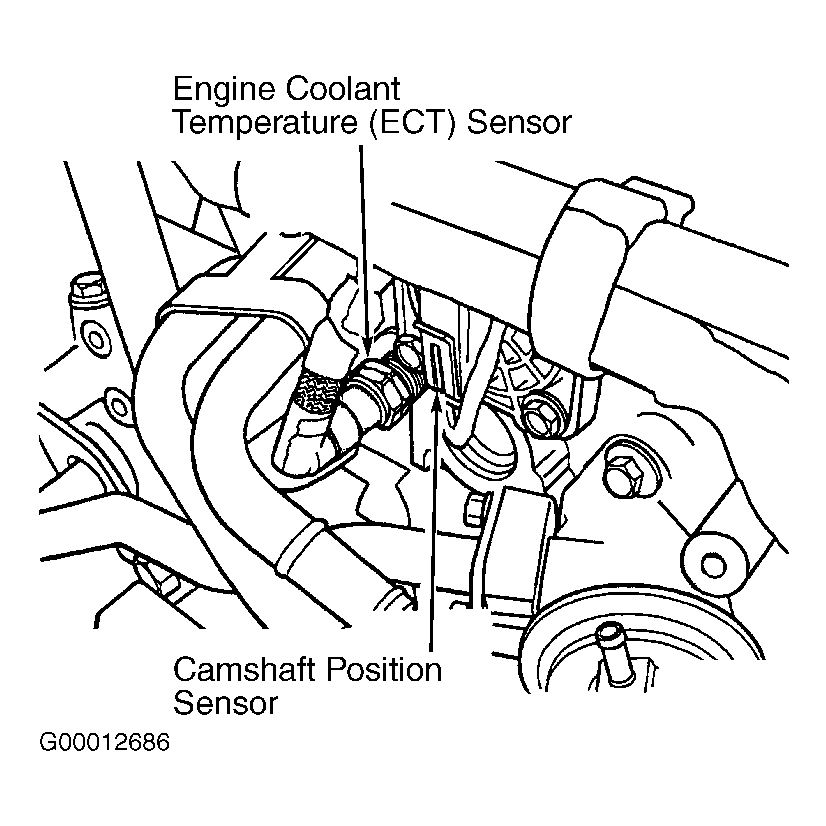

Fig 4: Locating Engine Coolant Temperature (ECT) Sensor
G00012686Courtesy of DAIMLERCHRYSLER CORP.

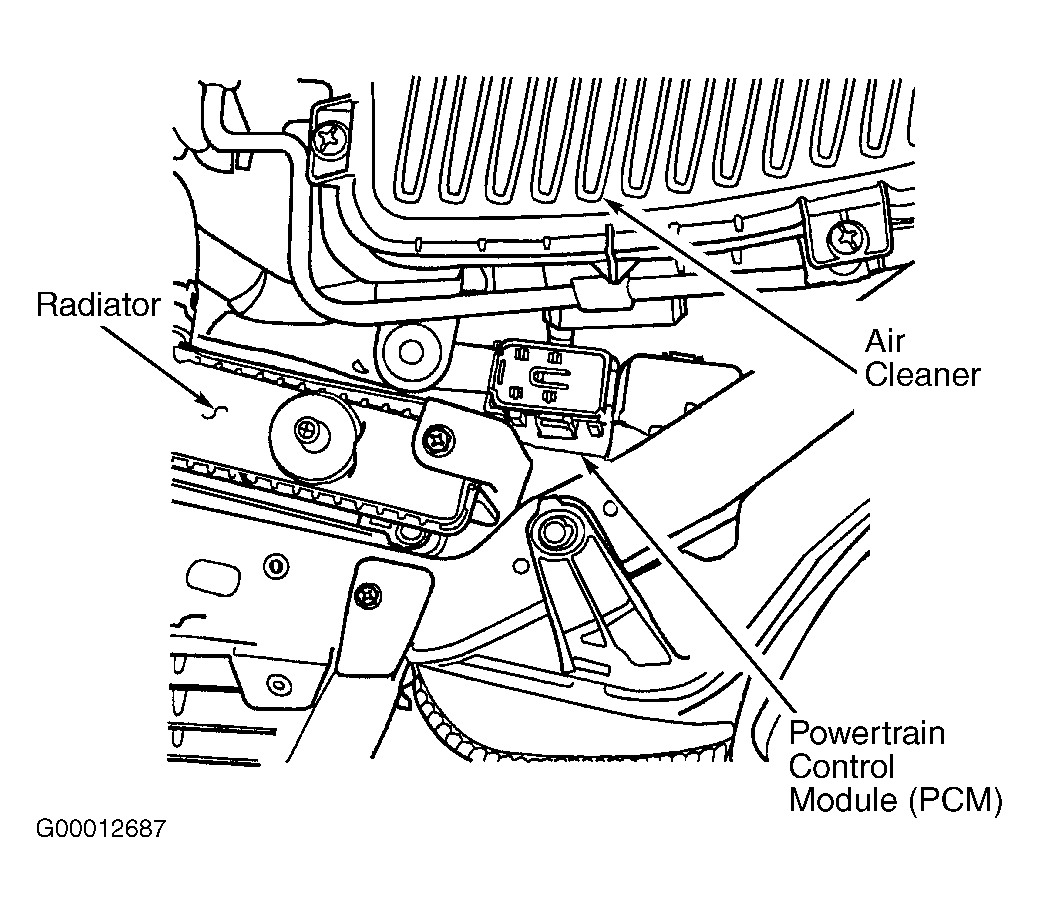

Fig 5: Locating Powertrain Control Module (PCM)
G00012687Courtesy of DAIMLERCHRYSLER CORP.

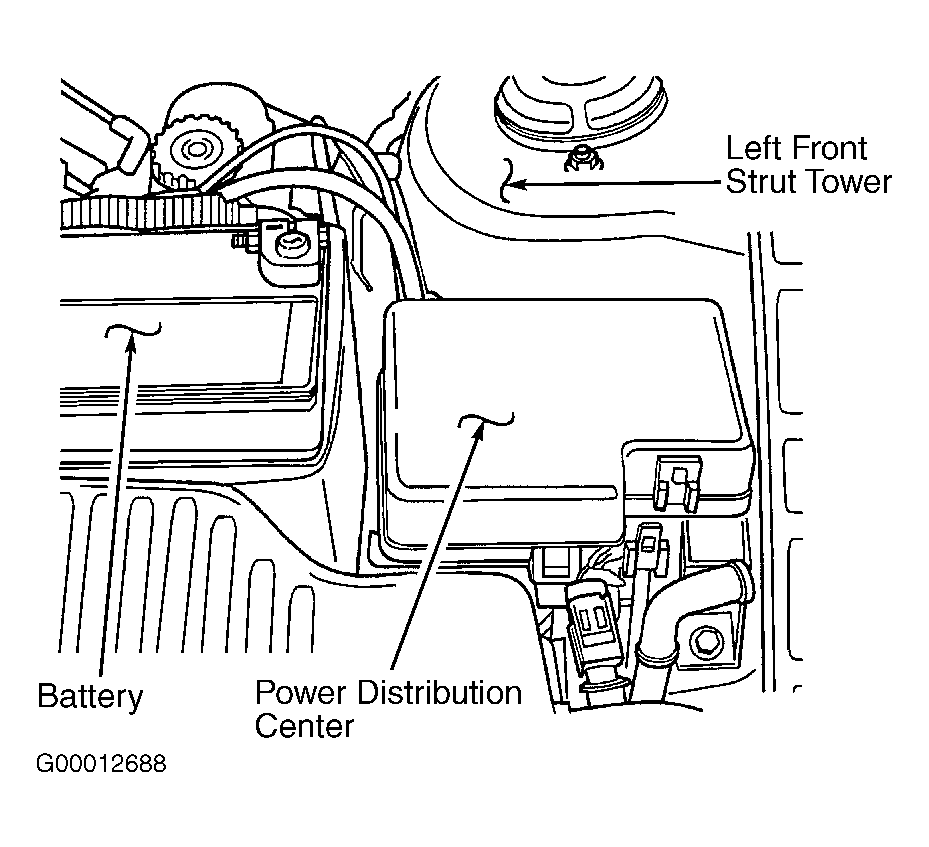

Fig 6: Locating Power Distribution Center (PDC)
G00012688Courtesy of DAIMLERCHRYSLER CORP.

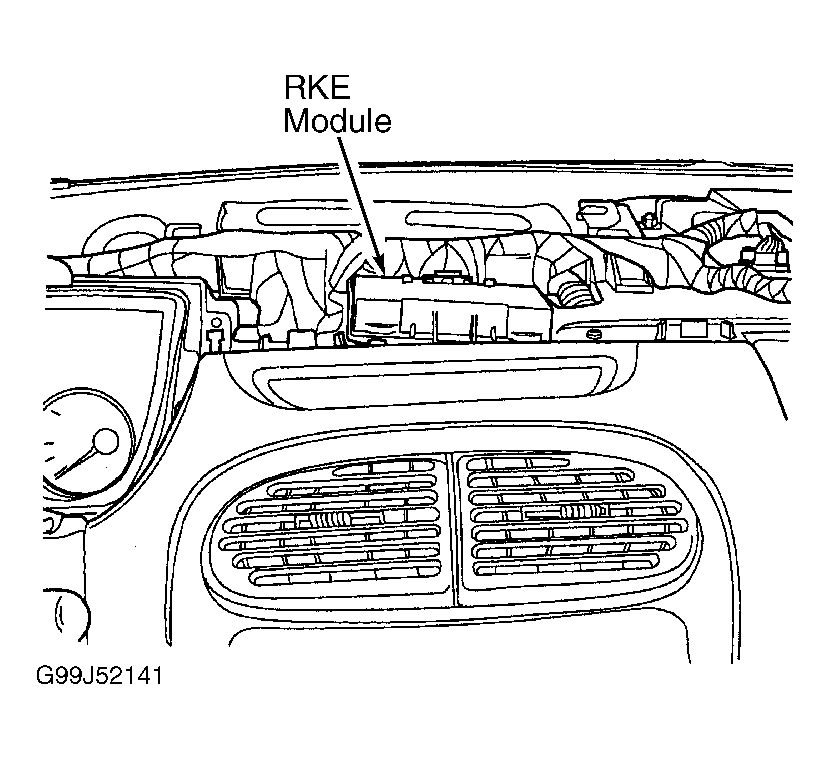

Fig 7: Locating Remote Keyless Entry (RKE) Module
G99J52141Courtesy of DAIMLERCHRYSLER CORP.

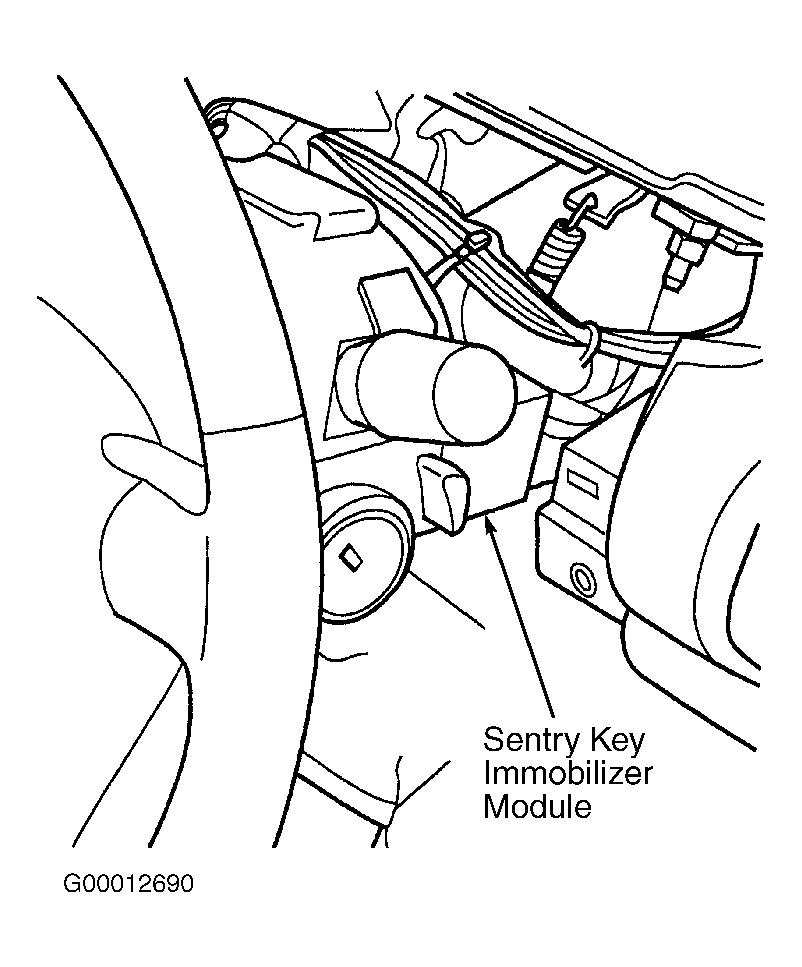

Fig 8: Locating Sentry Key Immobilizer Module (SKIM)
G00012690Courtesy of DAIMLERCHRYSLER CORP.
