Sentry Key Immobilizer Module (Skim)

CAUTION: If wrong country code is programmed into SKIM when requested, SKIM must be replaced.
NOTE: SKIM will only remain in secured access mode for 60 seconds. If incorrect unique Personal Identification Number (PIN) is entered 3 times, SKIM will be locked for one hour. To unlock SKIM, turn ignition on for one hour. When SKIM is locked, scan tool will display BUS +/- SIGNALS OPEN.
  1. Obtain vehicle's unique Personal Identification Number (PIN) assigned to SKIM from vehicle owner or manufacturer. Turn ignition off. Remove all test equipment and jumper wires. Connect any disconnected components. Go to next step.

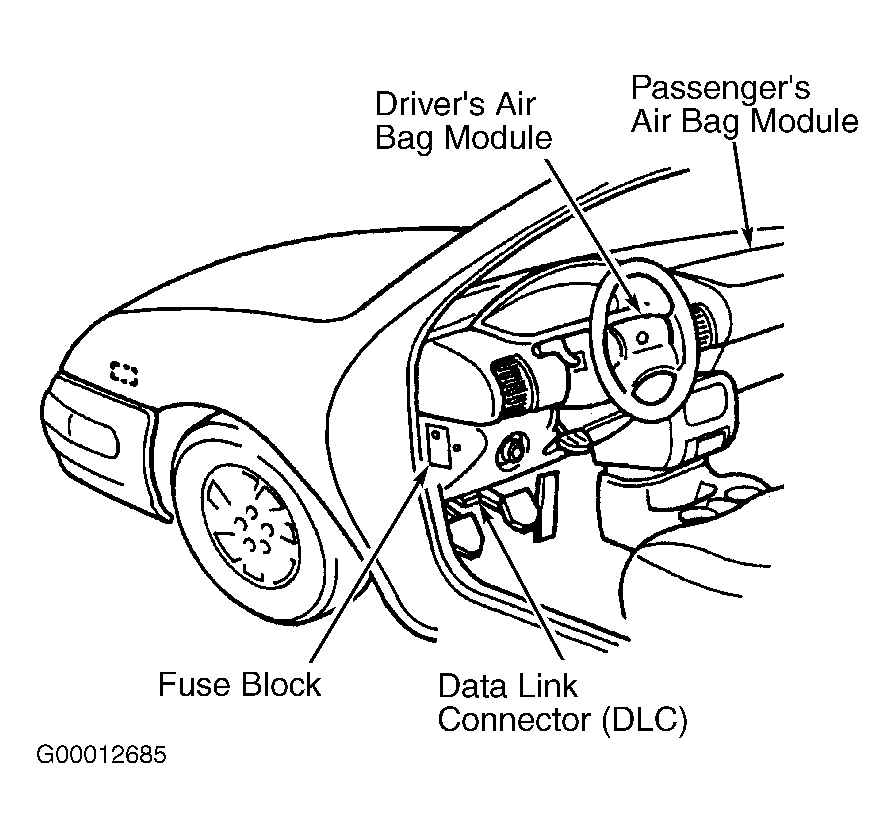

  2. Connect scan tool to Data Link Connector (DLC). DLC is located on bottom of instrument panel, to left of brake pedal. See Figure. Turn ignition on. Using scan tool, select BODY, then SKIM MODULE REPLACEMENT. Enter 4-digit PIN to put SKIM in access mode. Go to next step.
  3. Using scan tool, select BODY, THEFT ALARM, SKIM, MISCELLANEOUS, then select desired procedure and follow steps displayed on scan tool. If SKIM has been replaced, ensure all keys and remote transmitters to be used with vehicle are programmed into SKIM. See SENTRY KEYS  and REMOTE KEYLESS ENTRY (RKE) TRANSMITTER  .
