Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Side Of Engine Compartment
G00074842

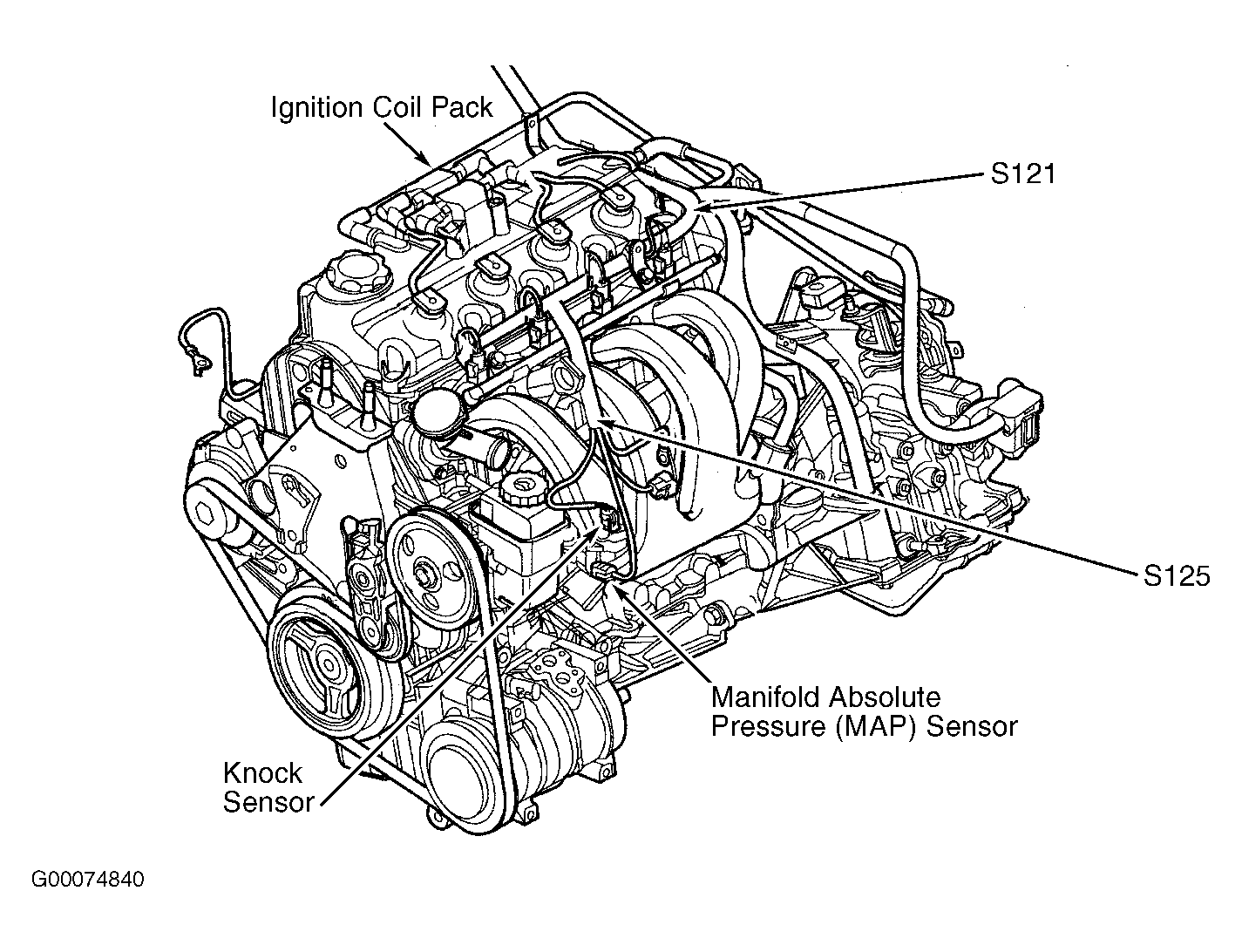

Fig 2: Left Side Of Engine
G00074840

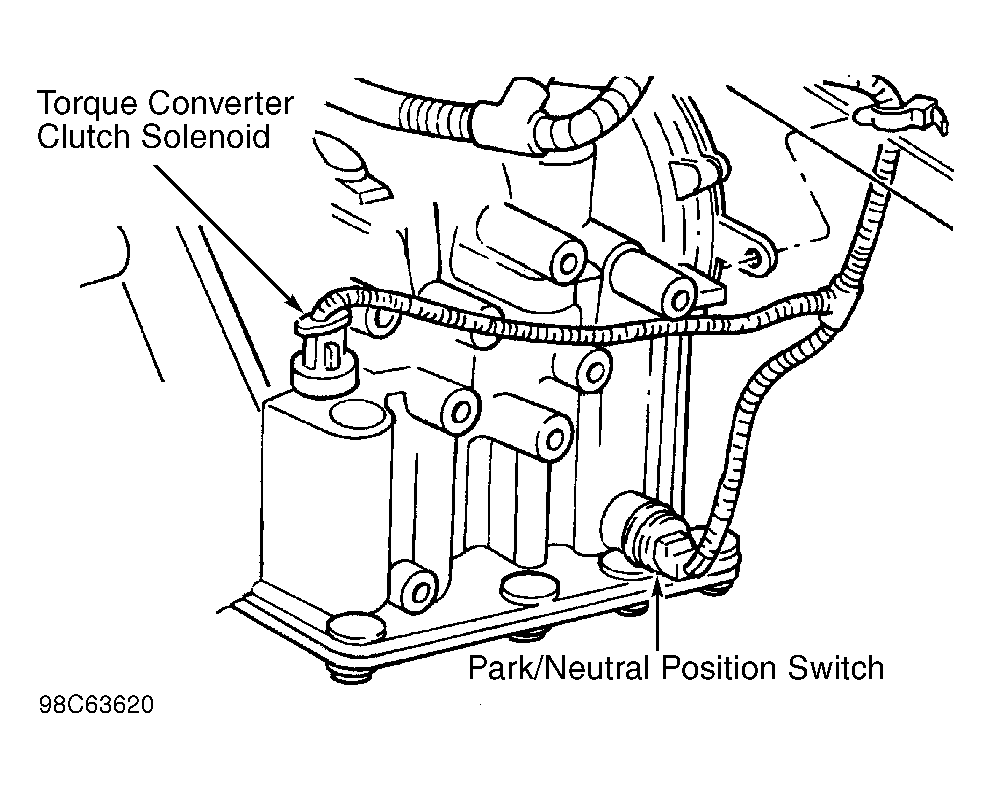

Fig 3: Transaxle
G98C63620

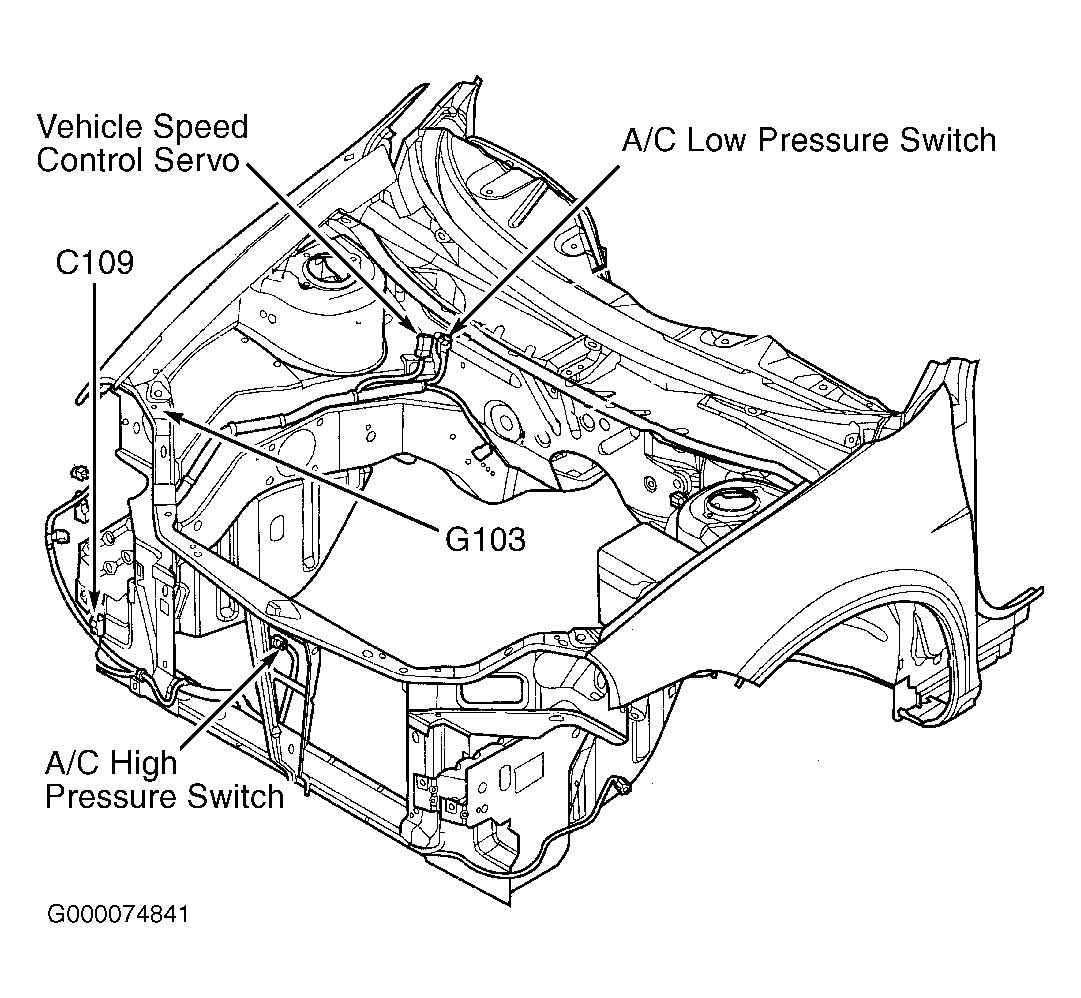

Fig 4: Engine Compartment
G00074841
