Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Under center console, near handbrake. |

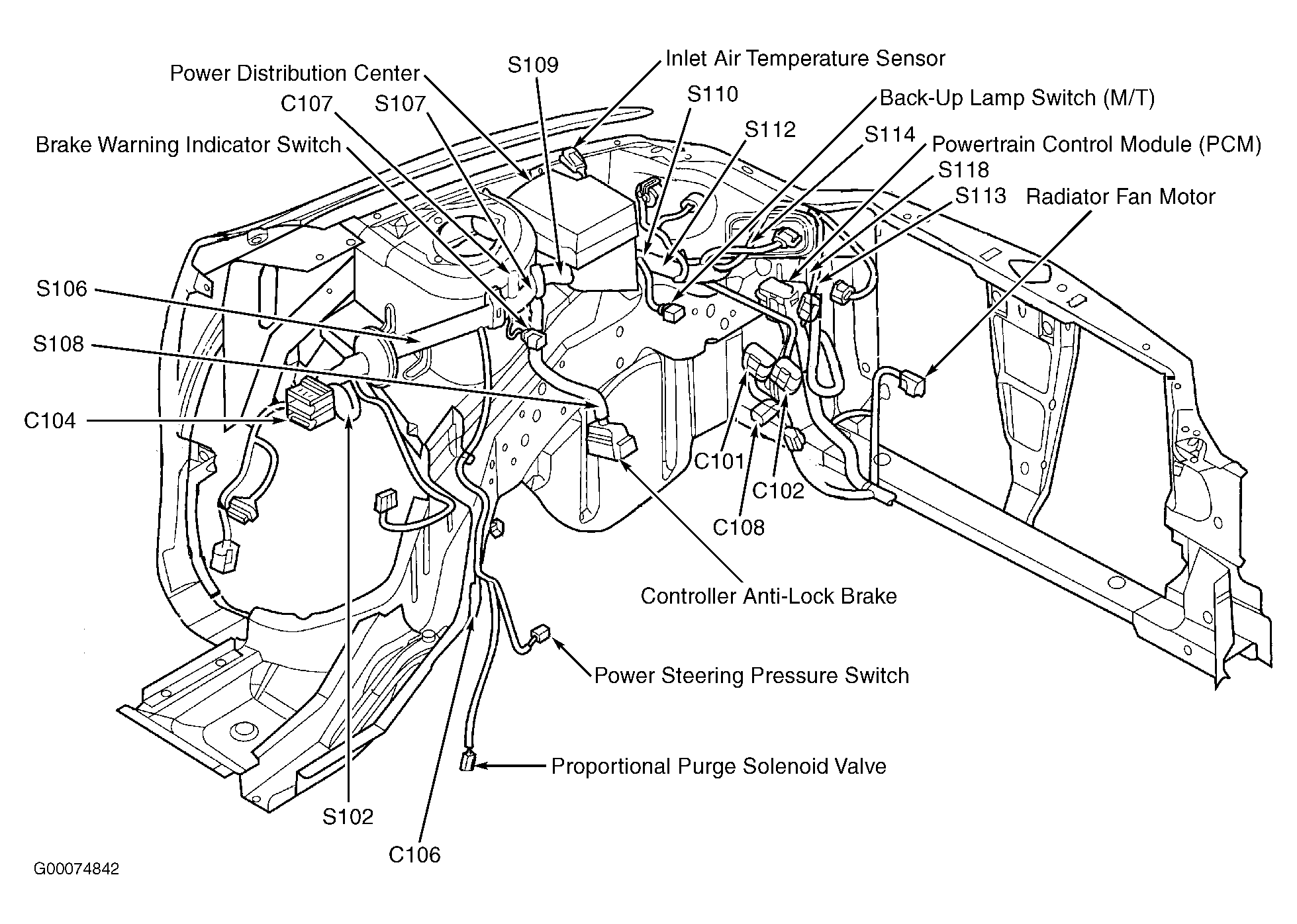

| Controller Anti-Lock Brake | On left front frame rail, below master cylinder. See Figure . |
| Daytime Running Lamp (DRL) Module | Integral with instrument cluster. |
| Fuel Pump Module | On fuel tank. |
| Powertrain Control Module (PCM) | In left front of engine compartment, below air cleaner housing. See Figure . |
| Remote Keyless Entry (RKE) Module | Under center of dash, above HVAC controls. |
| Sentry Key Immobilizer Module (SKIM) | On right side of steering column. |
| Sun Roof Control Module | Above headliner, in front of sun roof opening. |
