Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	Illustration
Brake Switch	Fig 1
Camshaft Position Sensor	Fig 2
Crankshaft Position Sensor	Fig 3
Data Link Connector (DLC)	Fig 4
Downstream (1/2) Oxygen Sensor	Fig 5
Engine Coolant Temperature Sensor	Fig 6
EVAP Purge Solenoid	Fig 7
Fuel Pump Module	Fig 8
MAP Sensor	Fig 9
Idle Air Control Motor	Fig 10
Instrument Cluster	Fig 11
Ignition Coil	Fig 12
Injector	Fig 13
Knock Sensor	Fig 14
Leak Detection Pump	Fig 15
Park/Neutral Switch (A/T)	Fig 16
Power Steering Pressure Switch	Fig 17
Powertrain Control Module (PCM)	Fig 18
Radiator Fan Control Relay	Fig 19
Speed Control Servo	Fig 21
Throttle Position Sensor	Fig 22
Torque Converter Clutch Solenoid (A/T)	Fig 23
Upstream (1/1) Oxygen Sensor	Fig 24
Vehicle Speed Sensor	Fig 25

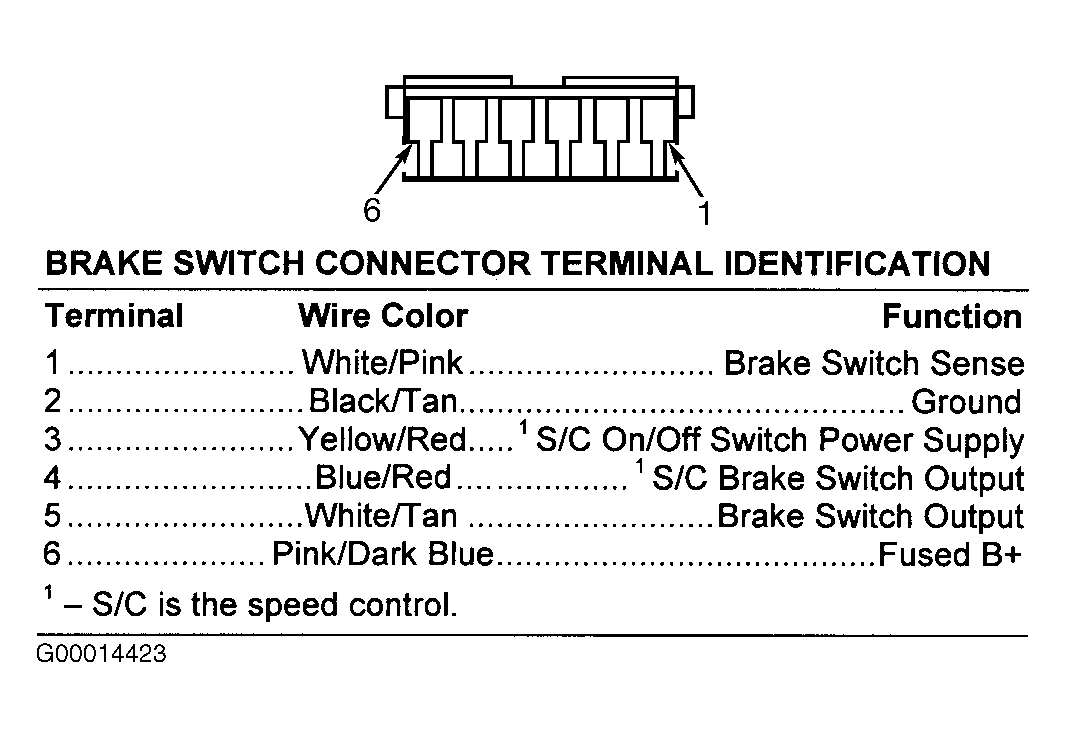

Fig 1: Identifying Brake Switch Connector Terminals

G00014423

Courtesy of DAIMLERCHRYSLER CORPORATION

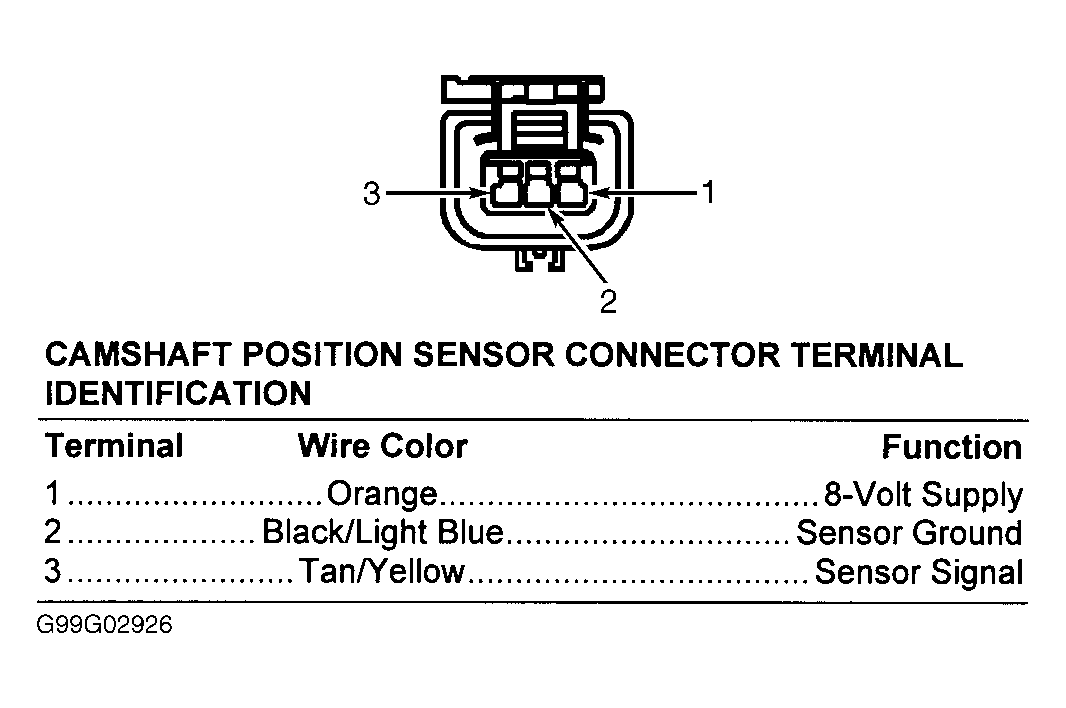

Fig 2: Identifying Camshaft Position Sensor Connector Terminals

G99G02926

Courtesy of DAIMLERCHRYSLER CORPORATION

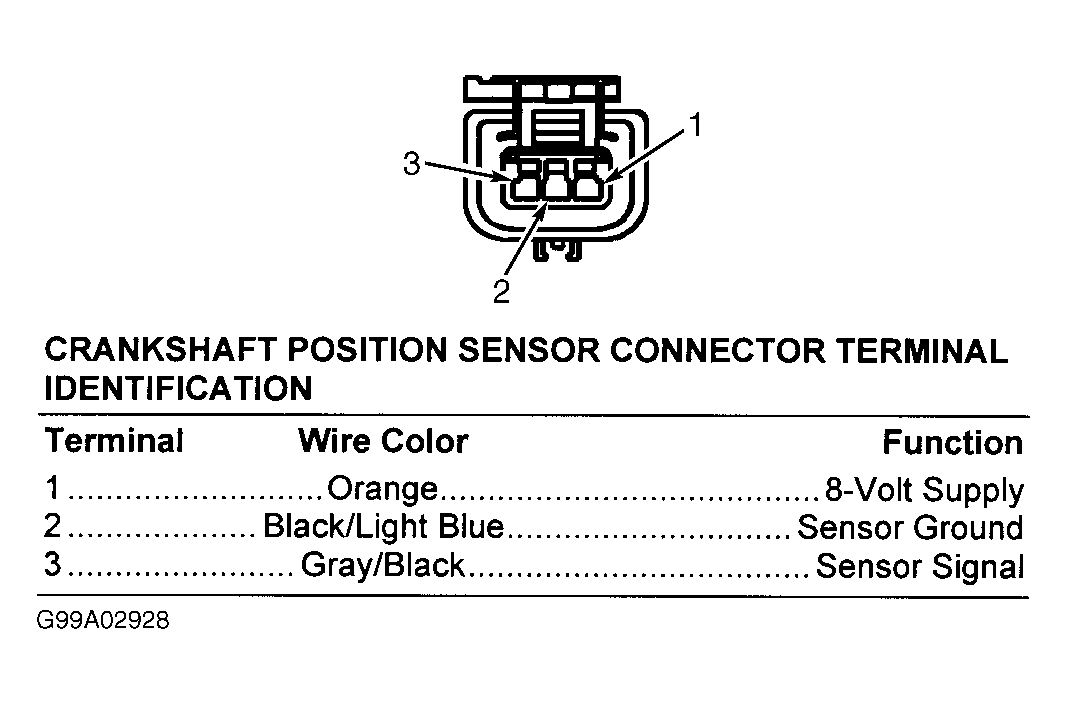

Fig 3: Identifying Crankshaft Position Sensor Connector Terminals

G99A02928

Courtesy of DAIMLERCHRYSLER CORPORATION

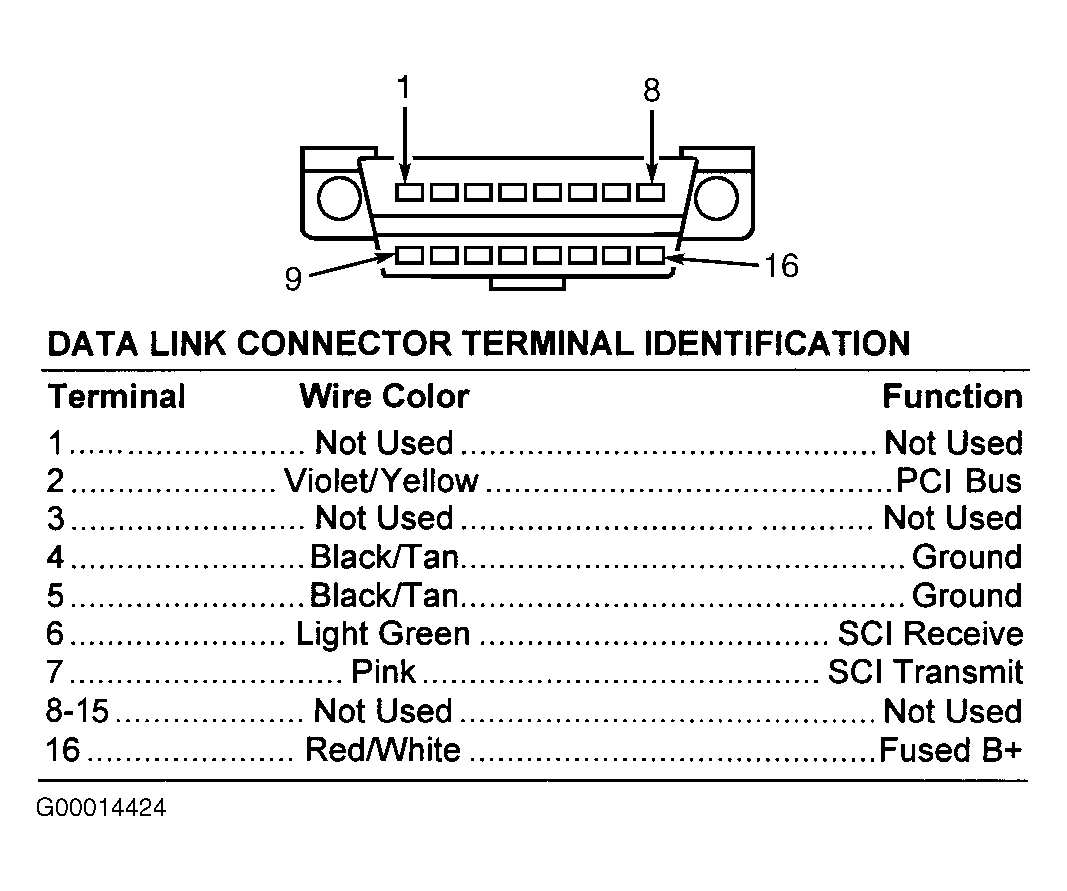

Fig 4: Identifying Data Link Connector (DLC) Terminals

G00014424

Courtesy of DAIMLERCHRYSLER CORPORATION

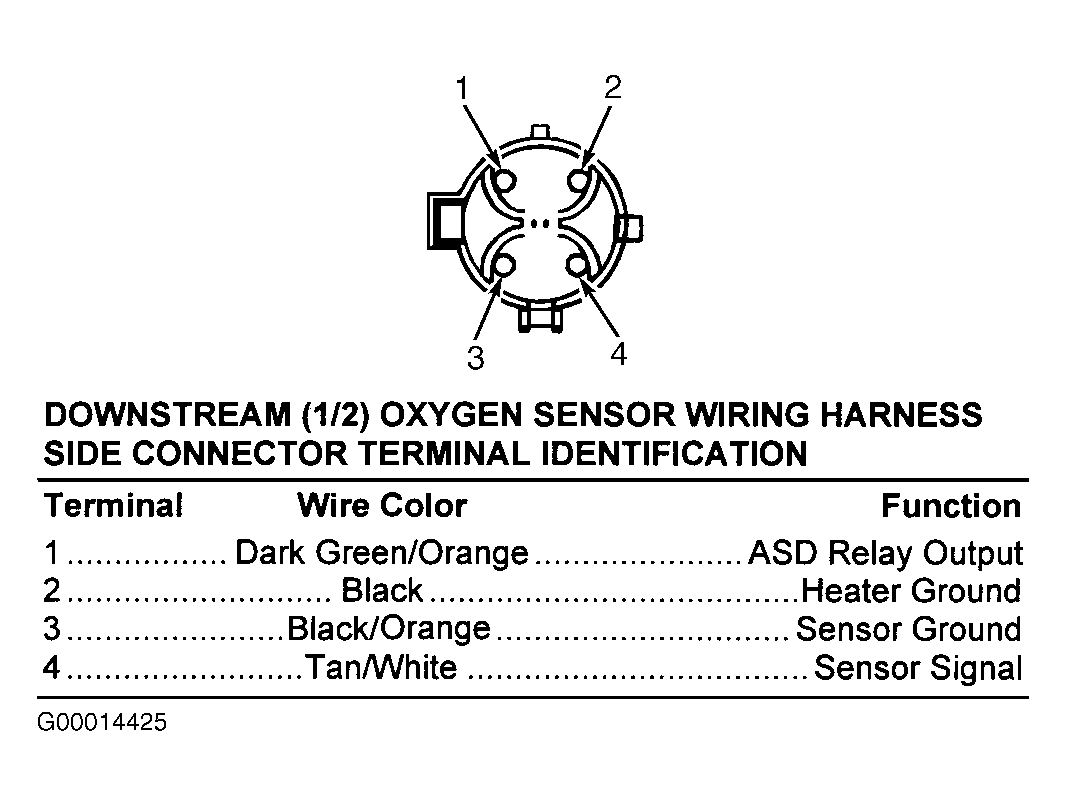

Fig 5: Identifying Downstream (1/2) Oxygen Sensor Connector Terminals

G00014425

Courtesy of DAIMLERCHRYSLER CORPORATION

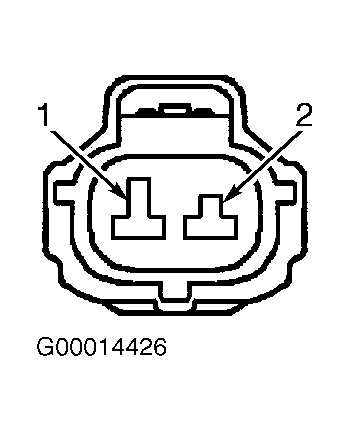

Fig 6: Identifying Engine Coolant Temp. Sensor Connector Terminals

G00014426

Courtesy of DAIMLERCHRYSLER CORPORATION

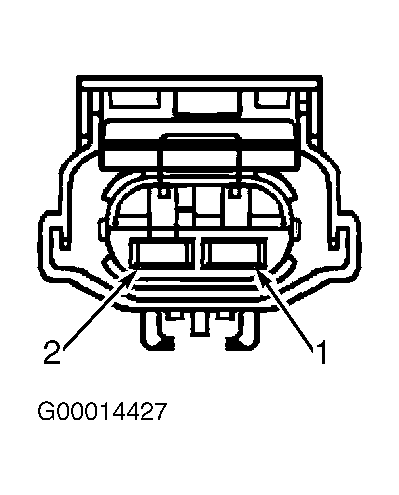

Fig 7: Identifying EVAP Purge Solenoid Connector Terminals

G00014427

Courtesy of DAIMLERCHRYSLER CORPORATION

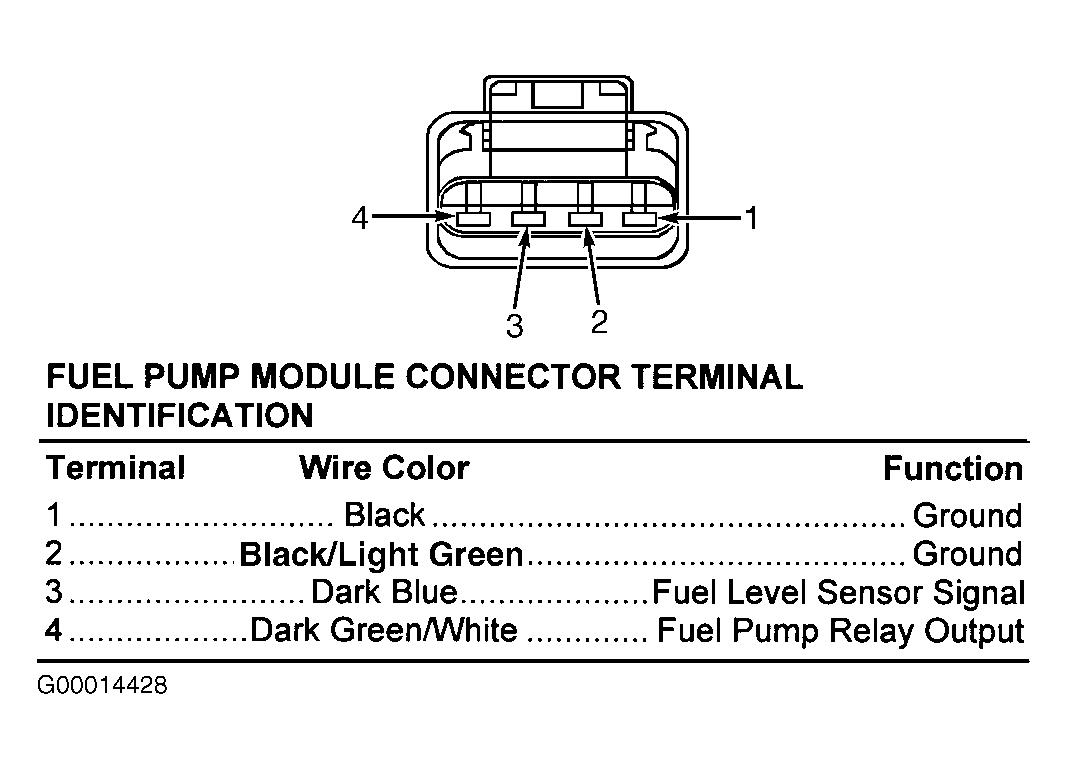

Fig 8: Identifying Fuel Pump Module Connector Terminals

G00014428

Courtesy of DAIMLERCHRYSLER CORPORATION

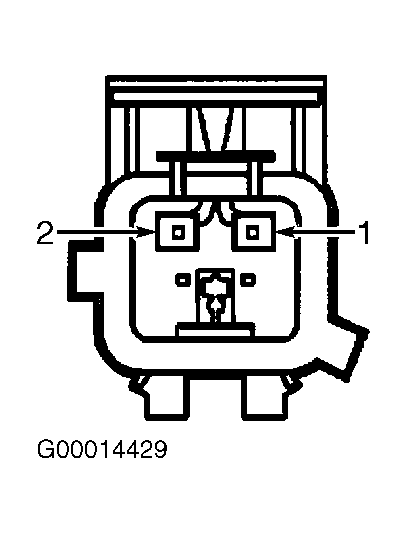

Fig 9: Identifying IAT Sensor Connector Terminals

G00014429

Courtesy of DAIMLERCHRYSLER CORPORATION

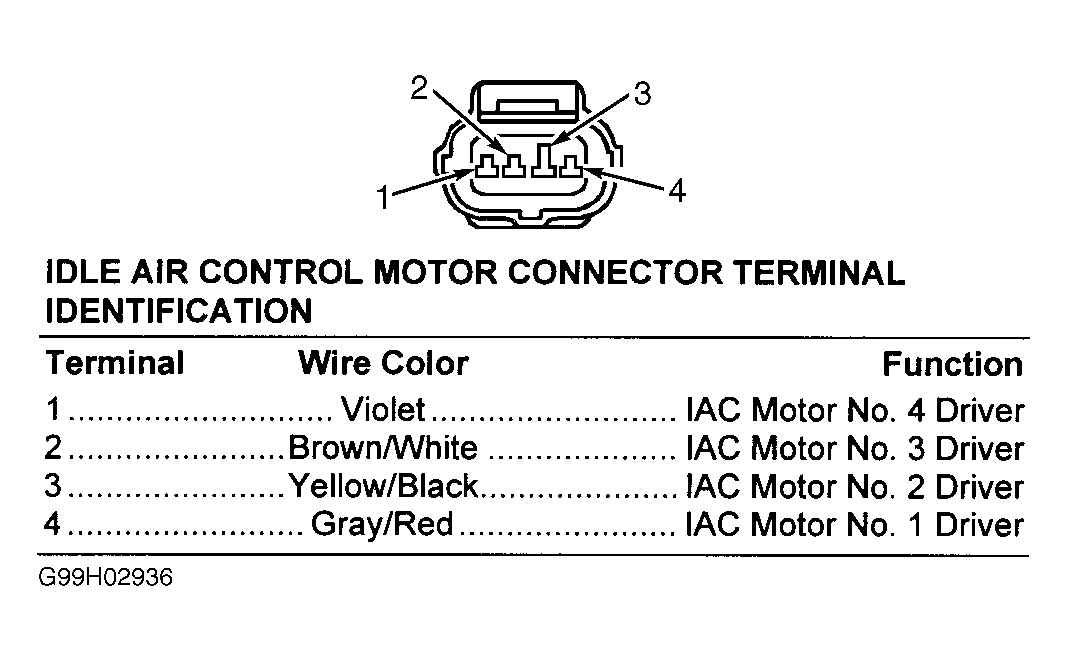

Fig 10: Identifying Idle Air Control Motor Connector Terminals

G99H02936

Courtesy of DAIMLERCHRYSLER CORPORATION

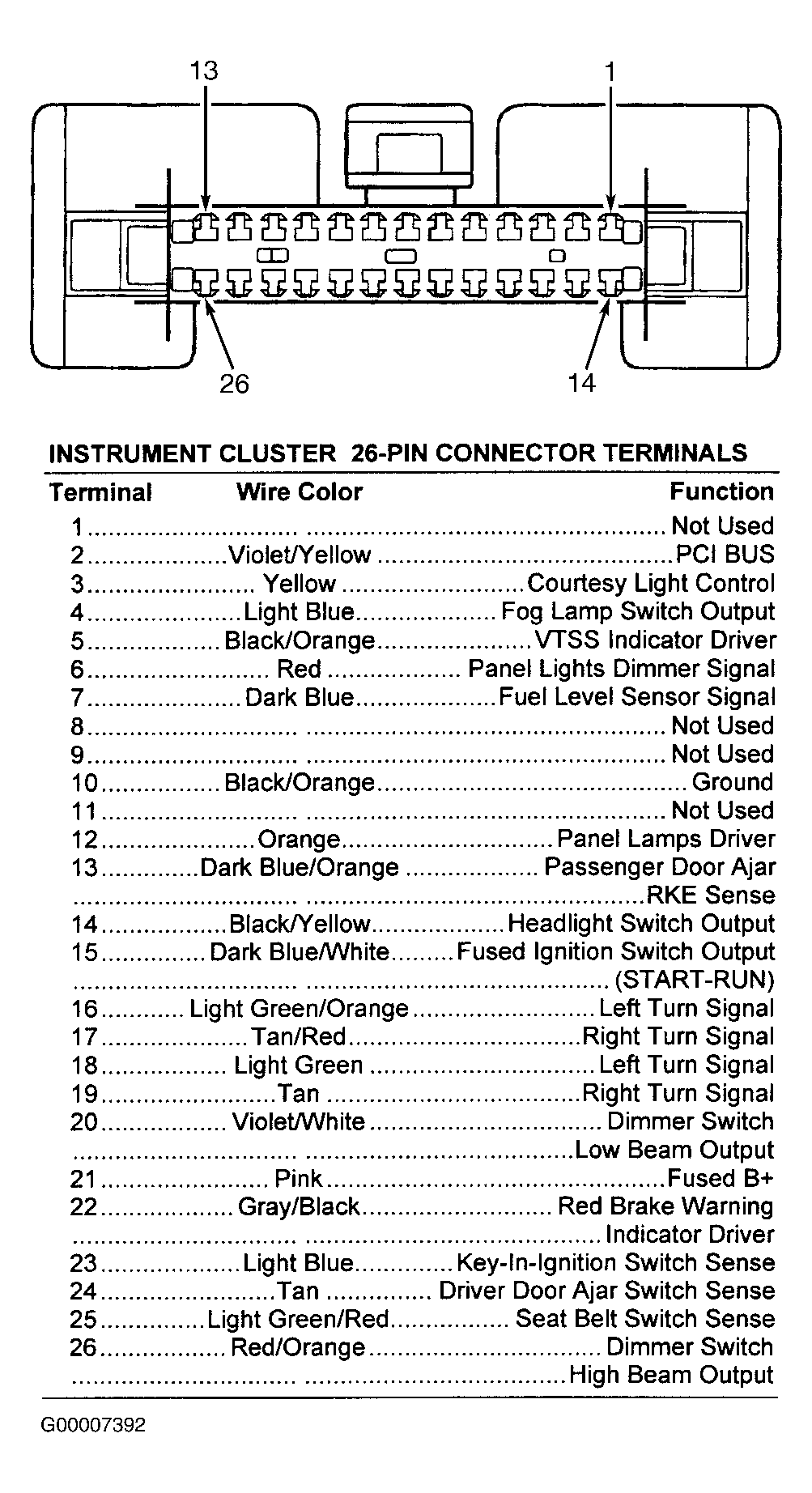

Fig 11: Identifying Instrument Cluster Connector Terminals

G00007392

Courtesy of DAIMLERCHRYSLER CORPORATION

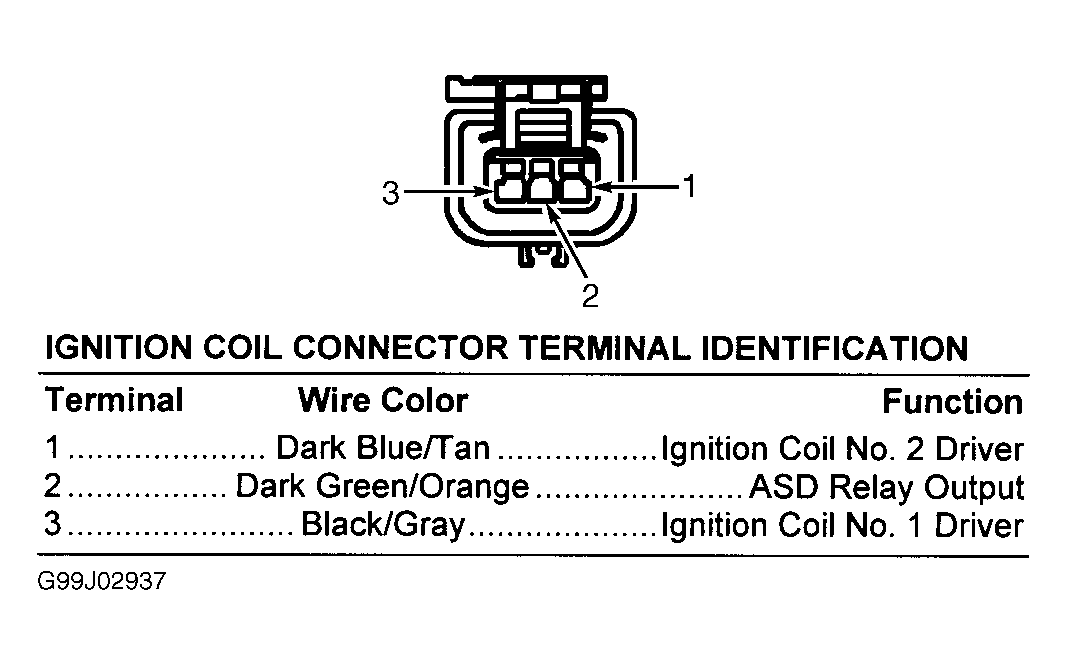

Fig 12: Identifying Ignition Coil Connector Terminals

G99J02937

Courtesy of DAIMLERCHRYSLER CORPORATION

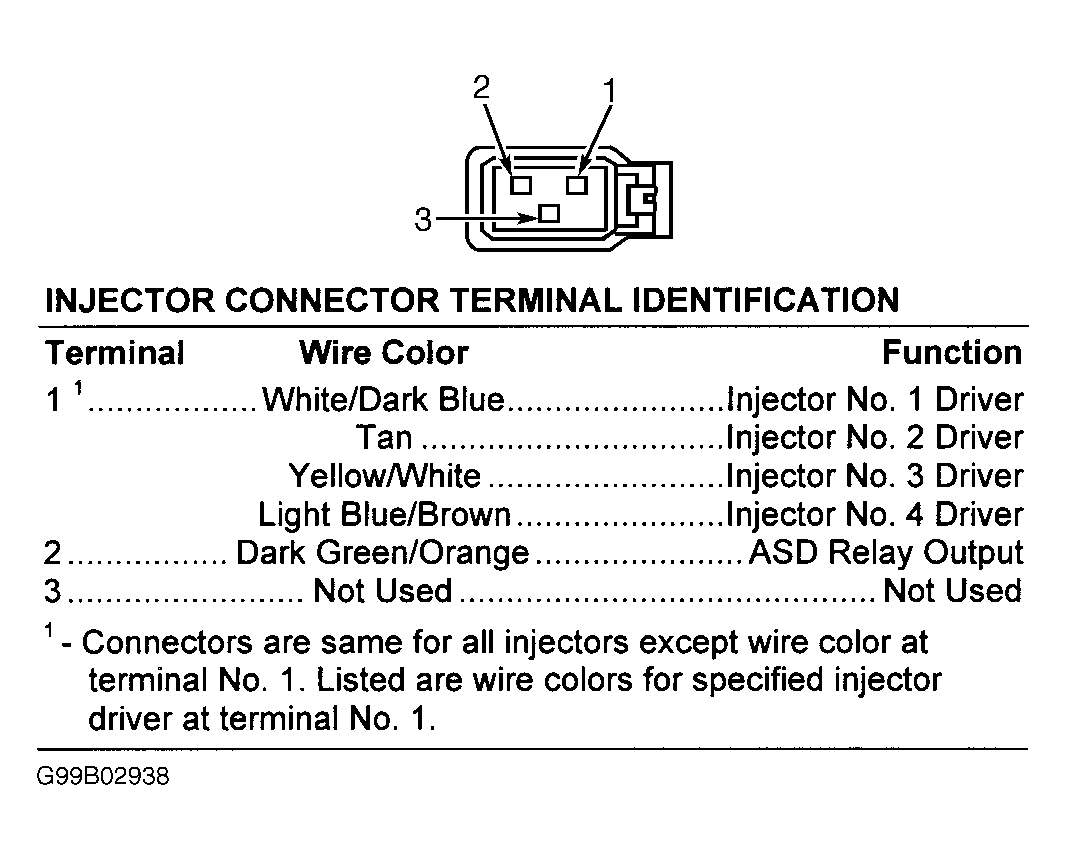

Fig 13: Identifying Injector Connector Terminals

G99B02938

Courtesy of DAIMLERCHRYSLER CORPORATION

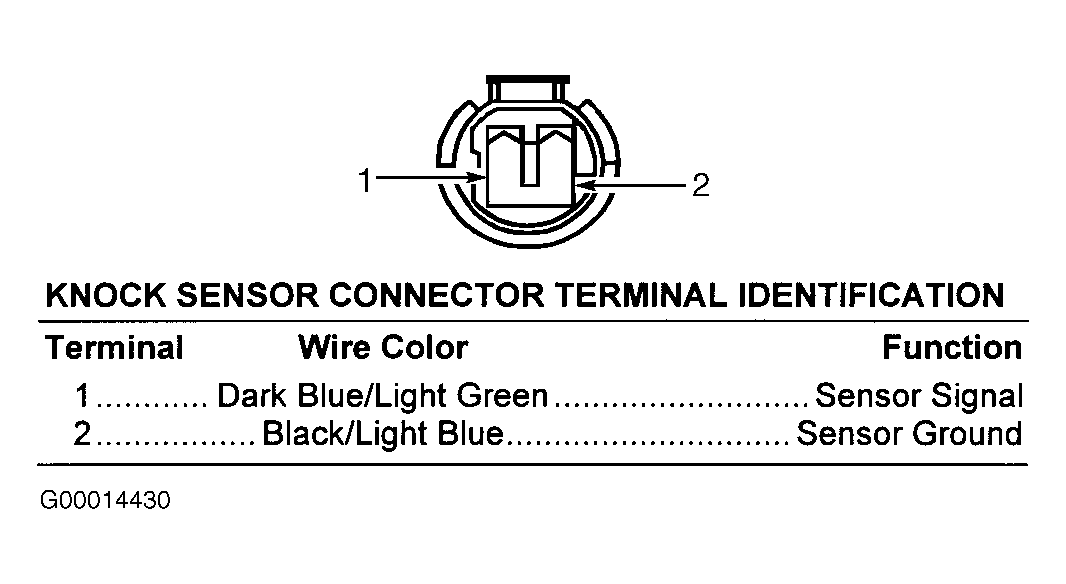

Fig 14: Identifying Knock Sensor Connector Terminals

G00014430

Courtesy of DAIMLERCHRYSLER CORPORATION

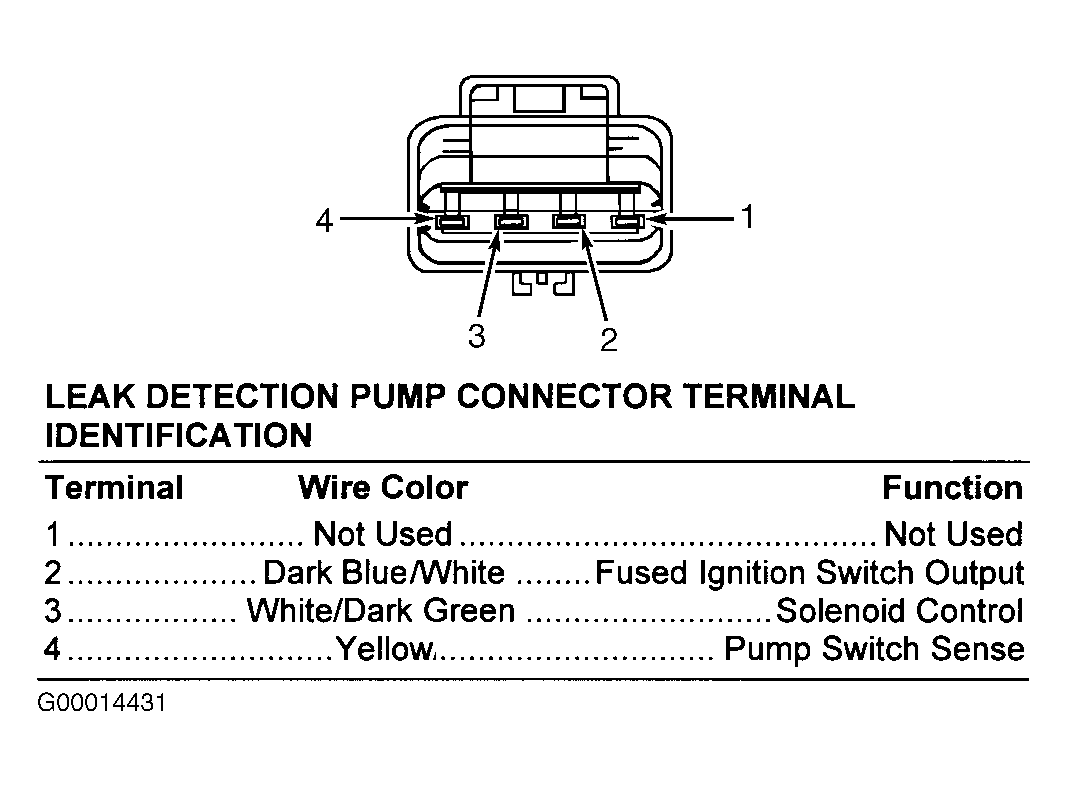

Fig 15: Identifying Leak Detection Pump Connector Terminals

G00014431

Courtesy of DAIMLERCHRYSLER CORPORATION

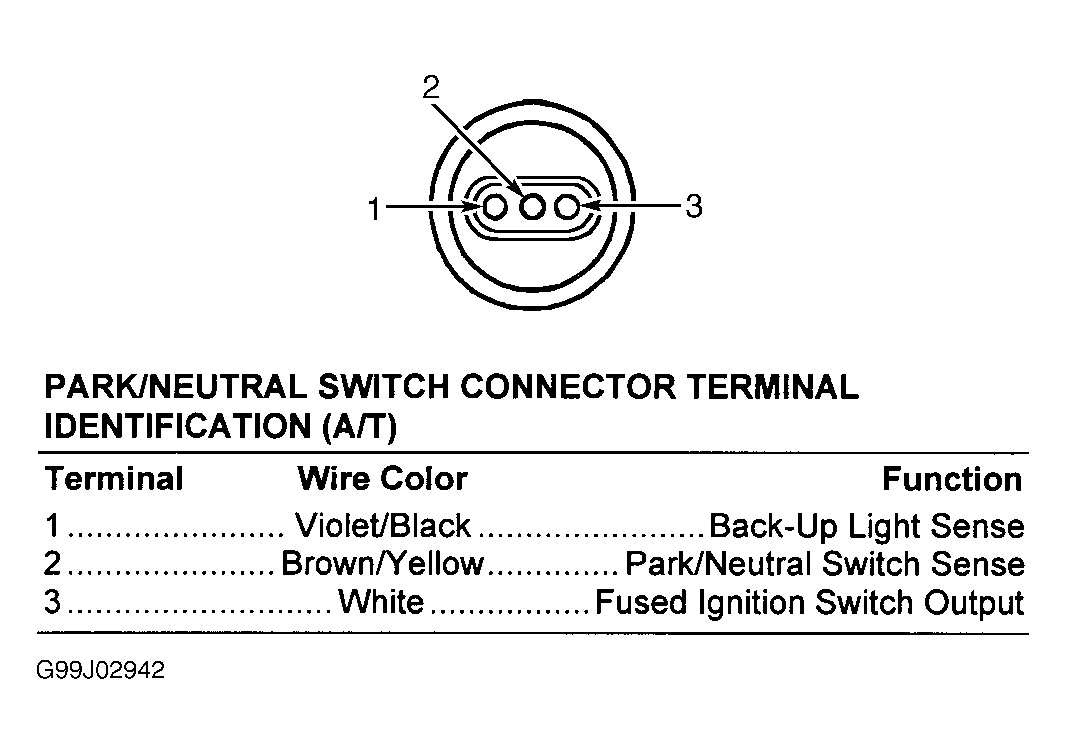

Fig 16: Identifying Park/Neutral Switch Connector Terminals (A/T)

G99J02942

Courtesy of DAIMLERCHRYSLER CORPORATION

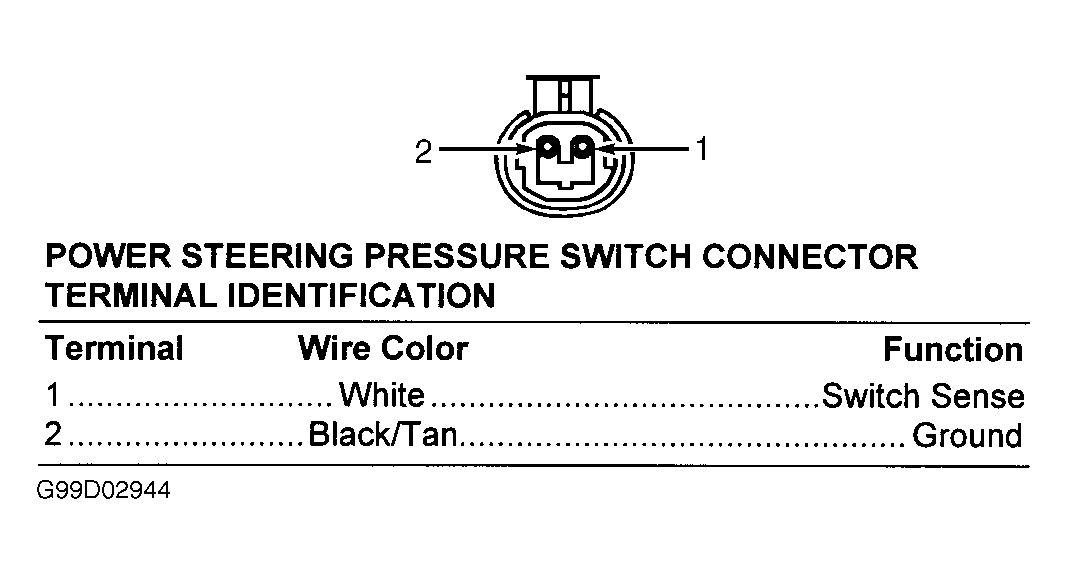

Fig 17: Identifying Power Steering Pressure Switch Connector Terminals

G99D02944

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Powertrain Control Module Connector Terminal Identification

G95I12680

Courtesy of DAIMLERCHRYSLER CORPORATION

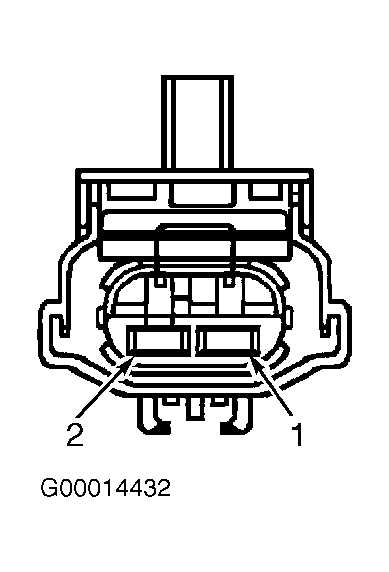

Fig 19: Identifying Radiator Fan Motor Connector Terminals

G00014432

Courtesy of DAIMLERCHRYSLER CORPORATION

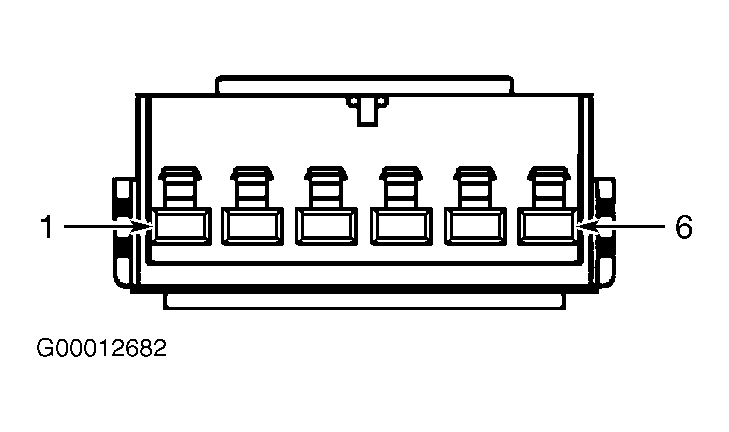

Fig 20: Identifying Sentry Key Immobilizer Module (SKIM) Connector Terminals

G00012682

Courtesy of DAIMLERCHRYSLER CORPORATION

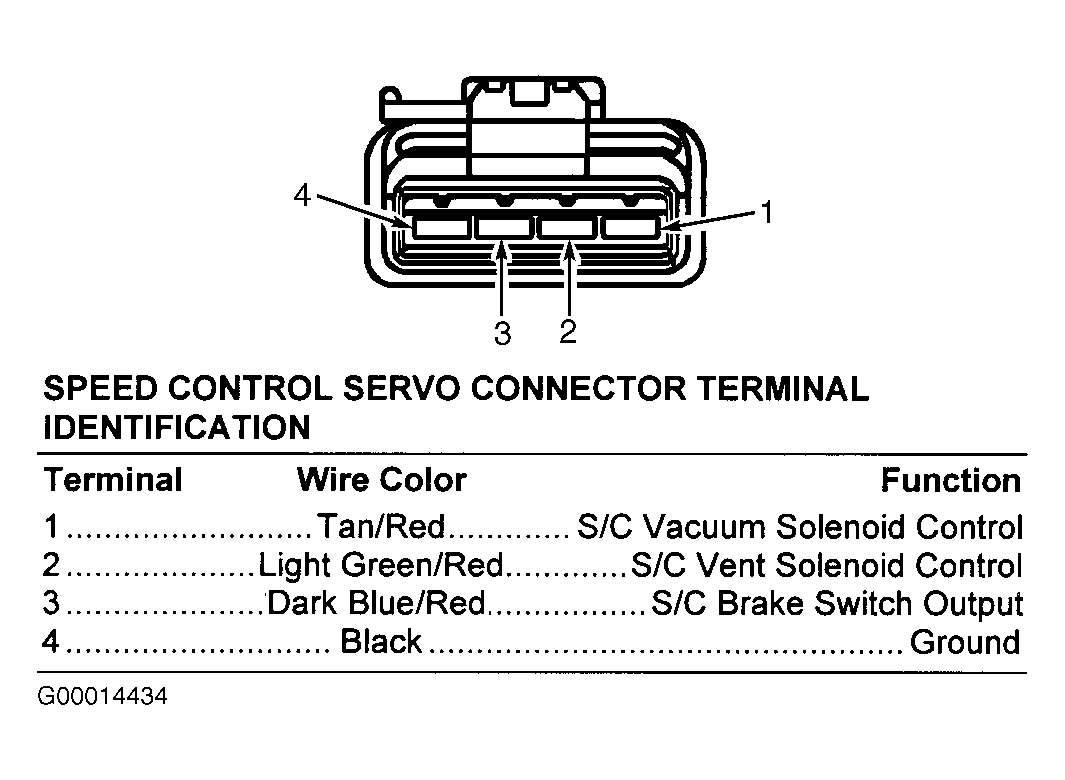

Fig 21: Identifying Speed Control Servo Connector Terminals

G00014434

Courtesy of DAIMLERCHRYSLER CORPORATION

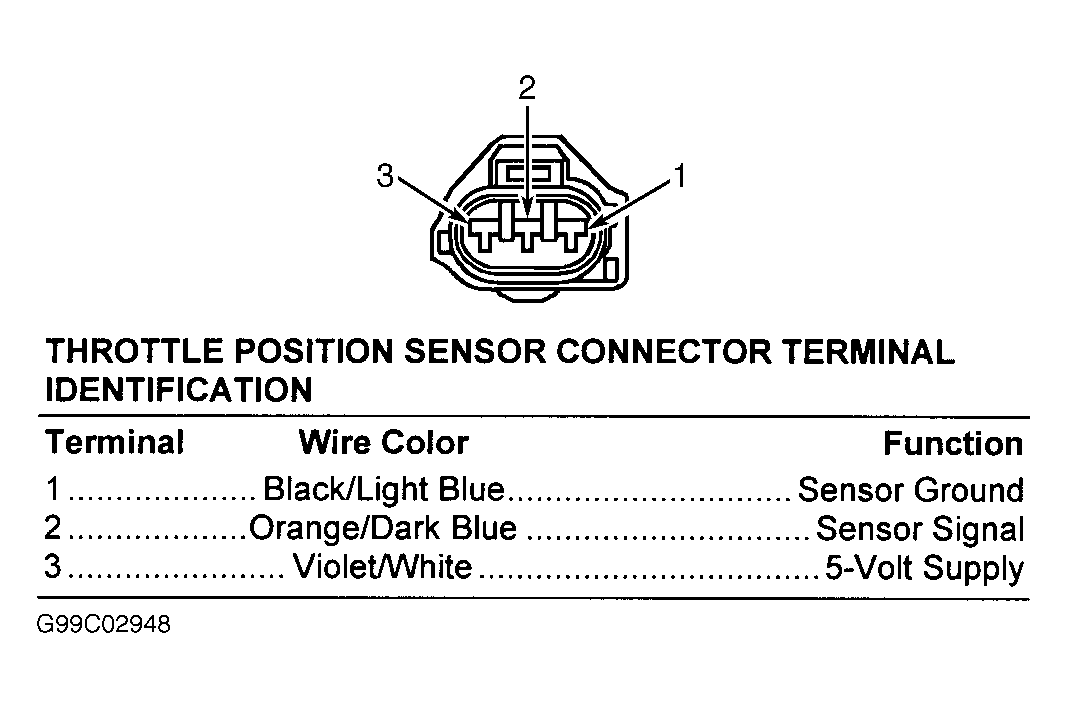

Fig 22: Identifying TP Sensor Connector Terminals

G99C02948

Courtesy of DAIMLERCHRYSLER CORPORATION

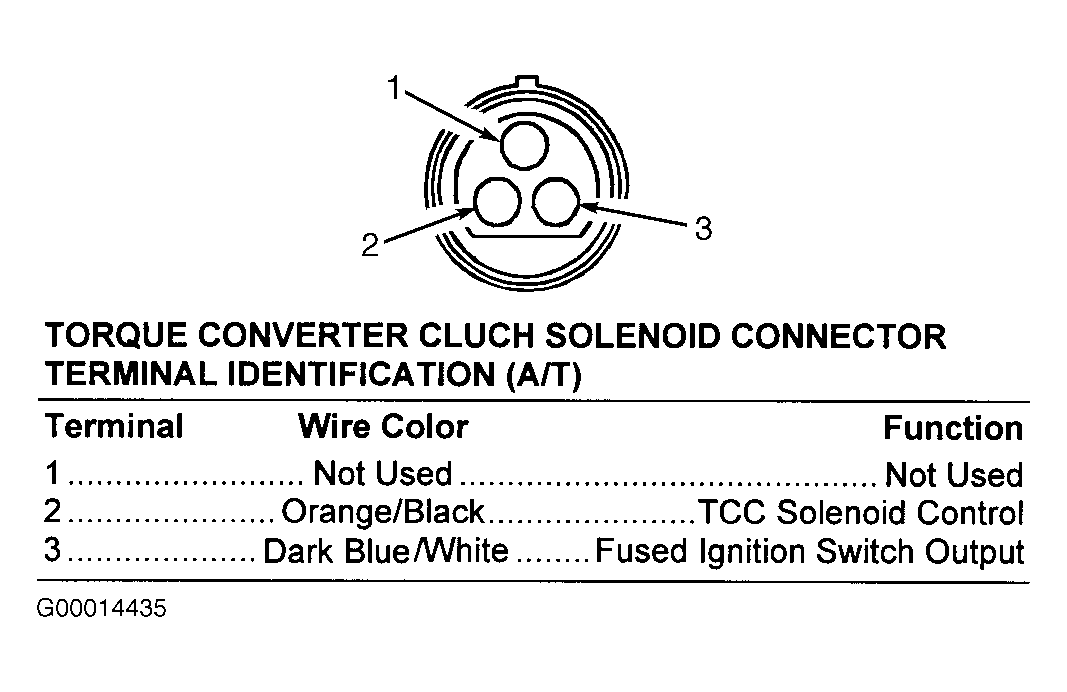

Fig 23: Identifying Torque Converter Clutch Solenoid (A/T) Connector Terminals

G00014435

Courtesy of DAIMLERCHRYSLER CORPORATION

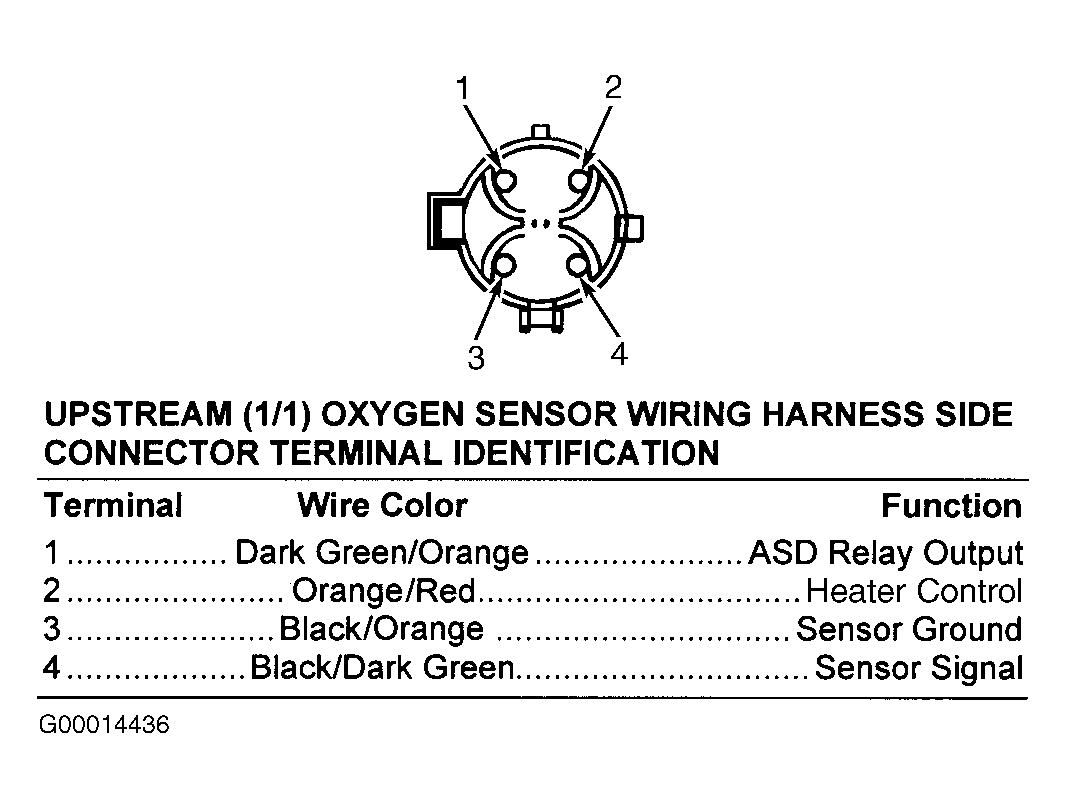

Fig 24: Identifying Upstream (1/1) Oxygen Sensor Connector Terminals

G00014436

Courtesy of DAIMLERCHRYSLER CORPORATION

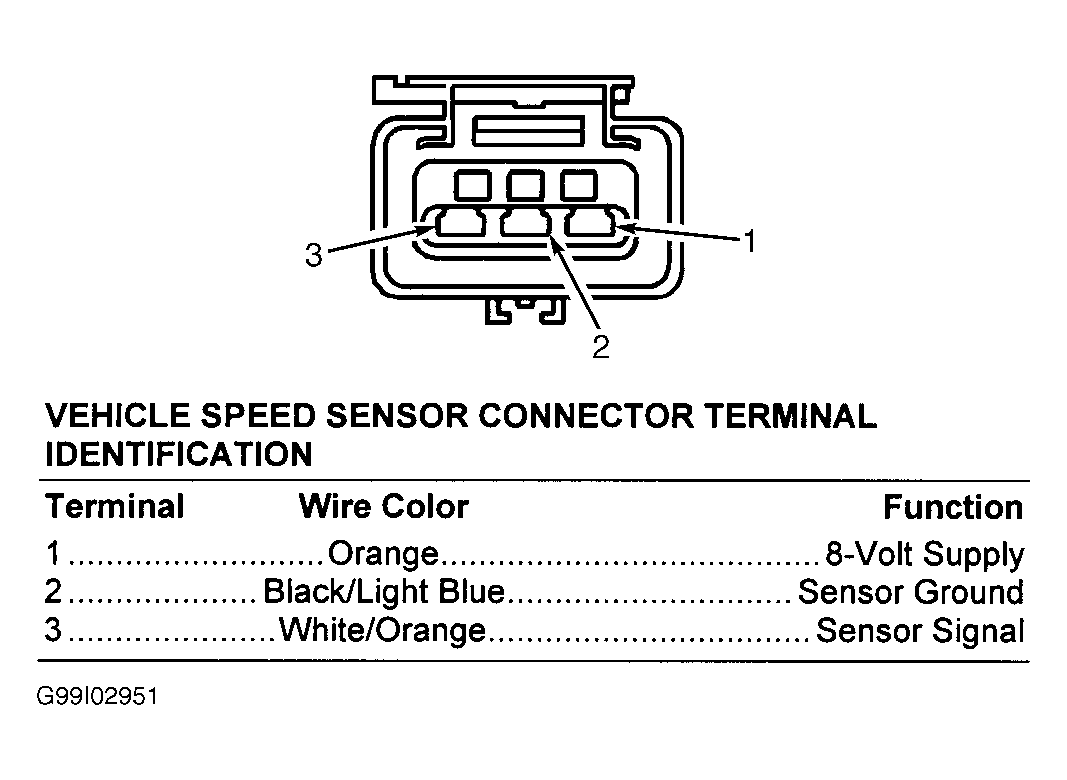

Fig 25: Identifying Vehicle Speed Sensor Connector Terminals

G99I02951

Courtesy of DAIMLERCHRYSLER CORPORATION
