Powertrain Control Module Location

Powertrain Control Module (PCM) is located in engine compartment, between air cleaner and radiator. See Fig 1. If replacing the PCM, the PCM must be properly programmed. See POWERTRAIN CONTROL MODULE PROGRAMMING .

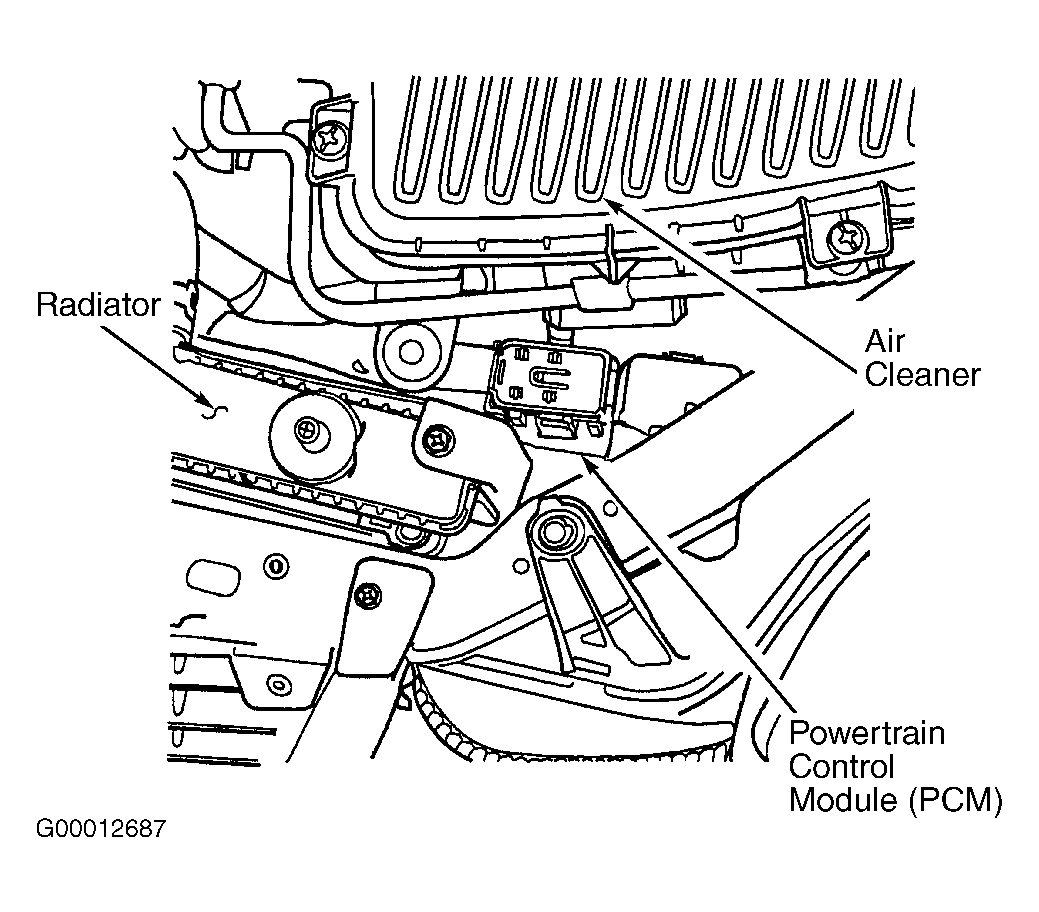

Fig 1: Locating Powertrain Control Module (PCM)

Courtesy of DAIMLERCHRYSLER CORPORATION
