Powertrain Control Module Location

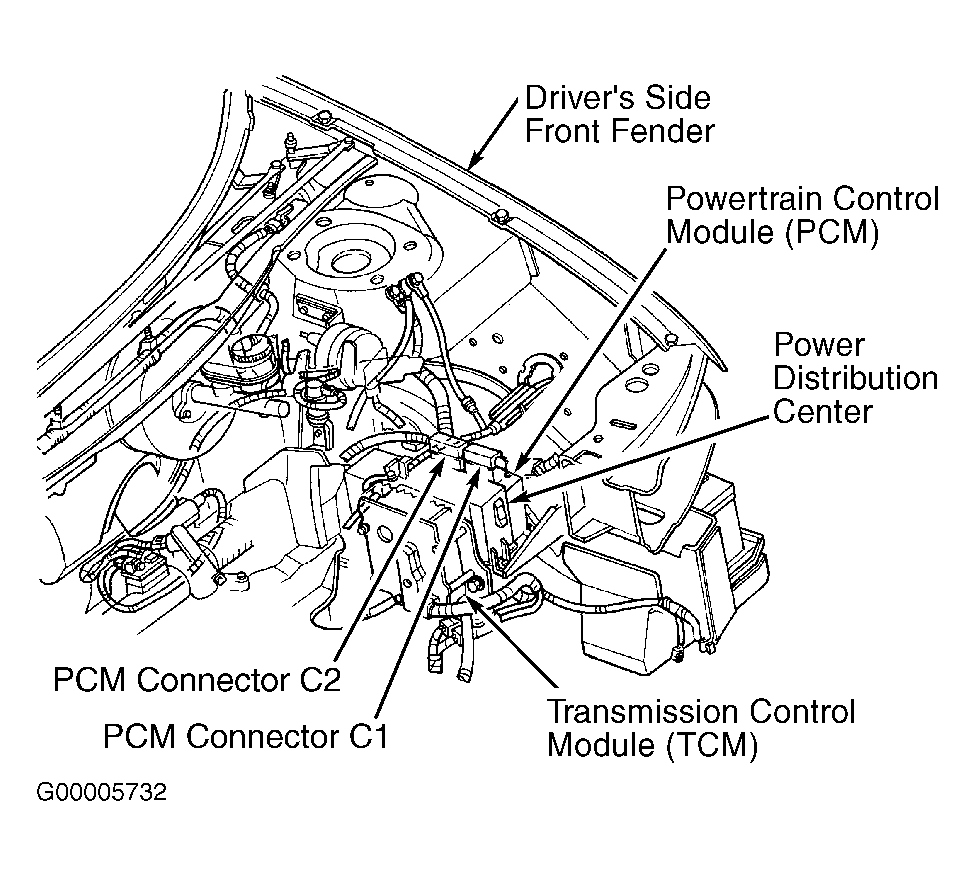

Powertrain Control Module (PCM) is located at driver's side front corner of engine compartment, just below air cleaner assembly. See Fig 1 . If replacing the PCM, PCM must be properly programmed. See POWERTRAIN CONTROL MODULE PROGRAMMING under PROGRAMMING.
