Control Assembly, HVAC

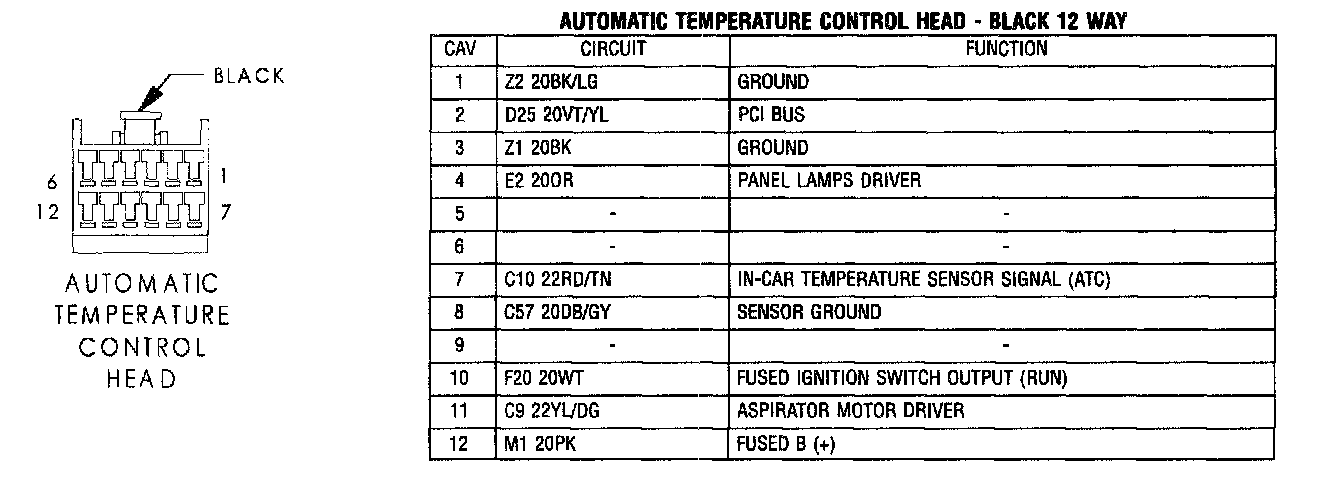

Automatic Temperature Control Head:

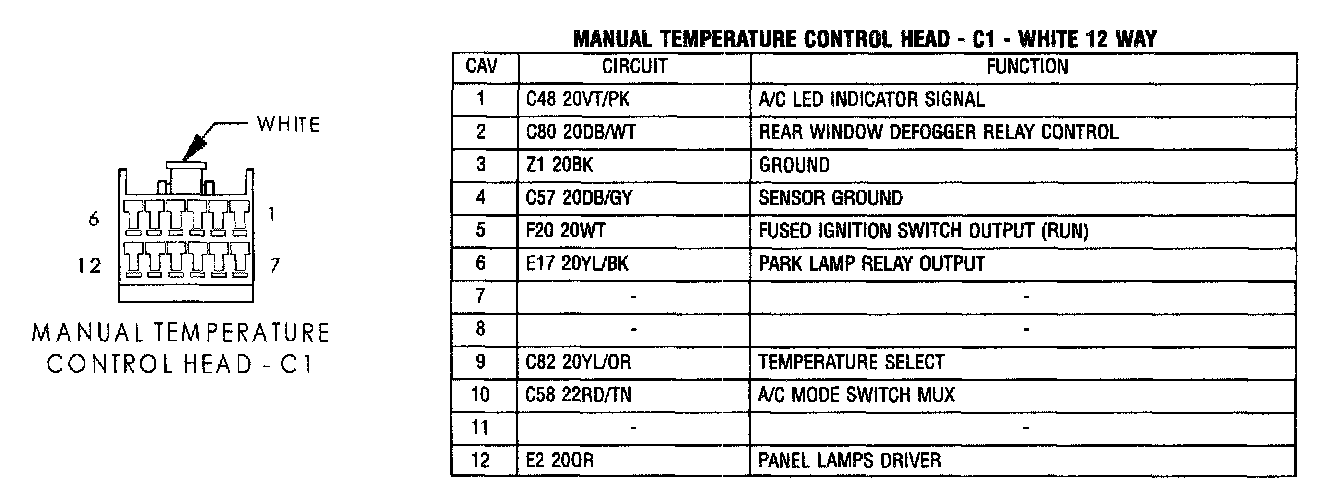

Manual Temperature Control Head - C1:

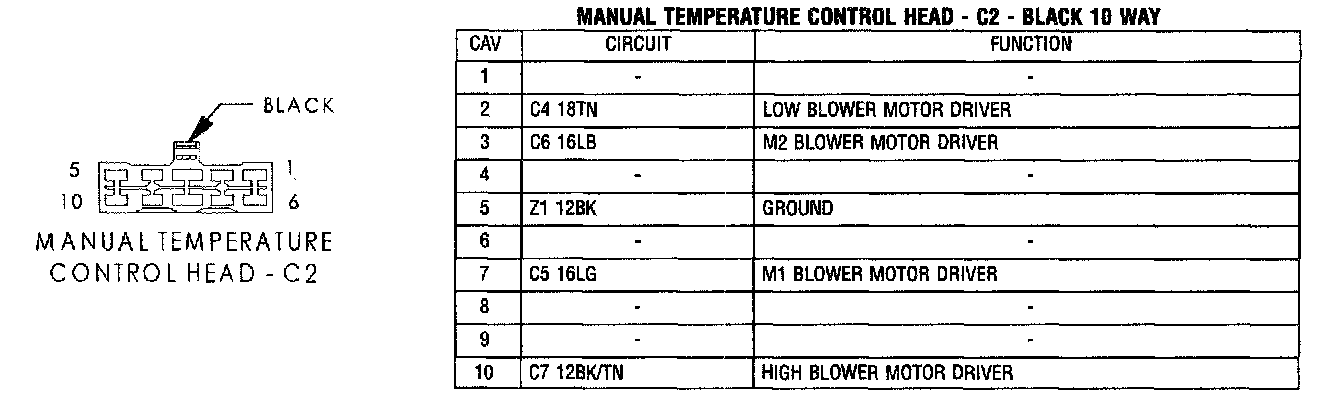

Manual Temperature Control Head - C2:
