Memory Positioning Switch: Description and Operation

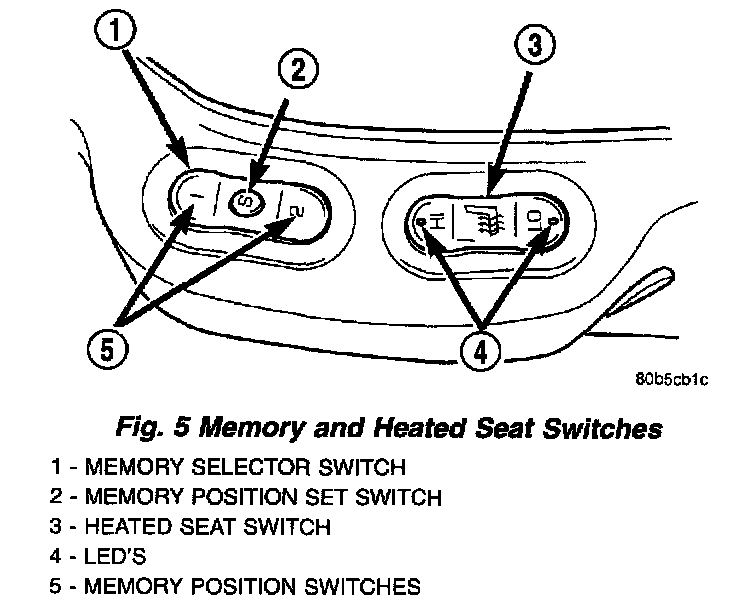

Fig.5 Memory And Heated Seat Switches:

Memory Selector Switch:

MEMORY SET SWITCH
The memory selector switch is mounted on the drivers seat cushion side shield, within easy reach of the driver. This switch provides a way to set new and recall preset positions of seat, seat recliner, and the side view mirror.

The proper procedure of setting and recalling a memory position using the memory switches is as follows:
1. Adjust the seat, recliner and side view mirrors to the desired position.
2. Press momentarily and release memory switch S.
3. Press momentarily and release memory switch 1 or 2.
4. To program the second driver's position, repeat the above procedure using the remaining memory switch.
5. To recall either of the programmed positions, momentarily press and release either memory selector switch 1 or 2.
