Wheel Speed Sensor

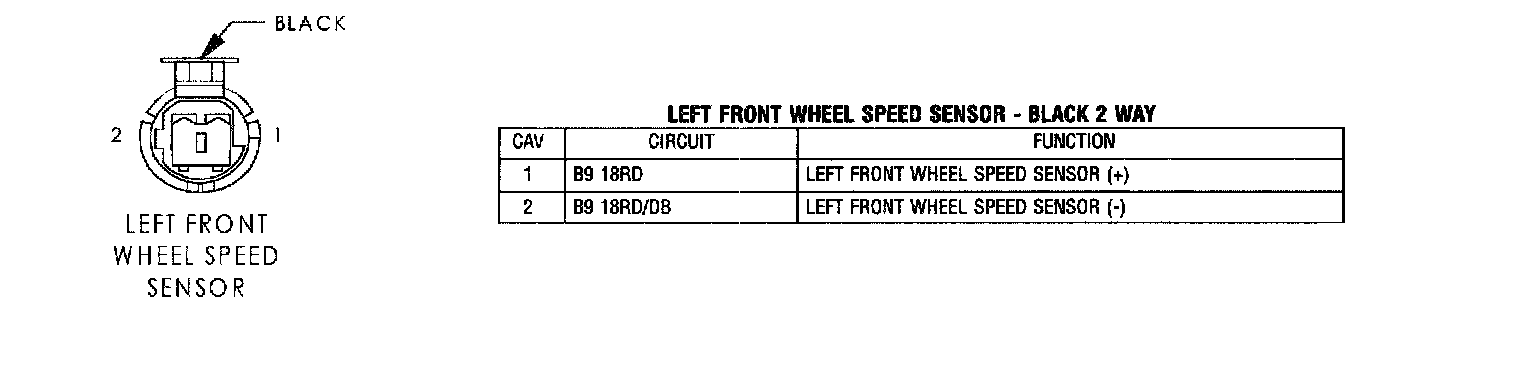

Left Front Wheel Speed Sensor - Black 2 Way

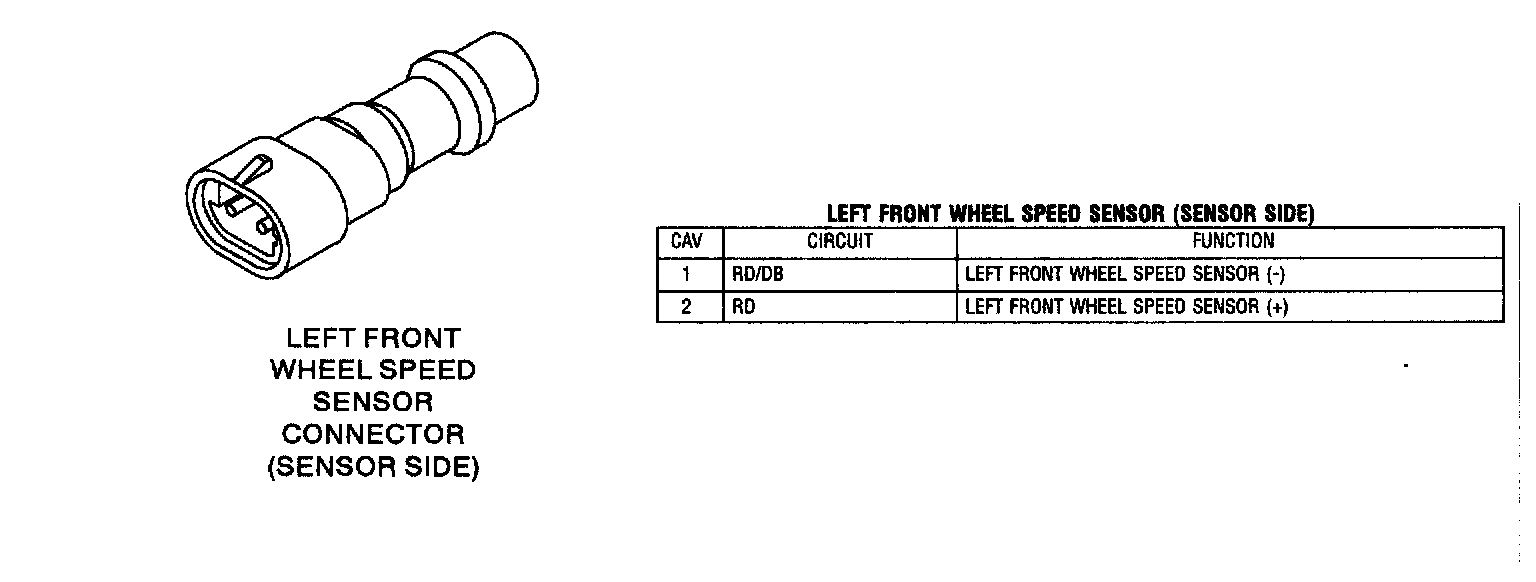

Left Front Wheel Speed Sensor - (Sensor Side)

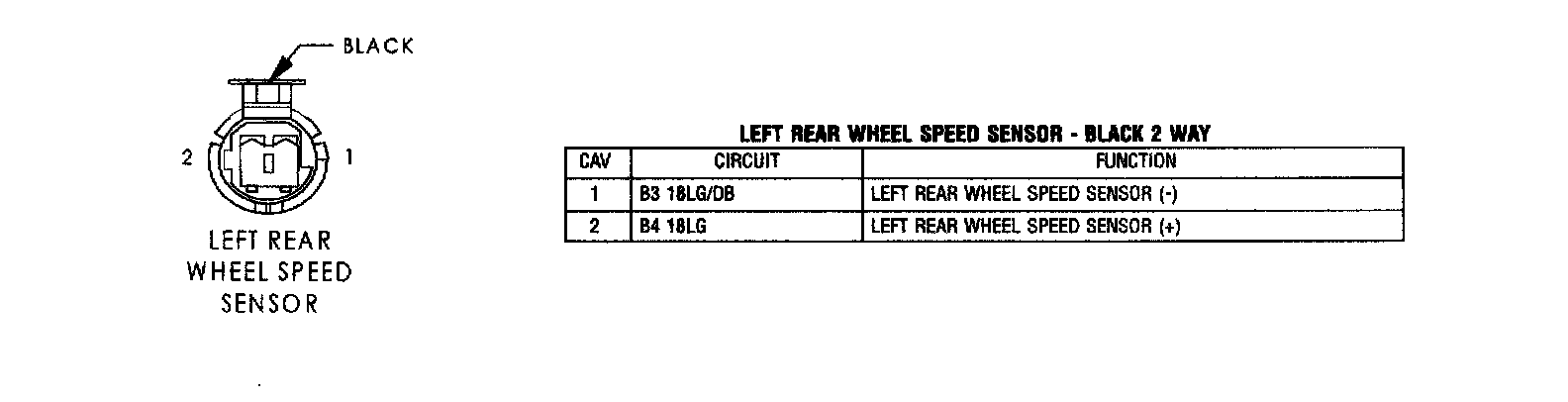

Left Rear Wheel Speed Sensor - Black 2 Way

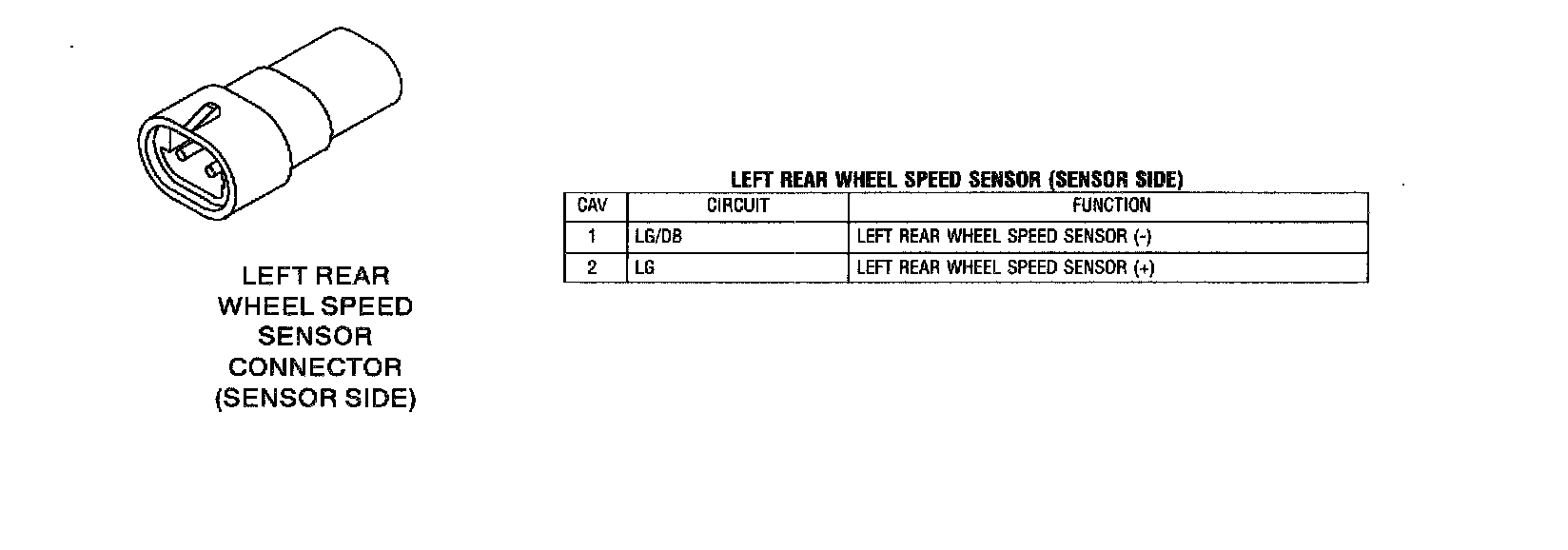

Left Rear Wheel Speed Sensor - (Sensor Side)

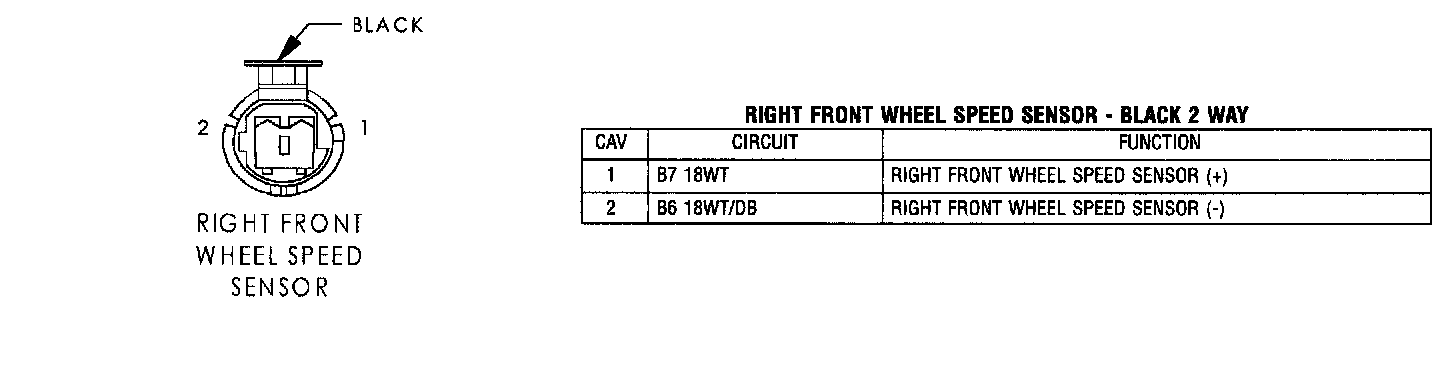

Right Front Wheel Speed Sensor - Black 2 Way

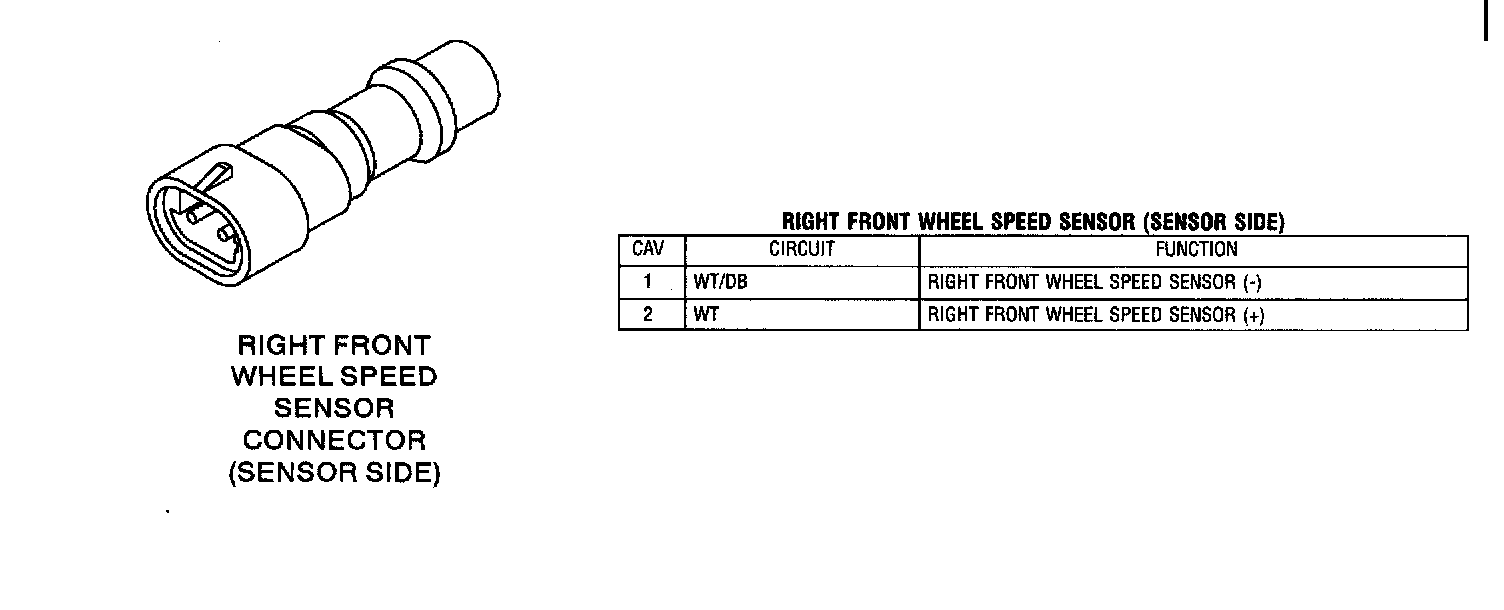

Right Front Wheel Speed Sensor - (Sensor Side)

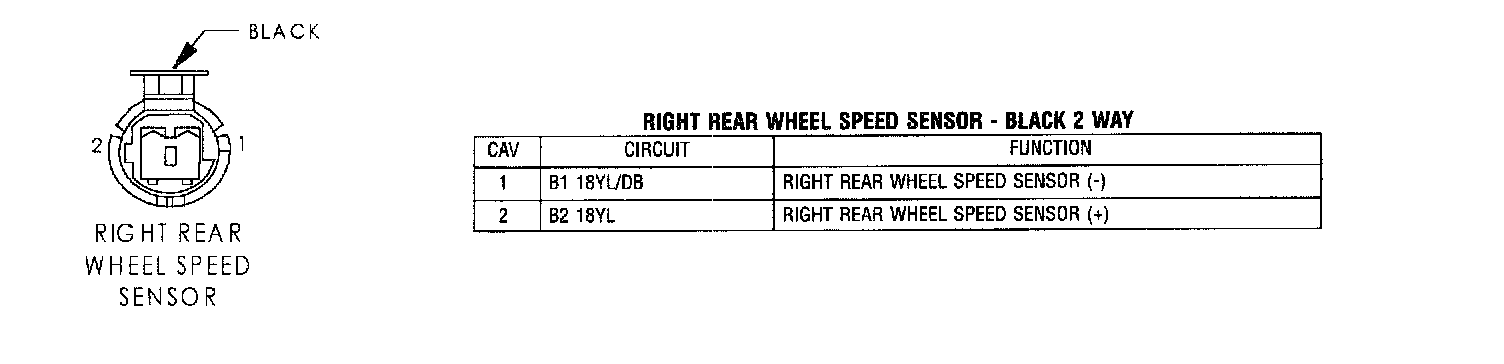

Right Rear Wheel Speed Sensor - Black 2 Way

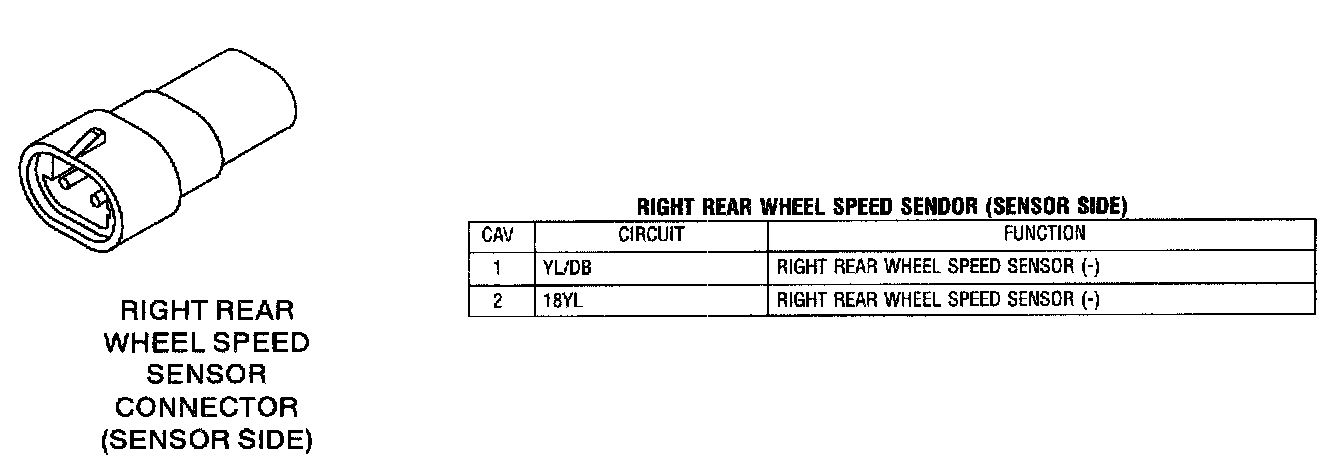

Right Rear Wheel Speed Sensor - (Sensor Side)
